P/N: M39012/80-3006

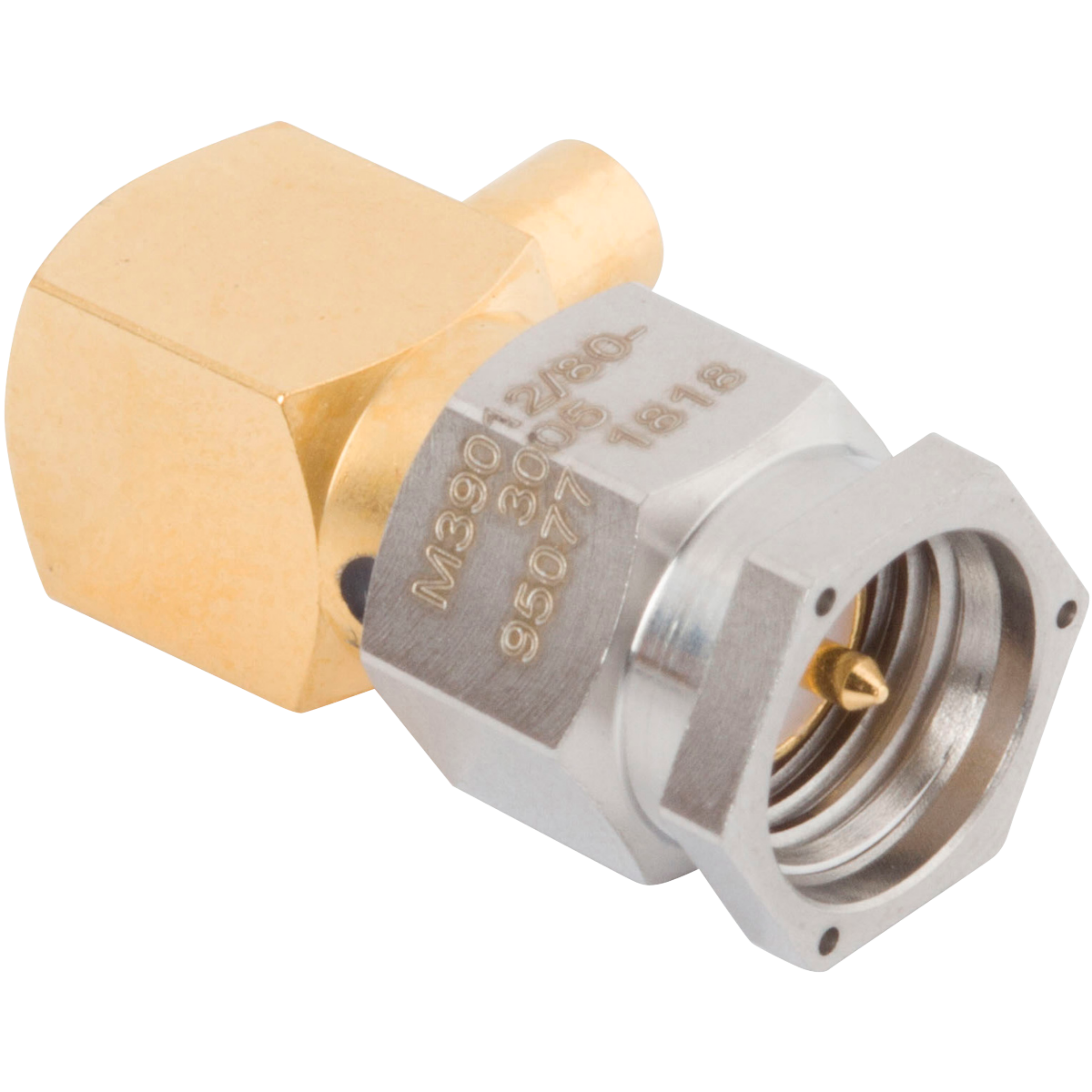

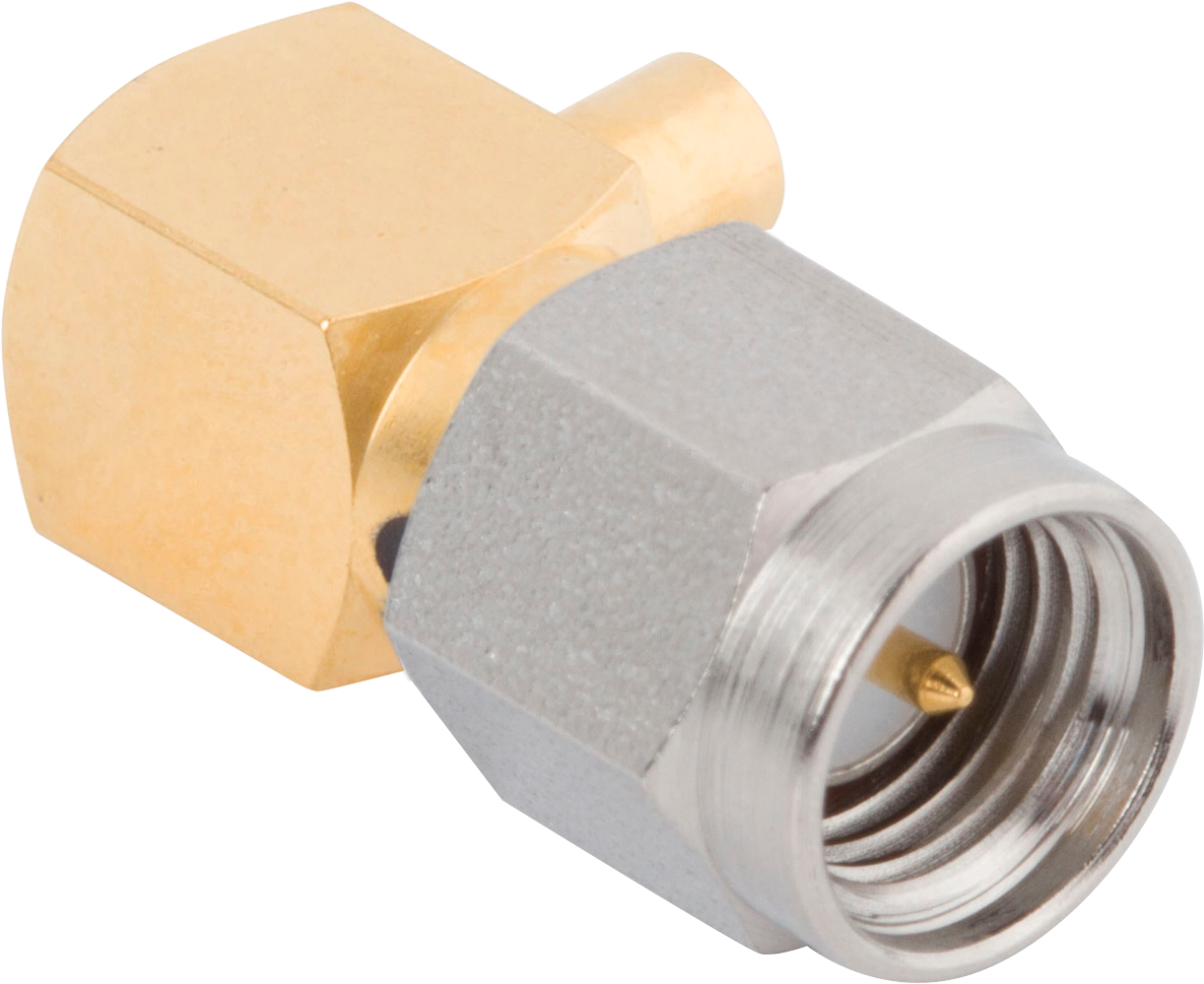

SMA Male Connector, Lockwire Holes, R/A for .141 Cable

In stock at Qty Order
Microwave Components LLC 7
TTI Inc Global Headquarters 6
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Right Angle
Number of Ports Single
Termination Style Solder
Frequency 11 GHz
MIL-SPEC M39012
Impedance 50 ohms
Cable Type 0.140 Flexible Coax
Finish Passivated
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
