P/N: M39012/80-3106

SMA Male Connector, R/A for .141 Cable

In stock at Qty Order
Mouser Electronics 80
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/80-3005

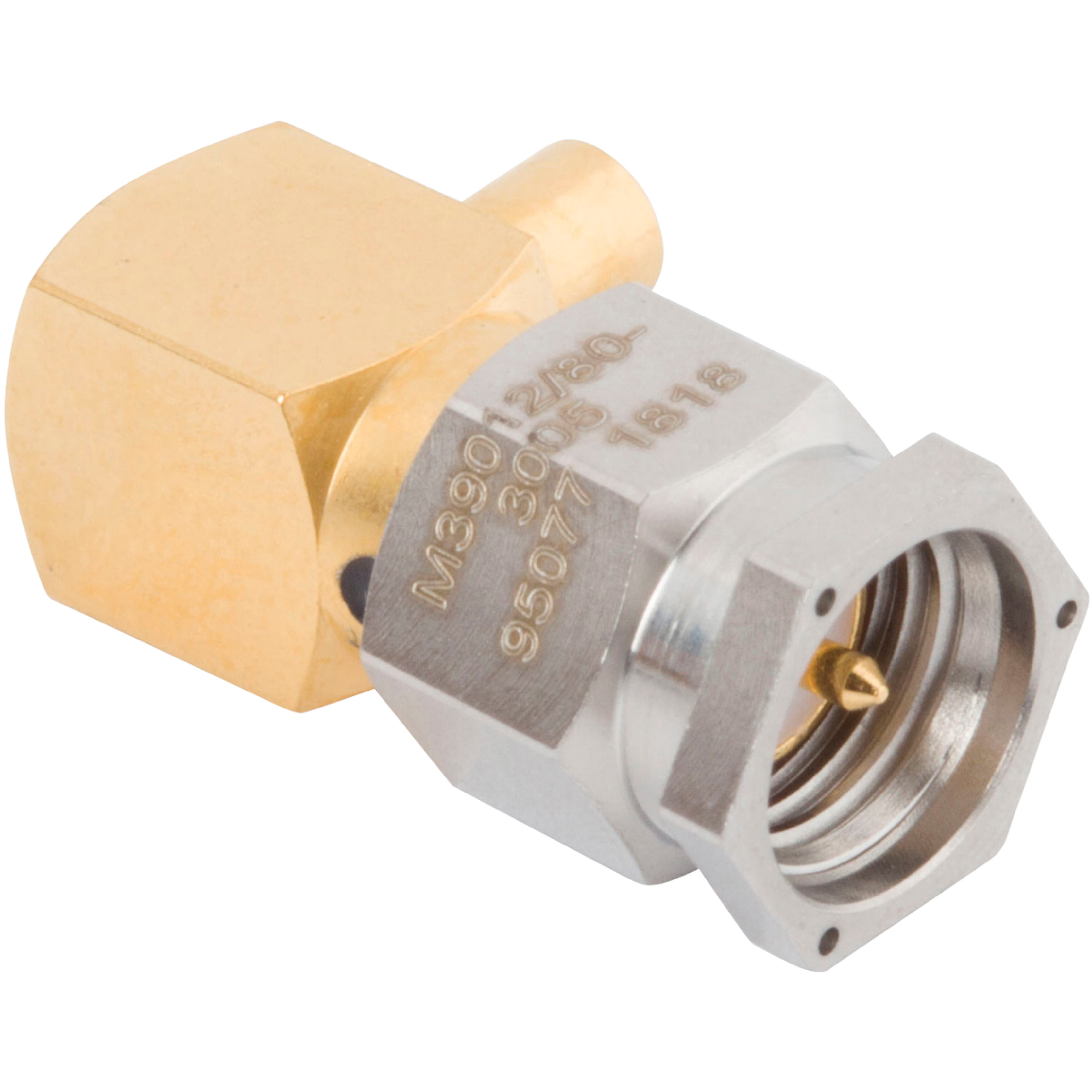

SMA Male Connector, Lockwire Holes, R/A for .085 Cable
