P/N: M39012/56-3006

SMA Male Connector, Lockwire Holes, R/A for RG-178 Cable

In stock at Qty Order
TTI Inc Global Headquarters 166
Microwave Components LLC 76
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Number of Ports Single
Frequency 11 GHz
Termination Style Crimp
Finish Passivated
MIL-SPEC M39012
Cable Type RG-178
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Number of Ports Single
Frequency 11 GHz
Termination Style Crimp
Finish Passivated
MIL-SPEC M39012
Cable Type RG-178
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3007

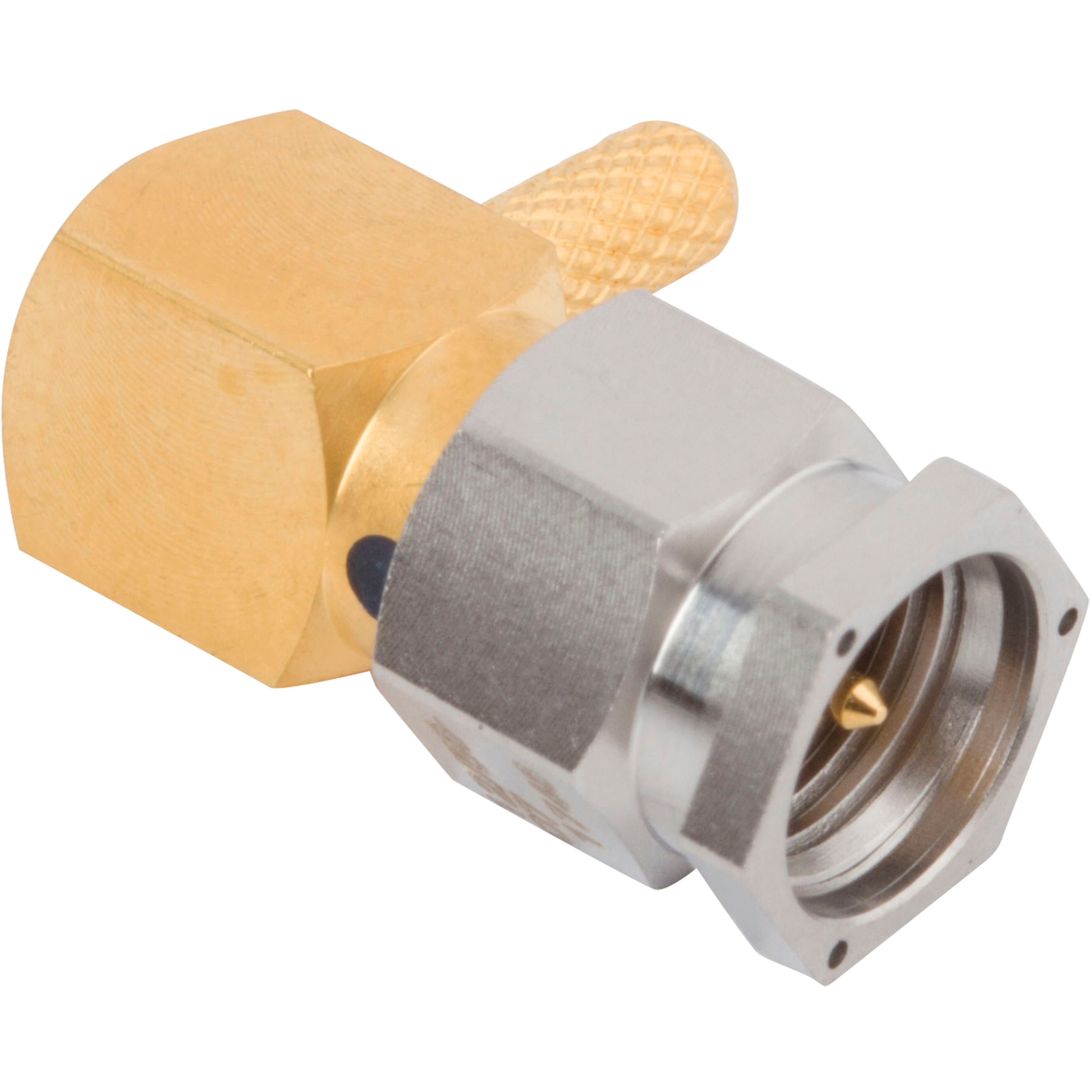

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

Available Inventory: 533
M39012/56-3007
SMA Connectors M39012/56-3007
Datasheet
Part #   M39012/56-3026

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

Available Inventory: 385
M39012/56-3026
SMA Connectors M39012/56-3026
Datasheet
Part #   M39012/56-3028

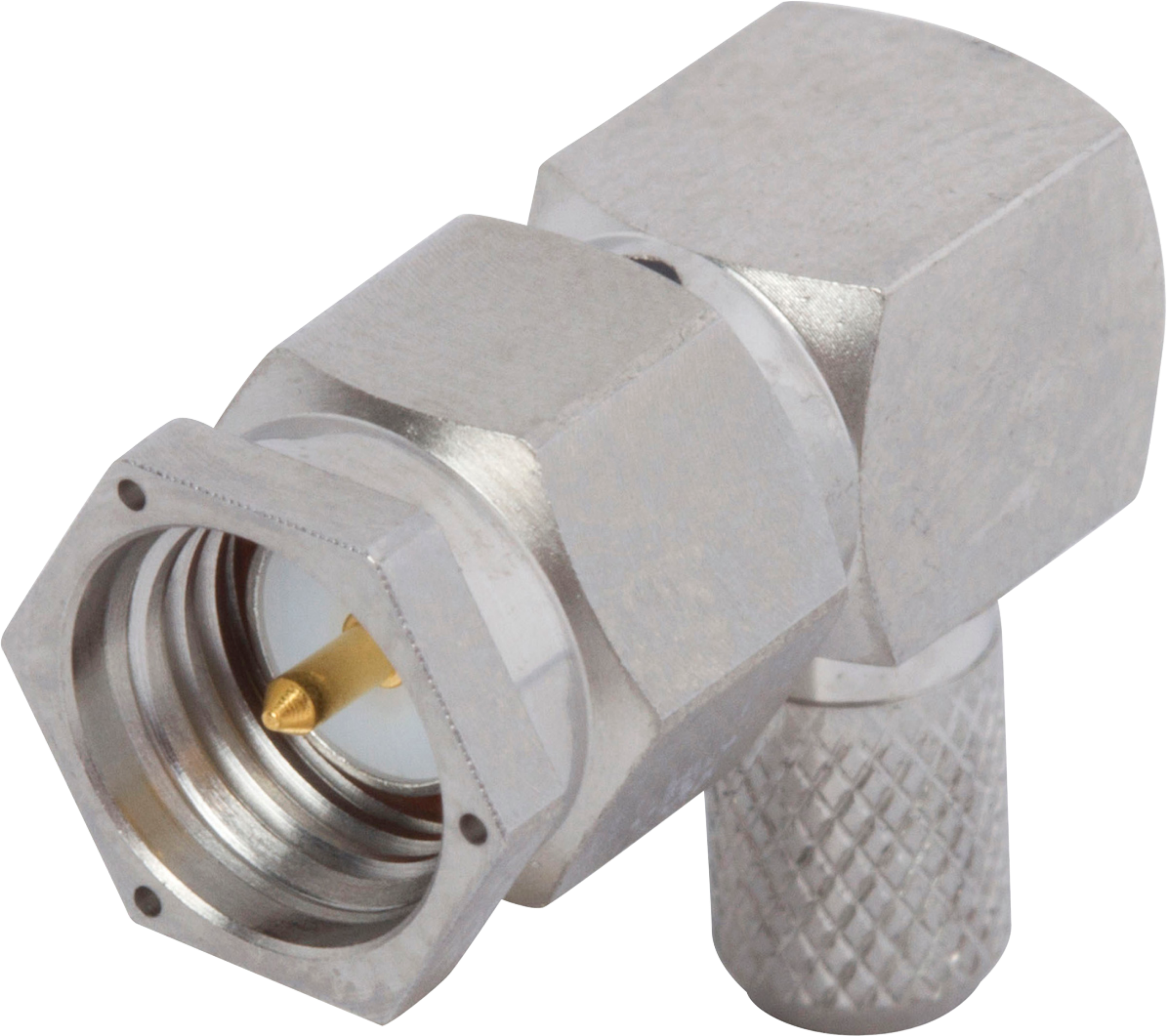

SMA Male Connector, Lockwire Holes, R/A for RG-58 Cable
