P/N: M39012/56-3028

SMA Male Connector, Lockwire Holes, R/A for RG-58 Cable

In stock at Qty Order
TTI Inc Global Headquarters 650
Microwave Components LLC 437
Electro Enterprises Inc 228
A.E. Petsche Company 199
Mouser Electronics 122
Master Electronics 100
Digi-Key Electronics 81
Farnell 61
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Gender Plug (Male)
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Number of Ports Single
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Gender Plug (Male)
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Number of Ports Single
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   M39012/56-3006

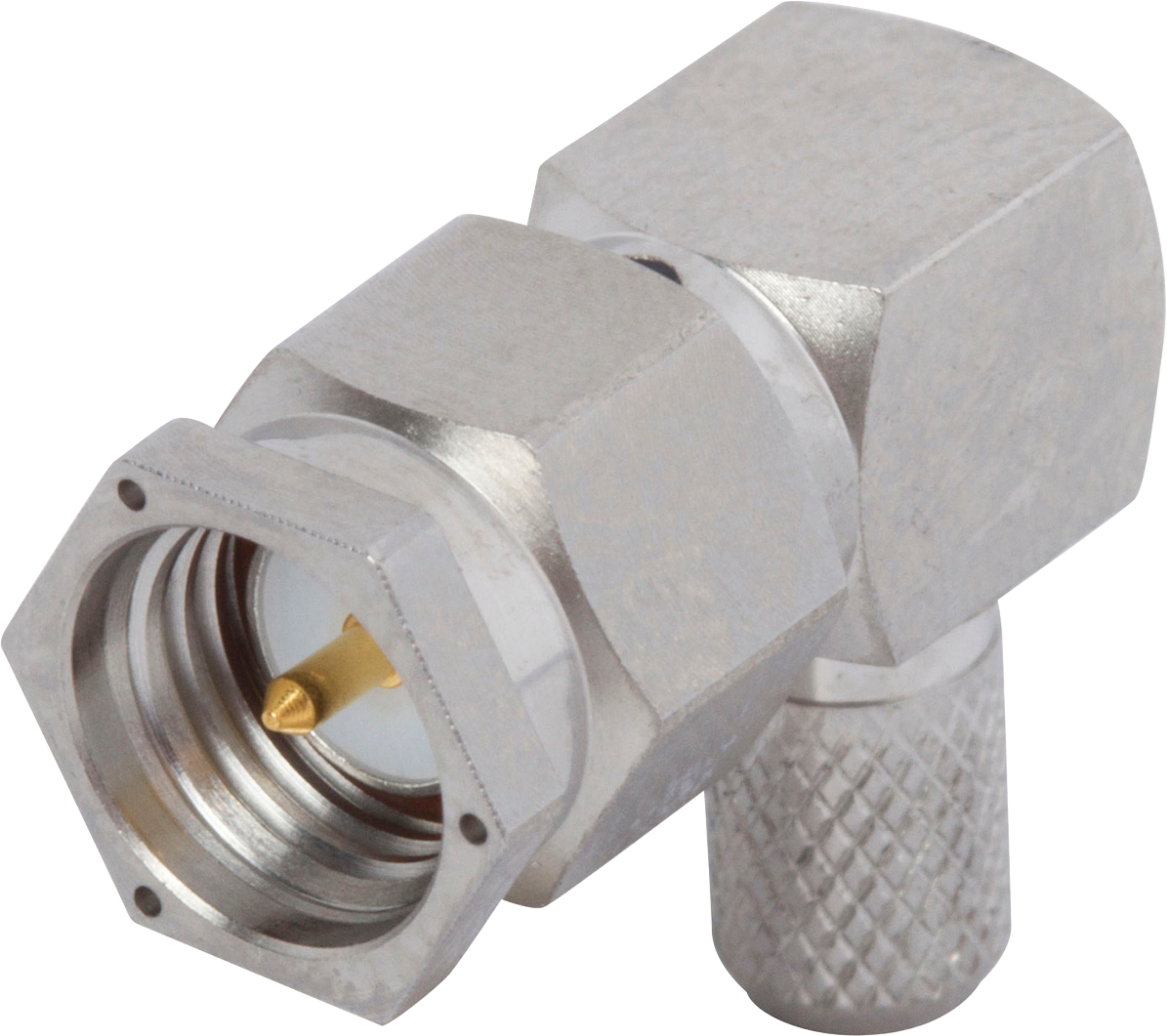

SMA Male Connector, Lockwire Holes, R/A for RG-178 Cable

Available Inventory: 76
M39012/56-3006
SMA Connectors M39012/56-3006
Datasheet
Part #   M39012/56-3007

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

Available Inventory: 533
M39012/56-3007
SMA Connectors M39012/56-3007
Datasheet
Part #   M39012/56-3026

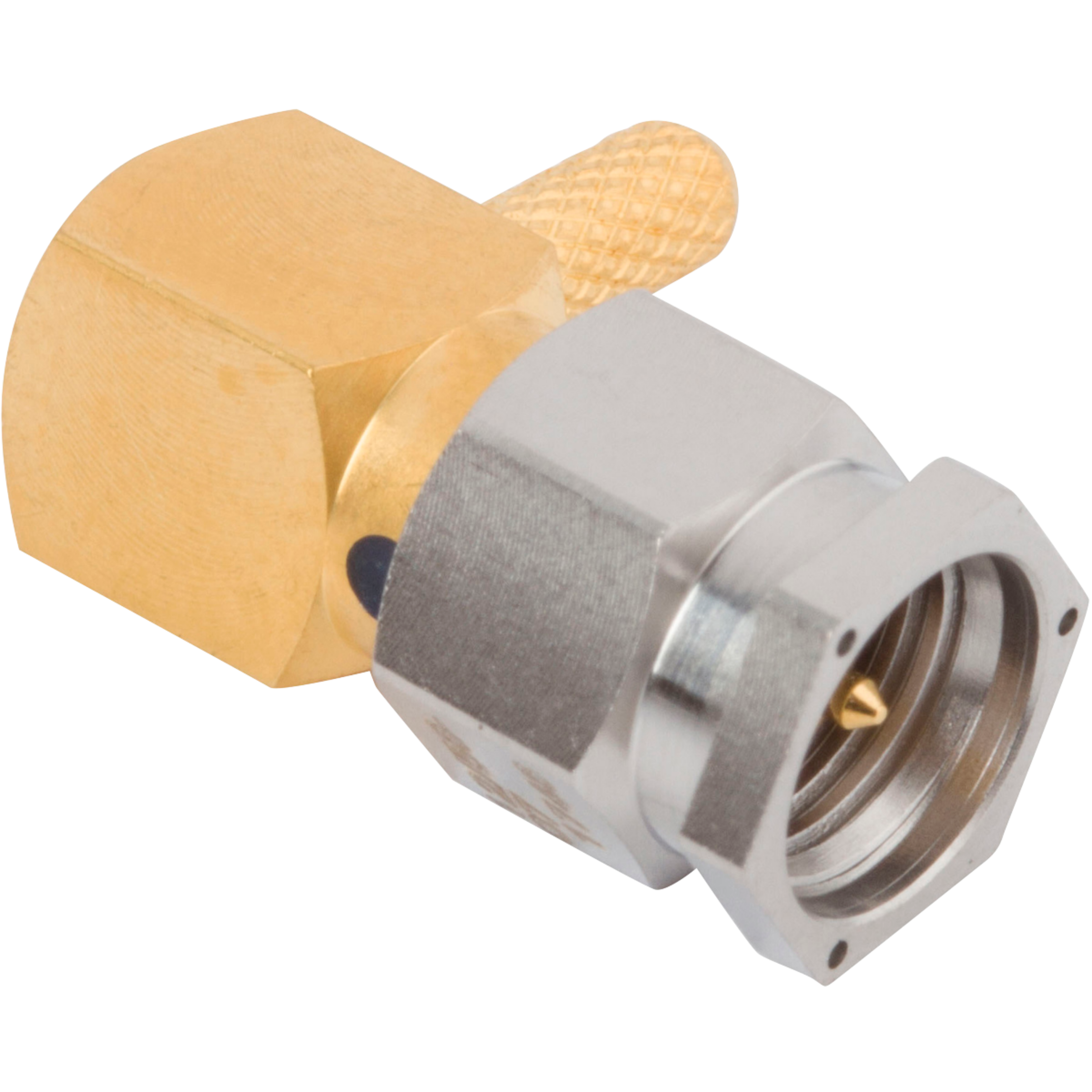

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable
