P/N: M39012/56B3011

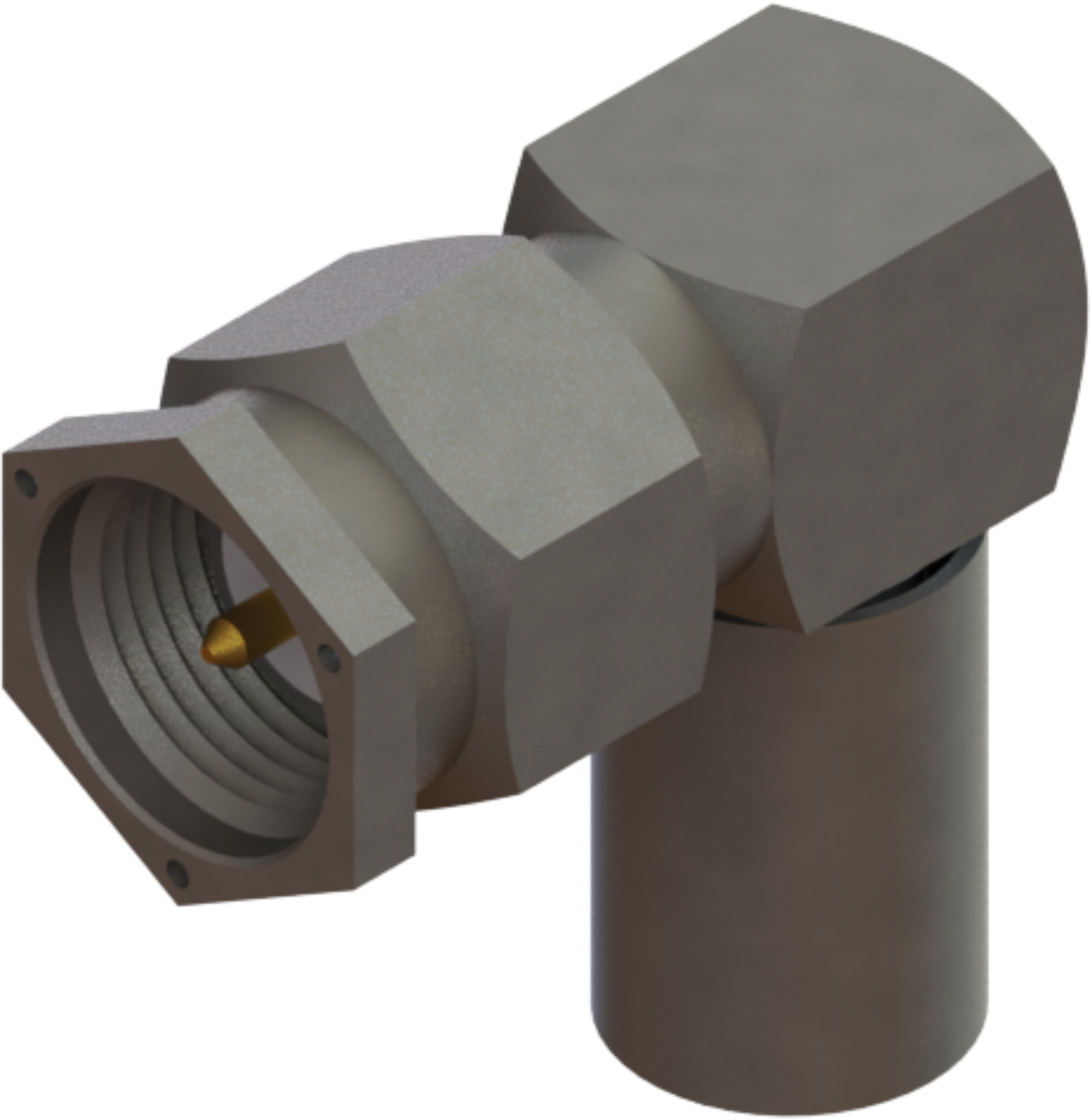

SMA Male Connector, Lockwire Holes, R/A for RG-178 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-178
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-178
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
