P/N: M39012/56B3017

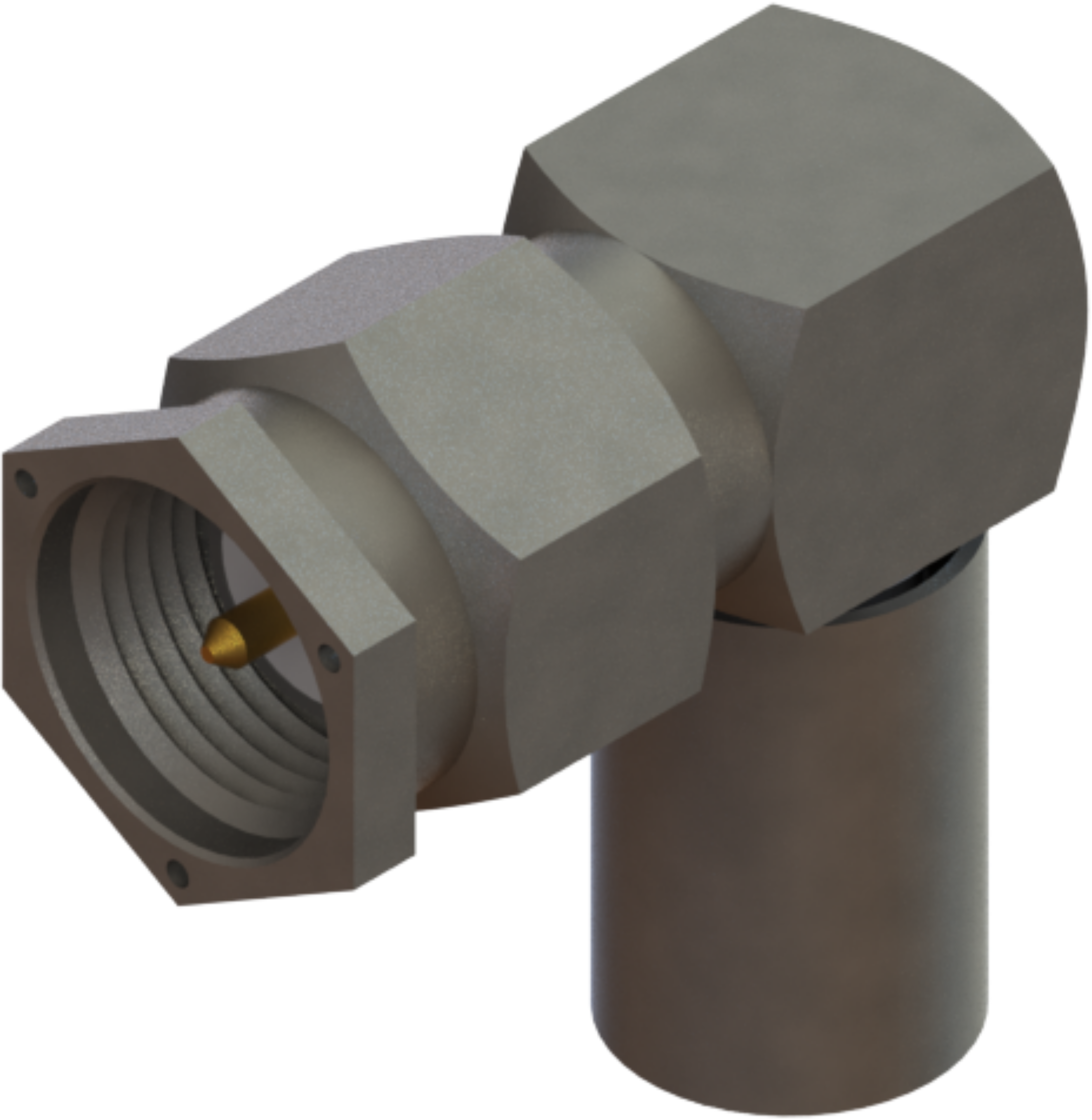

SMA Male Connector, Lockwire Holes, R/A for RG-58 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Frequency 11 GHz
Number of Ports Single
MIL-SPEC M39012
Impedance 50 ohms
Finish Passivated
Cable Type RG-58
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Impedance (Ω) 50
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
