SMA Male Connector, R/A for .085 Cable
P/N: M39012/80-3107

Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Termination Style Solder
Number of Ports Single
Coupling Threaded
MIL-SPEC M39012
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Termination Style Solder
Number of Ports Single
Coupling Threaded
MIL-SPEC M39012
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

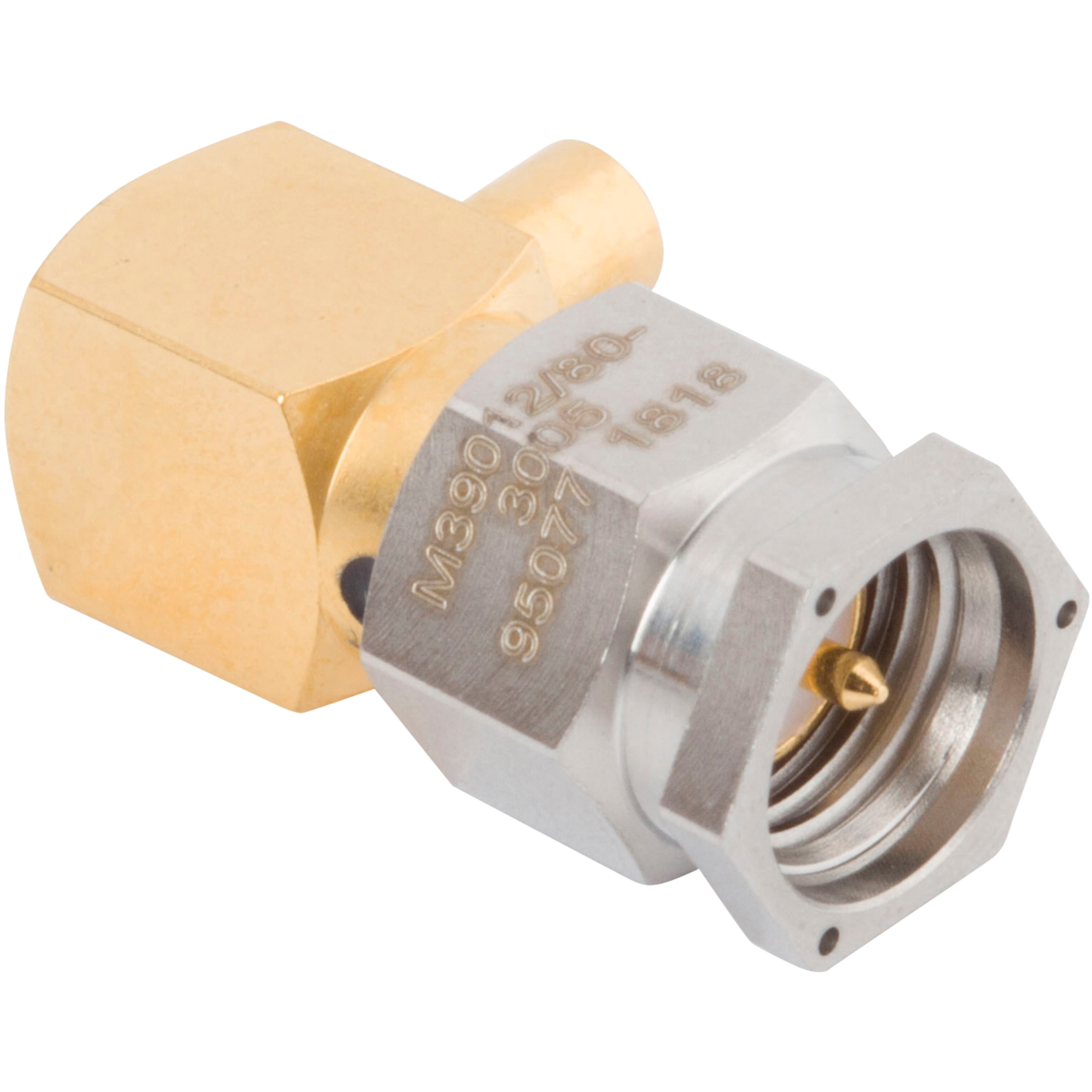

Part #   M39012/80-3008

SMA Male Connector, Lockwire Holes, R/A for .141 Cable

Available Inventory: 104
M39012/80-3008
SMA Connectors M39012/80-3008
Datasheet

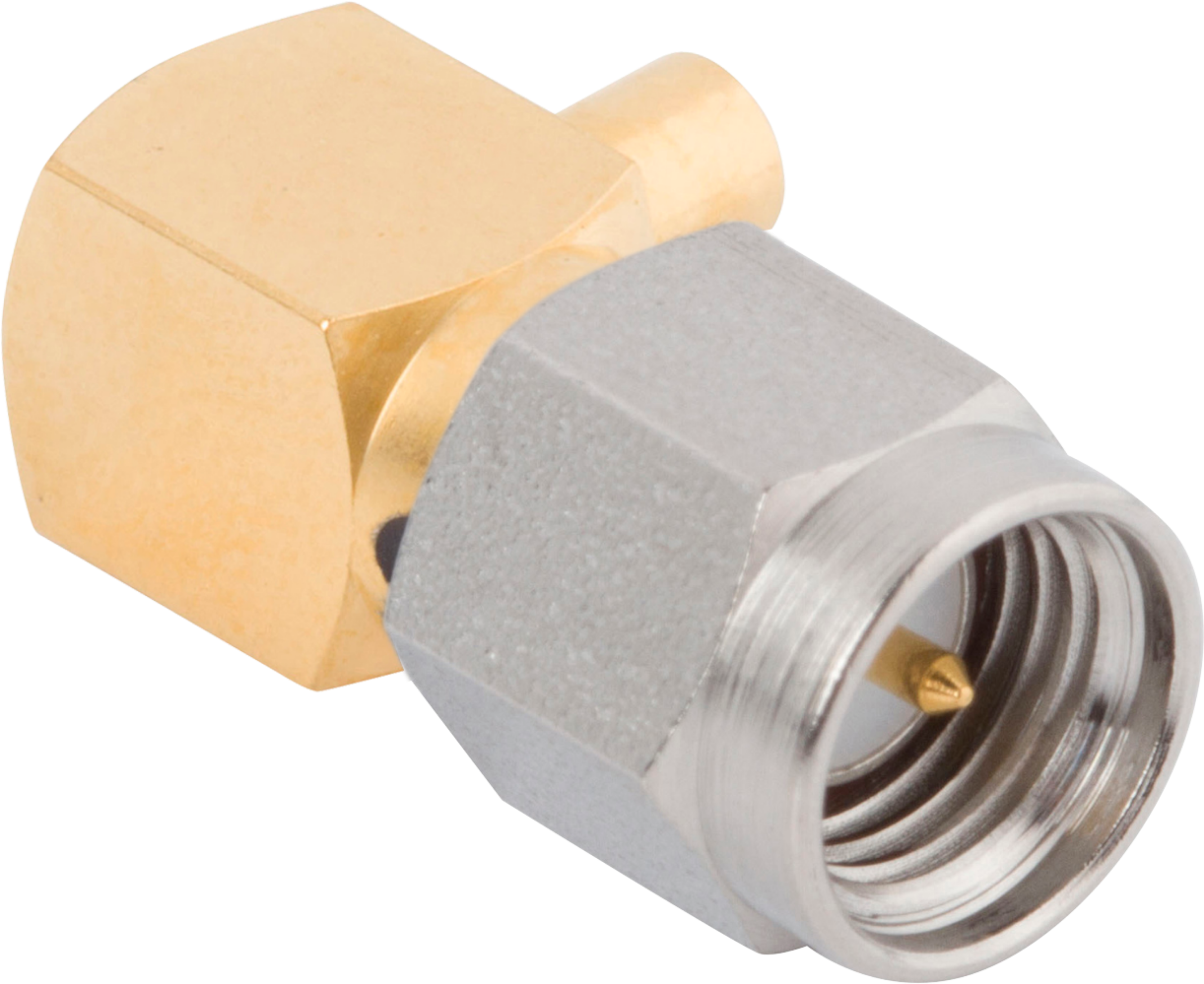

Part #   M39012/80-3106
