P/N: SF2913-6001

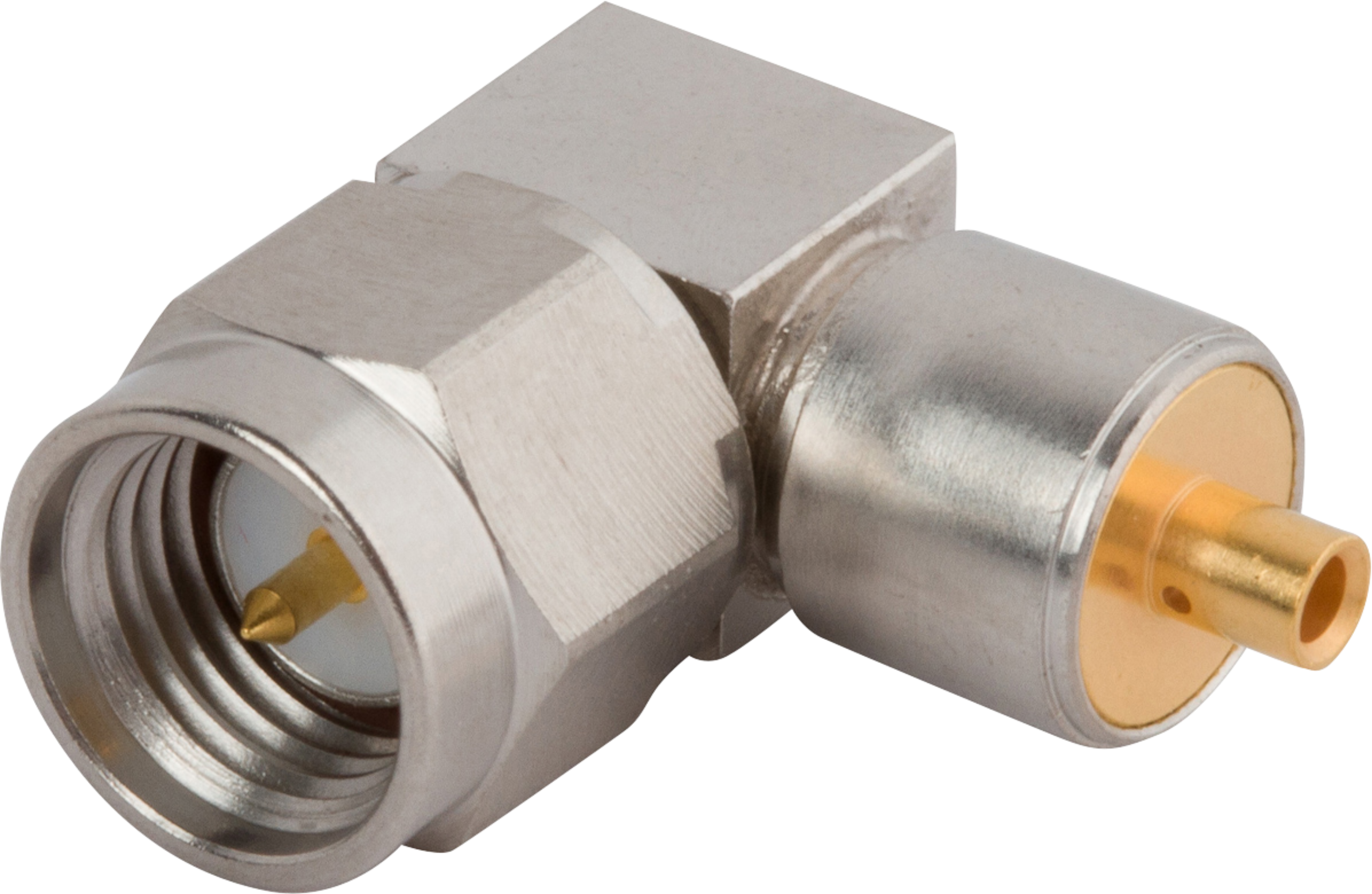

SMA Male Connector, R/A for RG-174 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Finish Passivated
Cable Type RG-174
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Mating Torque 7 - 10 in - lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
