P/N: M39012/56B3119

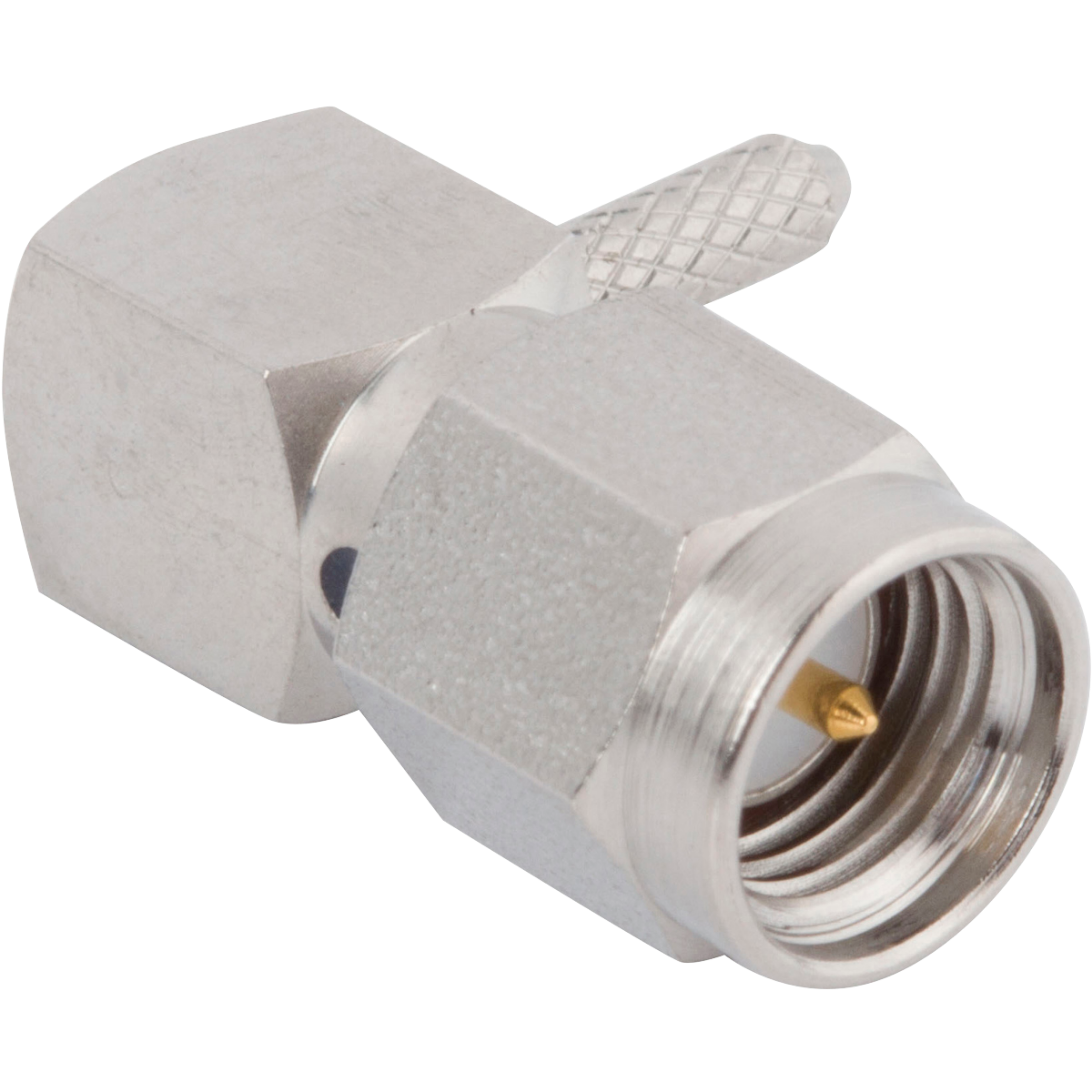

SMA Male Connector, R/A for RG-174 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Finish Passivated
MIL-SPEC M39012
Cable Type RG-174
Electrical
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
