P/N: M39012/56-3106

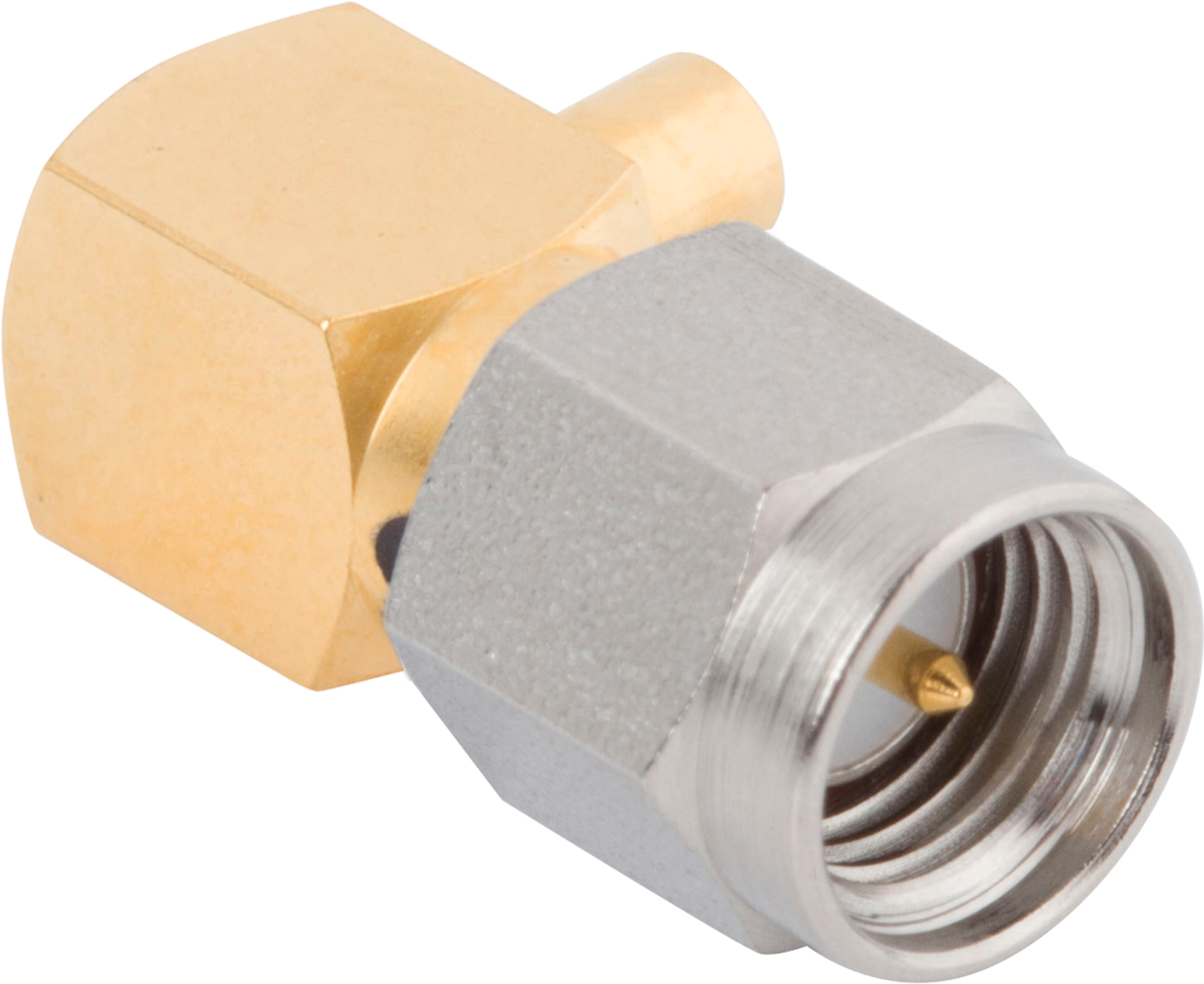

SMA Male Connector, R/A for RG-178 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
MIL-SPEC M39012
Impedance 50 ohms
Cable Type RG-178
Orientation (Body) Right Angle
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
MIL-SPEC M39012
Impedance 50 ohms
Cable Type RG-178
Orientation (Body) Right Angle
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3030

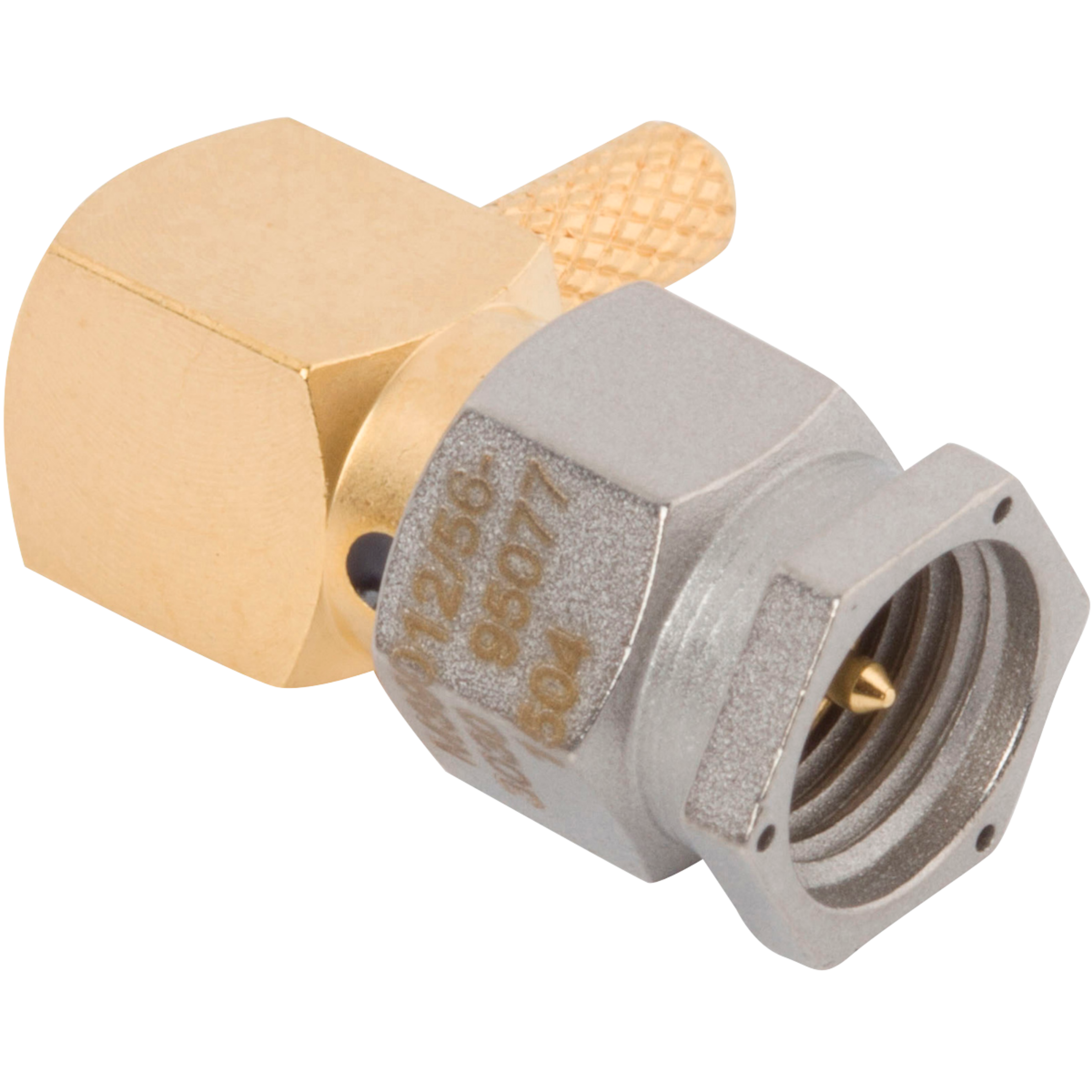

SMA Male Connector, Lockwire Holes, R/A for M17/152-00001 Cable
