SMA Male Connector, Lockwire Holes, R/A for M17/152-00001 Cable
P/N: M39012/56-3030

Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Finish Passivated
MIL-SPEC M39012
Cable Type M17/152-00001
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:05:42 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Finish Passivated
MIL-SPEC M39012
Cable Type M17/152-00001
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3007

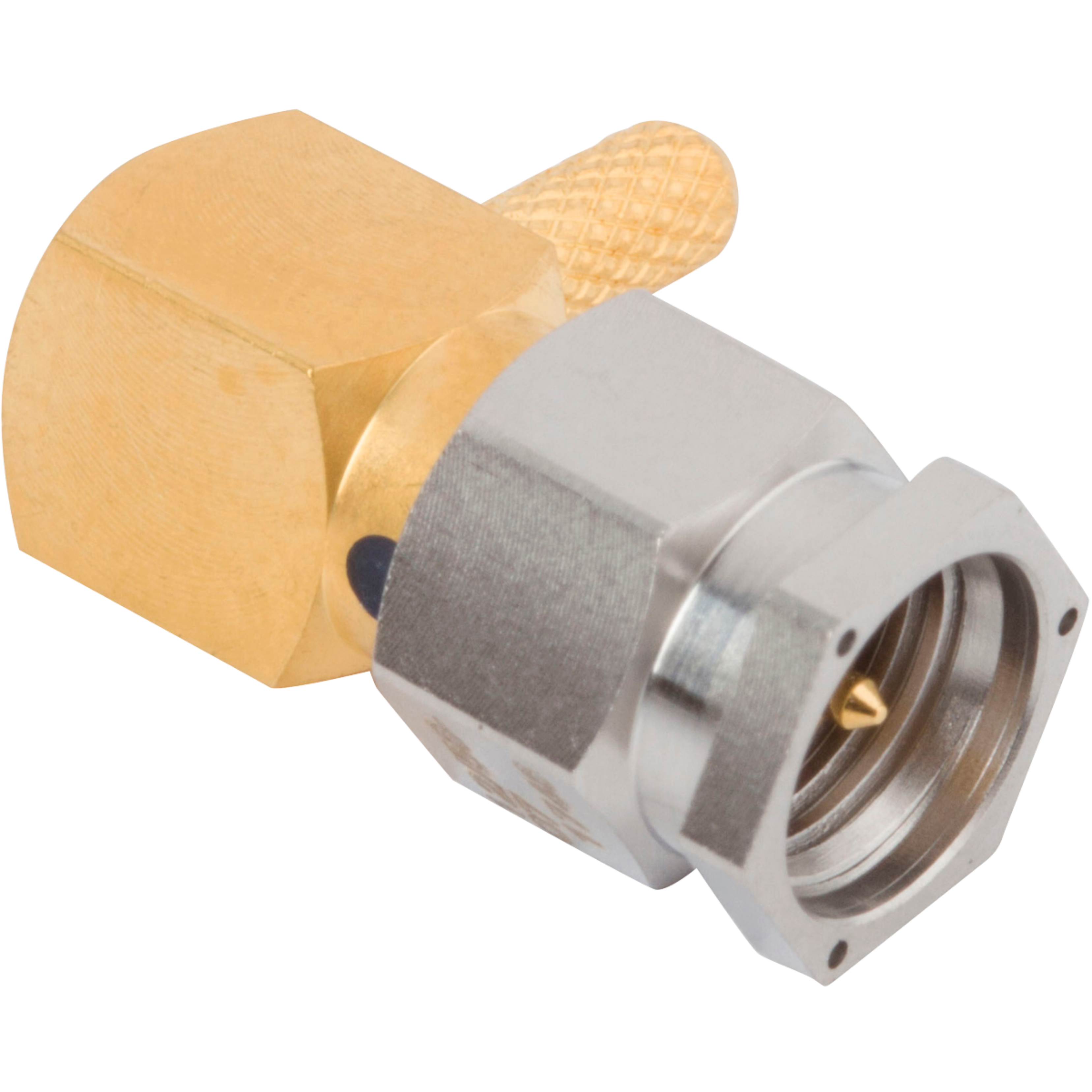

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

Available Inventory: 327
M39012/56-3007
SMA Connectors M39012/56-3007
Datasheet
Part #   M39012/56-3026

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

Available Inventory: 939
M39012/56-3026
SMA Connectors M39012/56-3026
Datasheet
Part #   M39012/56-3028

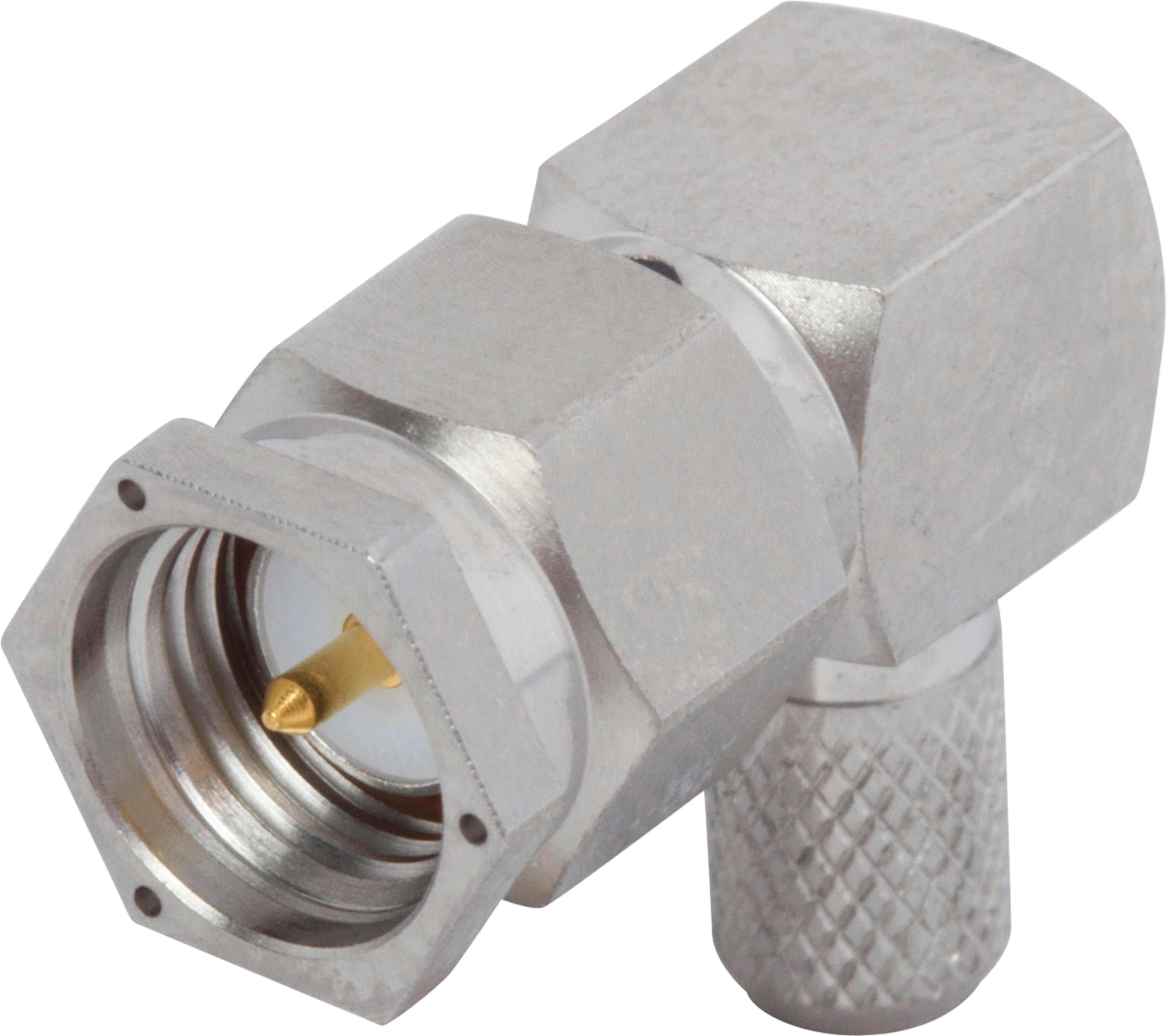

SMA Male Connector, Lockwire Holes, R/A for RG-58 Cable
