P/N: 7029-3245

SMA Male R/A to SMPM Female 12" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 25
Newark 25
Farnell 25
Digi-Key Electronics 21
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Frequency 18 GHz
Termination Style Solder
Impedance 50 ohms
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
RF Series 2 SMPM
Cable Length 12"
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Frequency 18 GHz
Termination Style Solder
Impedance 50 ohms
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
RF Series 2 SMPM
Cable Length 12"
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-3244

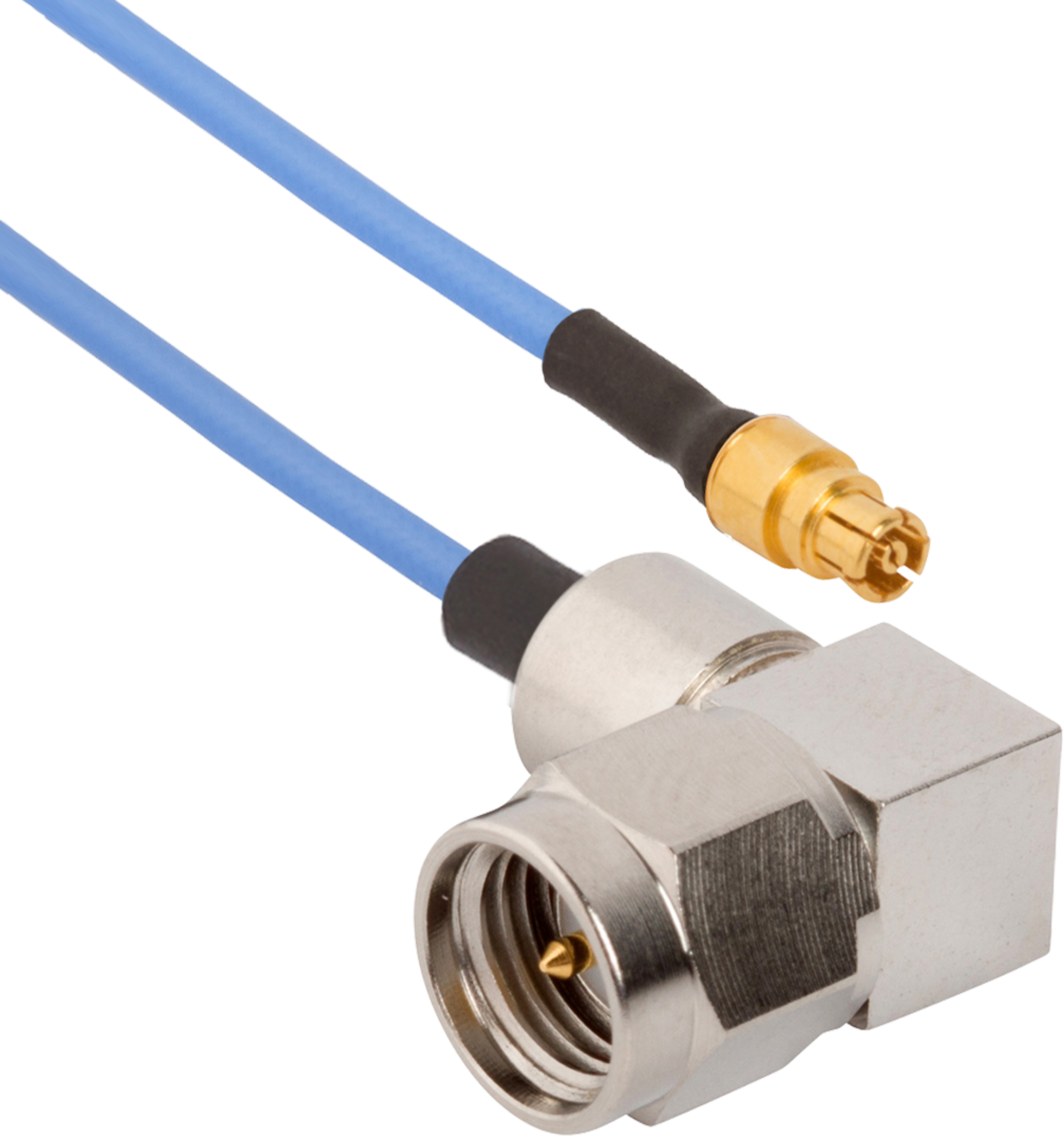

SMA Male R/A to SMPM Female 6" Cable Assembly for .047 Cable

Available Inventory: 92
7029-3244
SMA Cable Assemblies 7029-3244
Datasheet
Part #   7029-3246

SMA Male R/A to SMPM Female 6" Cable Assembly for .085 Cable

Available Inventory: 74
7029-3246
SMA Cable Assemblies 7029-3246
Datasheet
Part #   7029-3247

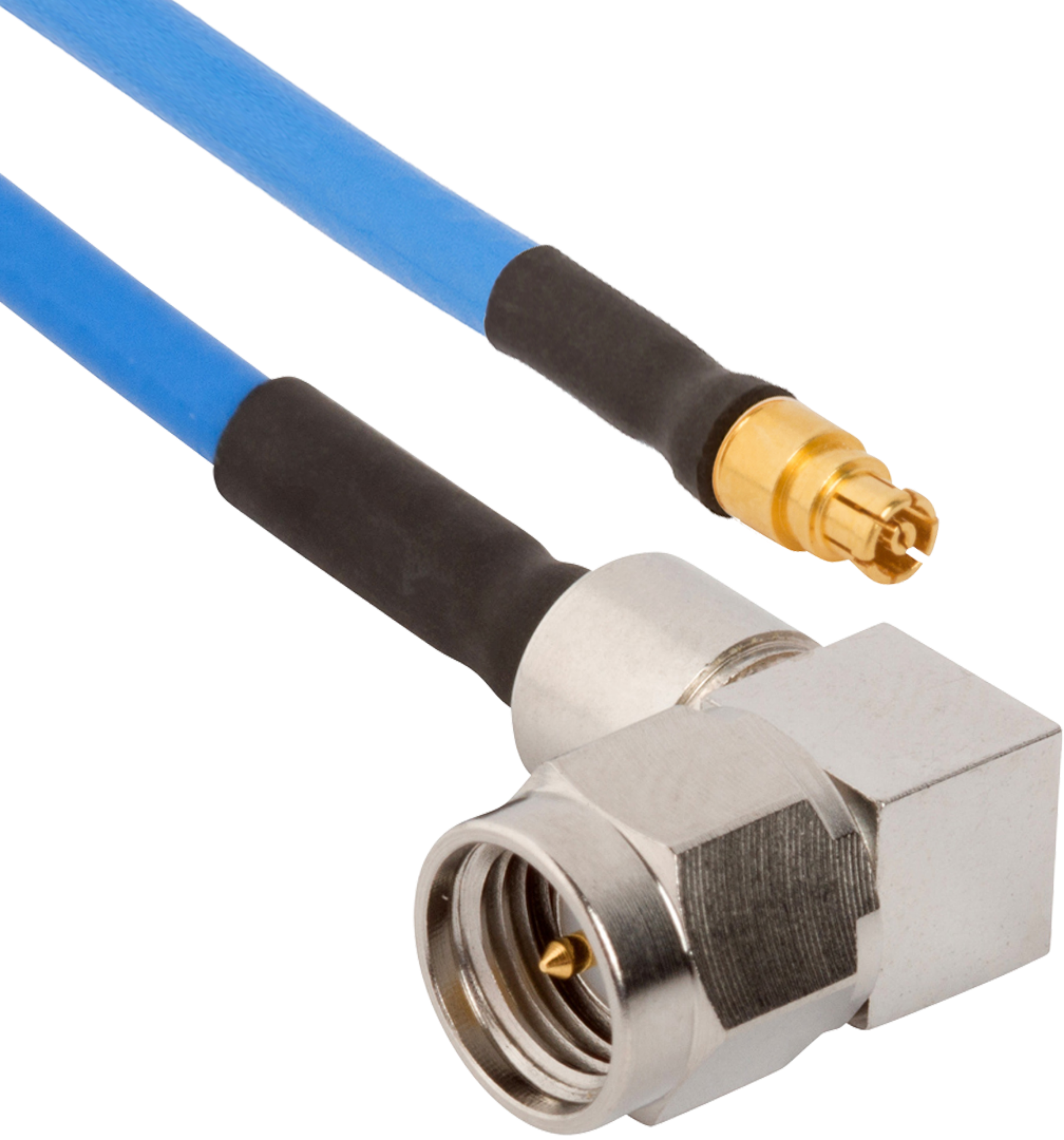

SMA Male R/A to SMPM Female 12" Cable Assembly for .085 Cable
