P/N: SF2911-60973

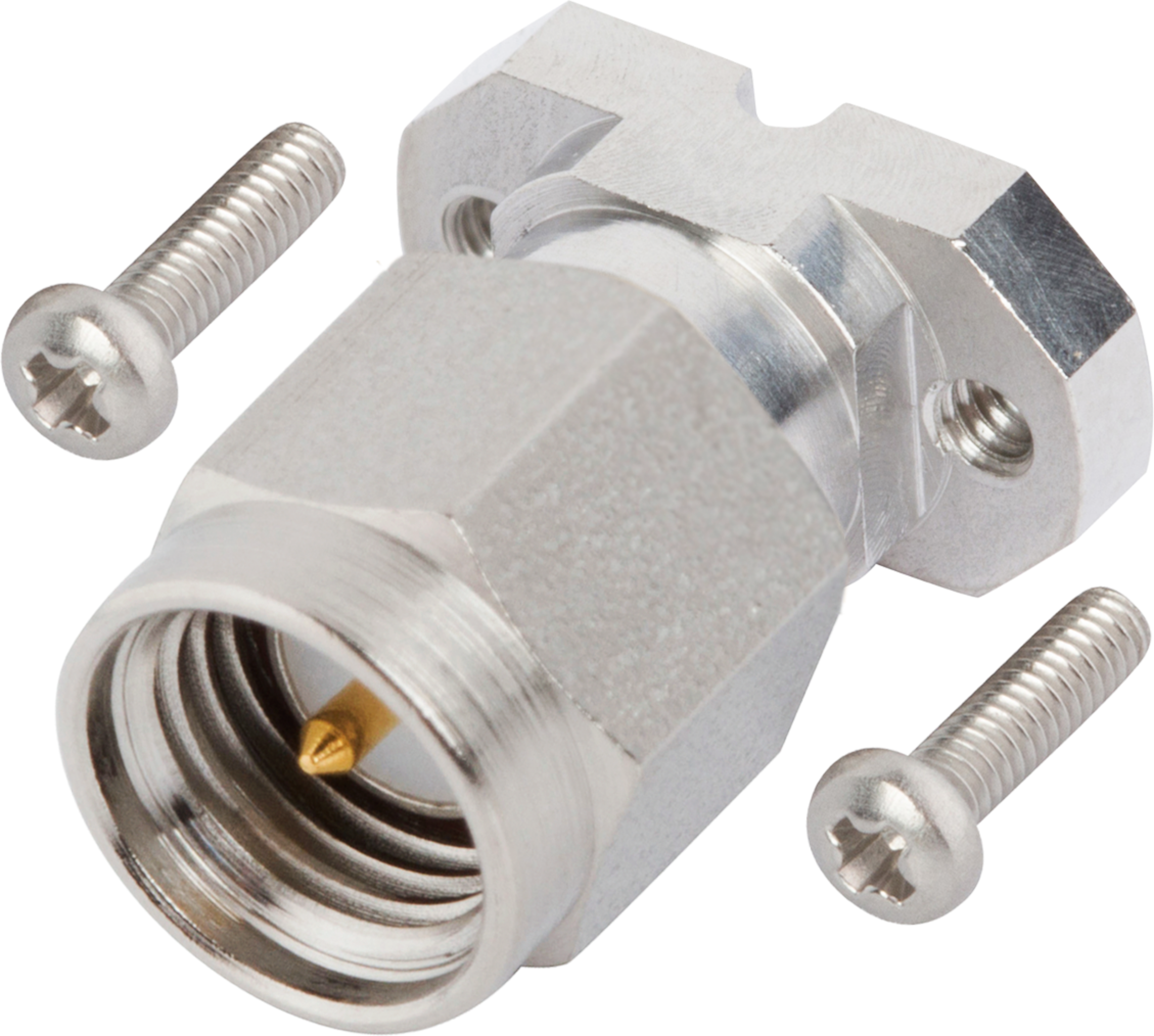

SMA Male Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 100
Farnell 100
Mouser Electronics 84
Products specifications
Attribute name Attribute value
RF Series SMA
Family Solderless
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder-free
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Impedance 50 ohms
Finish Passivated
Frequency 26.5 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
