P/N: SF2911-60973-2S

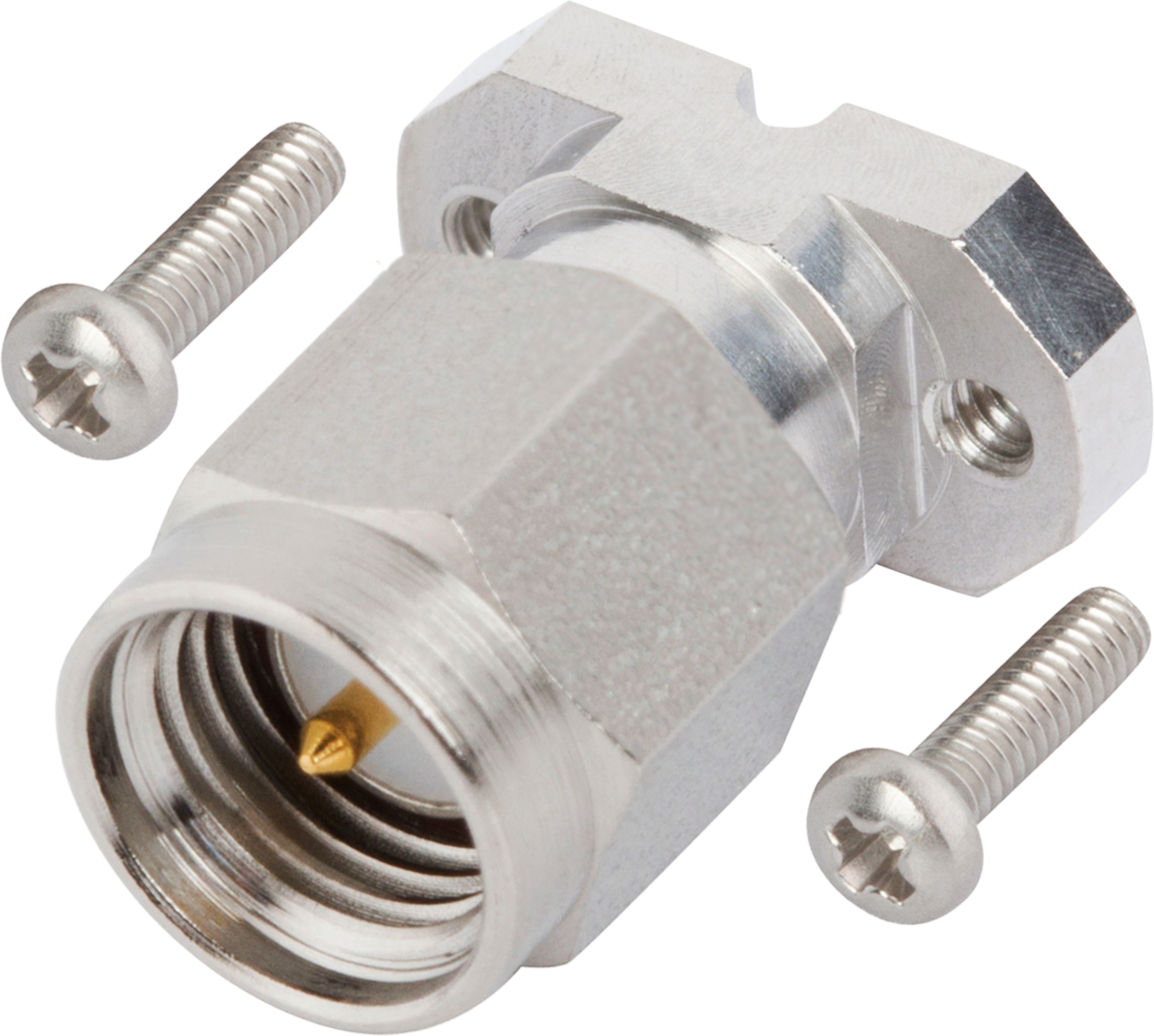

SMA Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Mouser Electronics 100
Farnell 89
Products specifications
Attribute name Attribute value
Family Solderless
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Frequency 18 GHz
Body Style 2 Hole
Impedance 50 ohms
Finish Passivated
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
