P/N: 7012-1302

SMP Female QB to SMA Male 12" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 25
Digi-Key Electronics 3
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Impedance 50 ohms
RF Series 2 SMA
Frequency 18 GHz
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Impedance 50 ohms
RF Series 2 SMA
Frequency 18 GHz
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   7012-1084

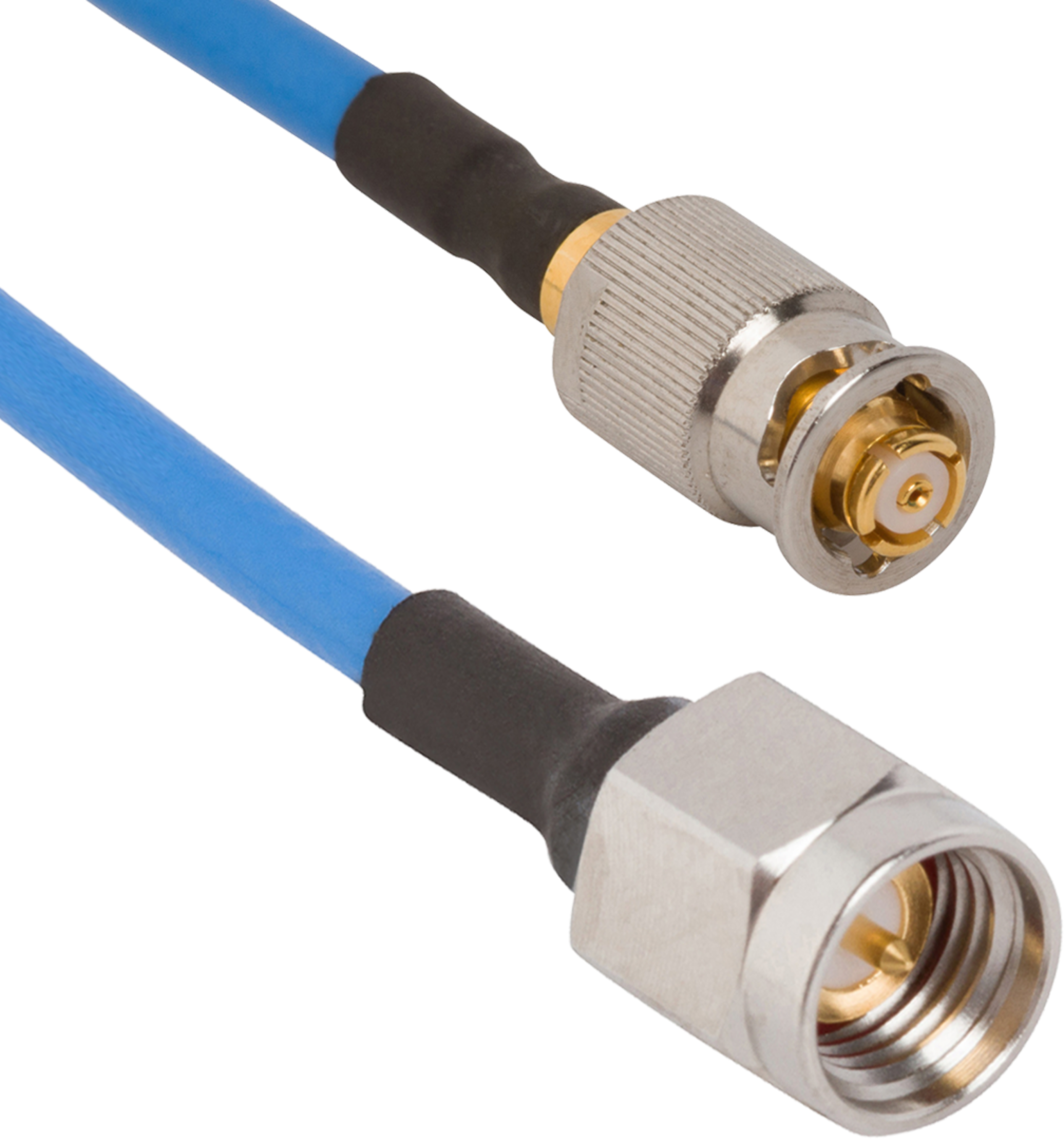

SMP Female QB to SMA Male 12" Cable Assembly for .085 Cable

Available Inventory: 40
7012-1084
SMP Cable Assemblies 7012-1084
Datasheet
Part #   7012-1085

SMP Female QB to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 88
7012-1085
SMP Cable Assemblies 7012-1085
Datasheet
Part #   7012-1086

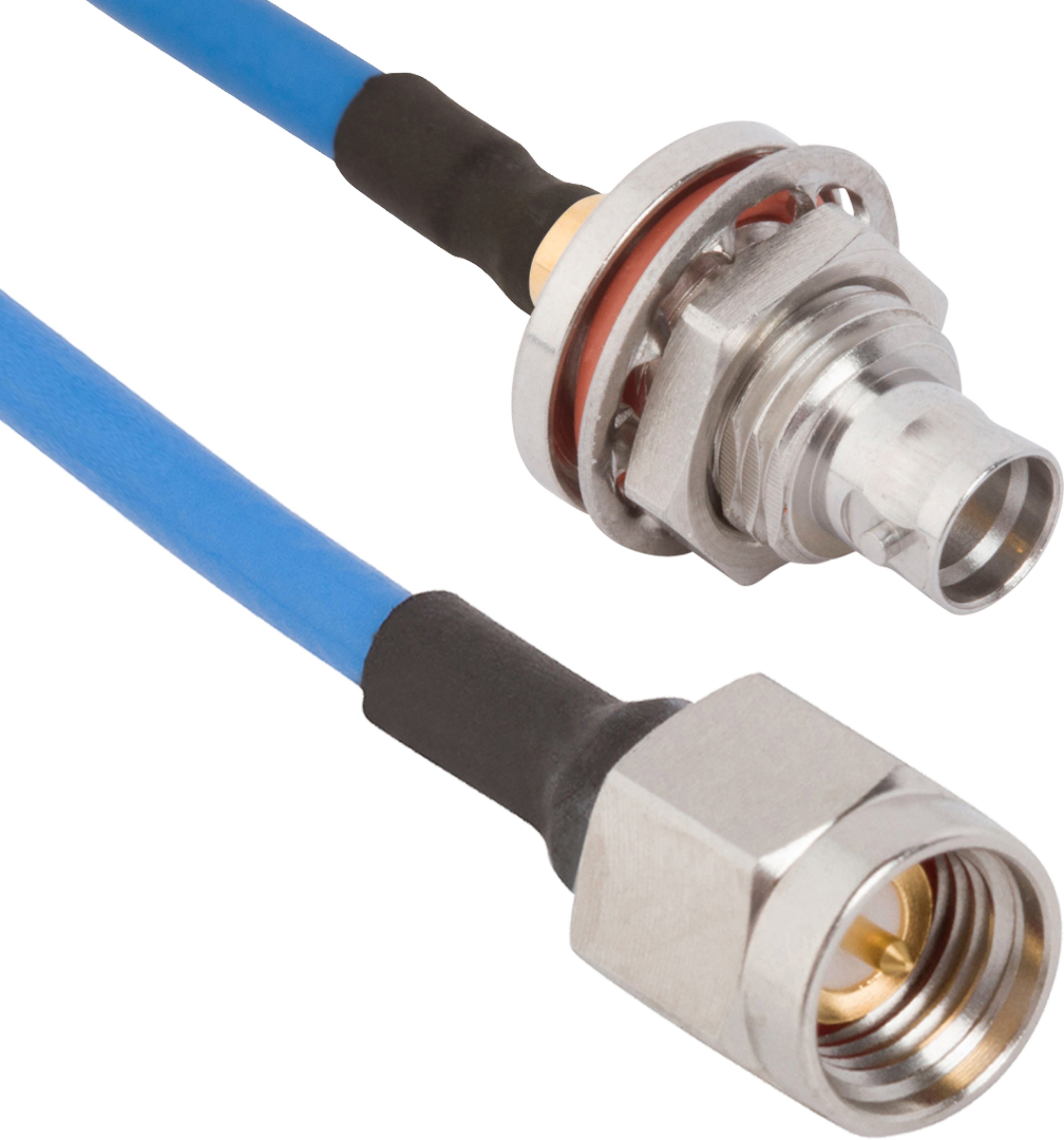

SMP Male QB Bulkhead to SMA Male 6" Cable Asssembly for .085 Cable"
