SMP Female R/A to SMA Male 3" Cable Assembly for .047 SuperFlex Cable
P/N: 7012-2006

In stock at Qty Order
Mouser Electronics 10 On Order
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMP
Cable Length 3"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMP
Cable Length 3"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7777

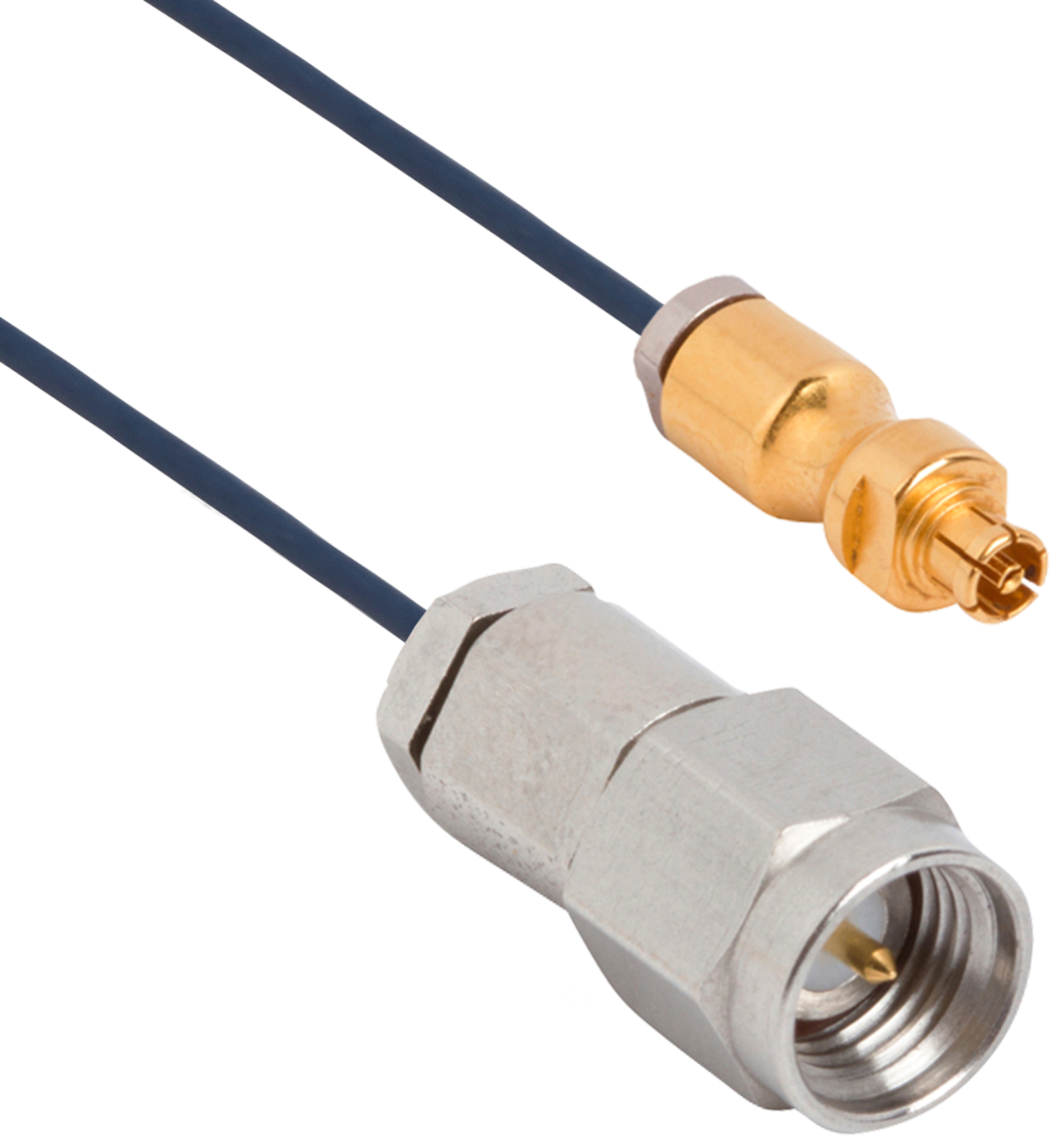

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 44
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet
Part #   7029-3437

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 90
7029-3437
SMA Cable Assemblies 7029-3437
Datasheet
Part #   7029-3436

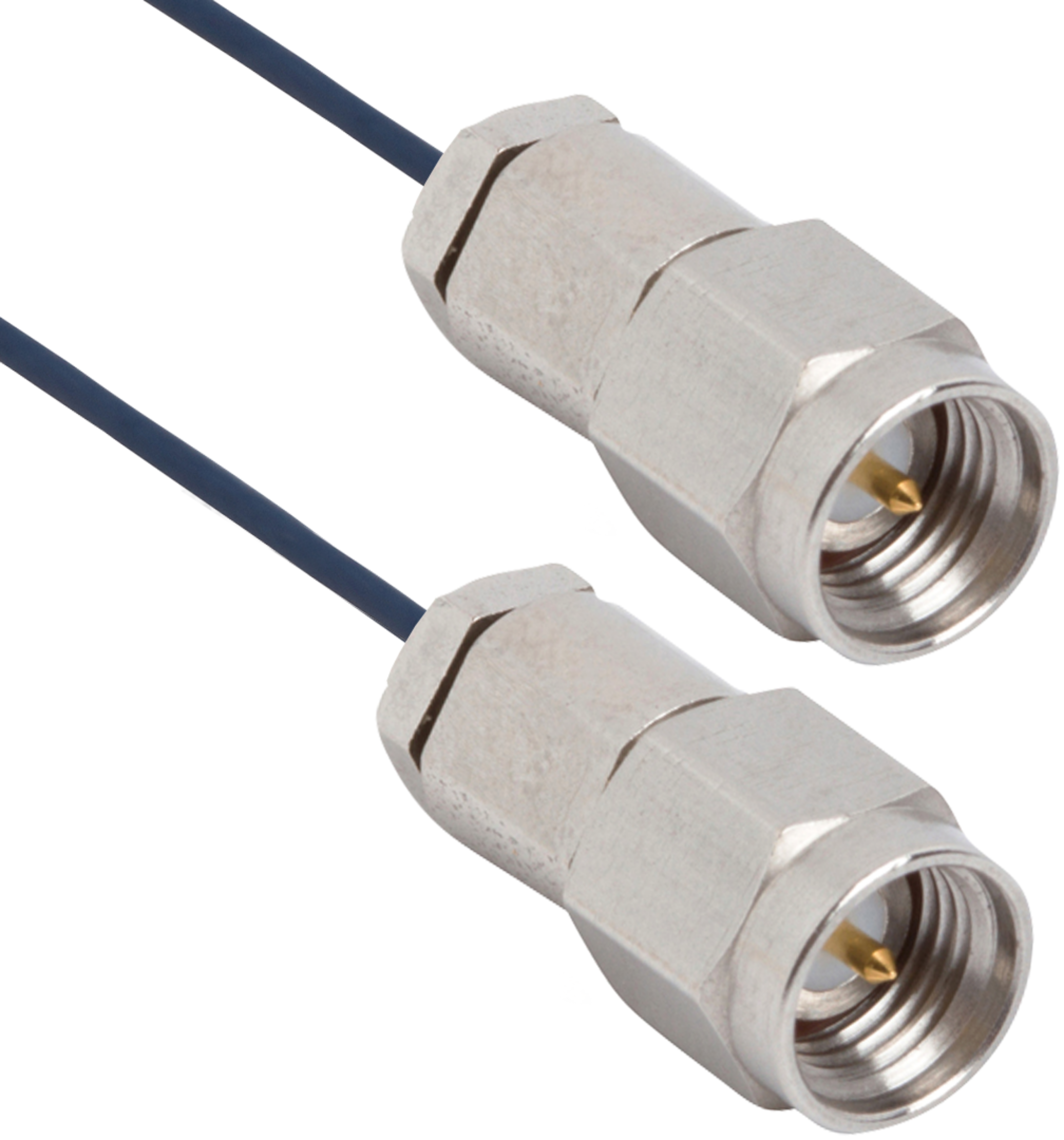

SMA Male to SMA Male 12" Cable Assembly for .047 SuperFlex Cable
