P/N: 7012-1328

SMP Female R/A to SMA Male R/A 12" Cable Assembly for .085 Cable"

In stock at Qty Order
Digi-Key Electronics 593
Farnell 108
Mouser Electronics 78
Newark 65
TTI Inc Global Headquarters 50
Master Electronics 50
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Frequency 11 GHz
Coupling Push-on
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Frequency GHz 40 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Frequency 11 GHz
Coupling Push-on
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Frequency GHz 40 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1327

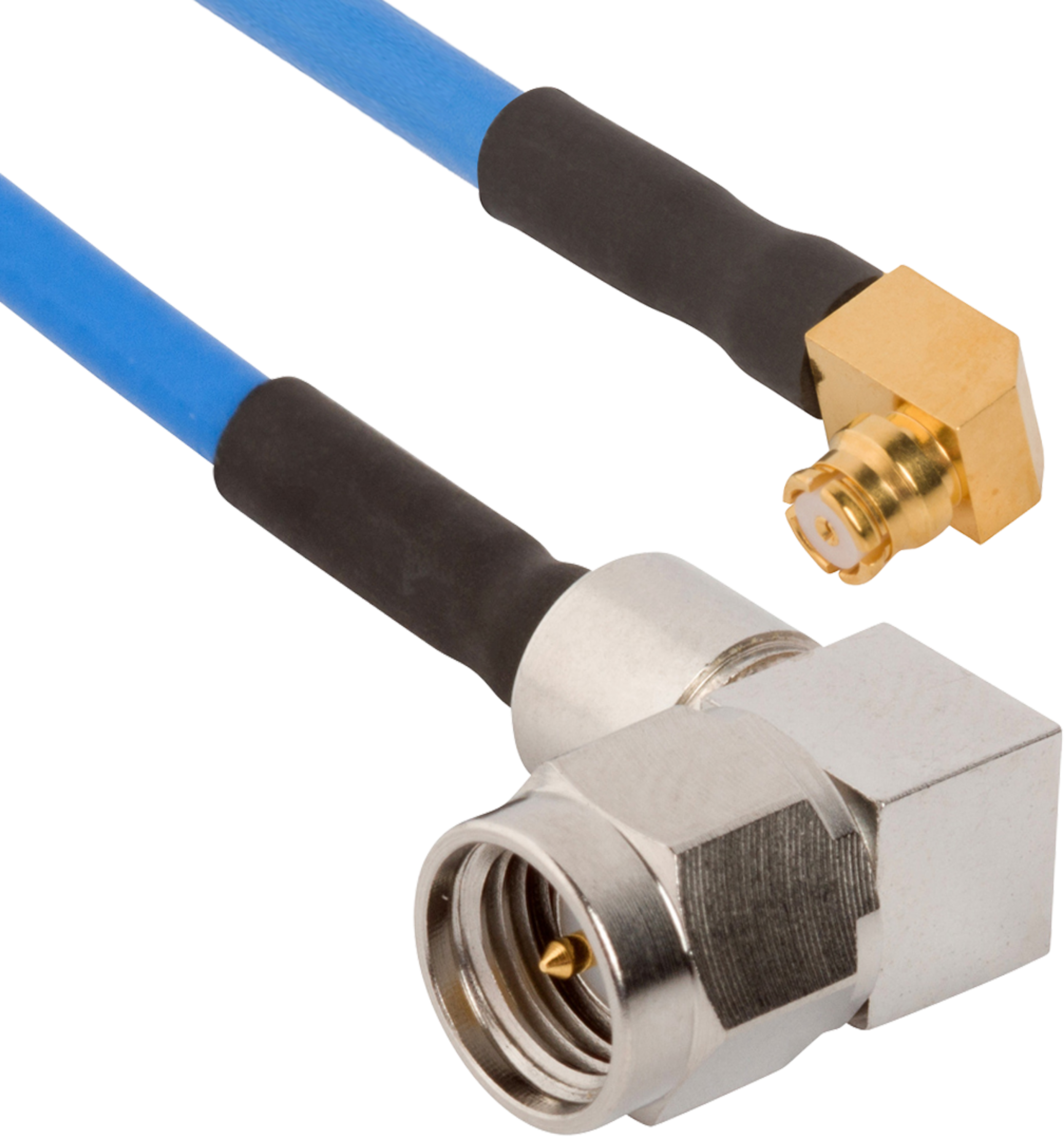

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .085 Cable"

Available Inventory: 766
7012-1327
SMP Cable Assemblies 7012-1327
Datasheet
Part #   7012-1330

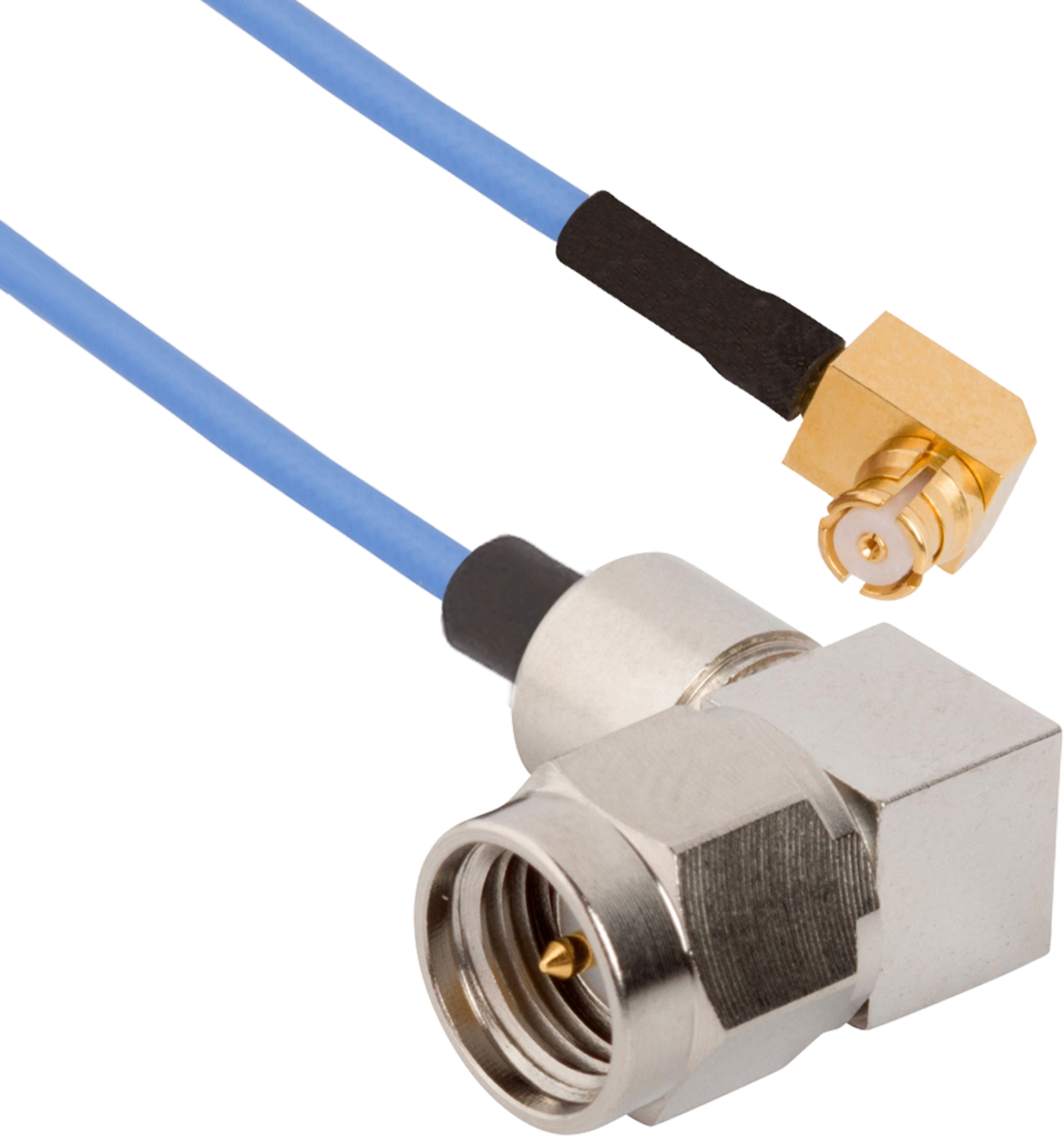

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .047 Cable"
