P/N: 7012-1327

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .085 Cable"

In stock at Qty Order
Digi-Key Electronics 466
Newark 150
Mouser Electronics 62
Master Electronics 50
Heilind Electronics 25
TTI Inc Global Headquarters 13
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Frequency 11 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Frequency 11 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

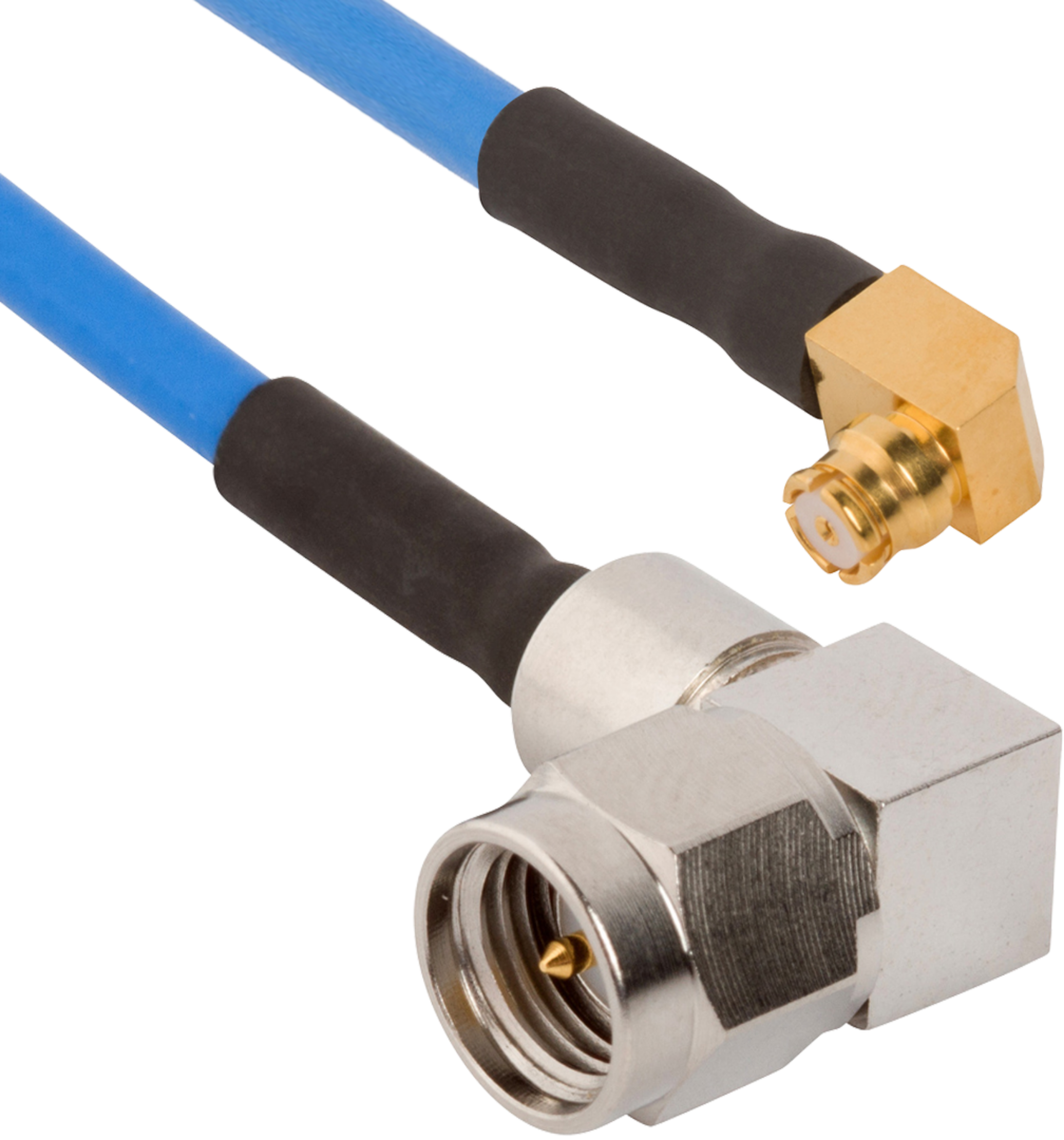

Part #   7012-1328

SMP Female R/A to SMA Male R/A 12" Cable Assembly for .085 Cable"

Available Inventory: 944
7012-1328
SMP Cable Assemblies 7012-1328
Datasheet
Part #   7012-1330

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .047 Cable"

Available Inventory: 35
7012-1330
SMP Cable Assemblies 7012-1330
Datasheet

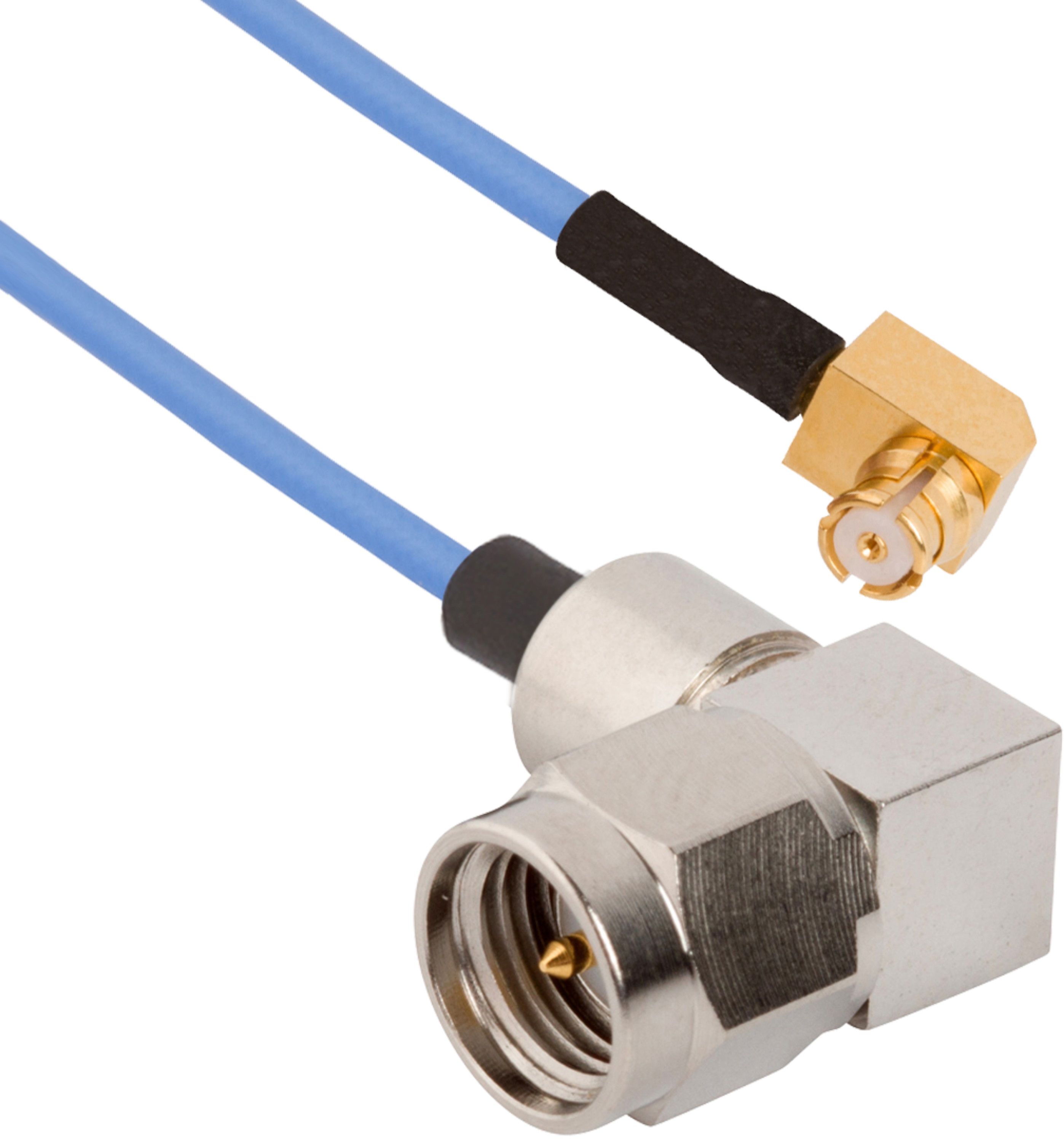

Part #   7012-1331
