Name: SMP Female R/A to SMP Female 3" Cable Assembly for .047 SuperFlex Cable 7012-2004
SKU: 7012-2004
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
Family	SuperFlex
Gender	Jack (Female)
Orientation (Body)	Right Angle
Coupling	Push-on
Termination Style	Solder
RF Series 2	SMP
Gender 2	Jack (Female)
Number of Ports	Single
Orientation 2 (Body)	Straight
Cable Type	0.047 SuperFlex Coax
RF Series	SMP
Cable Length	3"
Electrical
Frequency	33 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles - SB	1000
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Mating Cycles - LD	500
Insertion Force - LD	5.0 lbs
Withdrawal Force - LD	7.0 lbs
Environmental
Temperature Rating	-65°C to +165°C
Vibration	MIL-STD-202, Method 204, Condition D
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:31:37 AM

SMP Female R/A to SMP Female 3" Cable Assembly for .047 SuperFlex Cable
P/N: 7012-2004

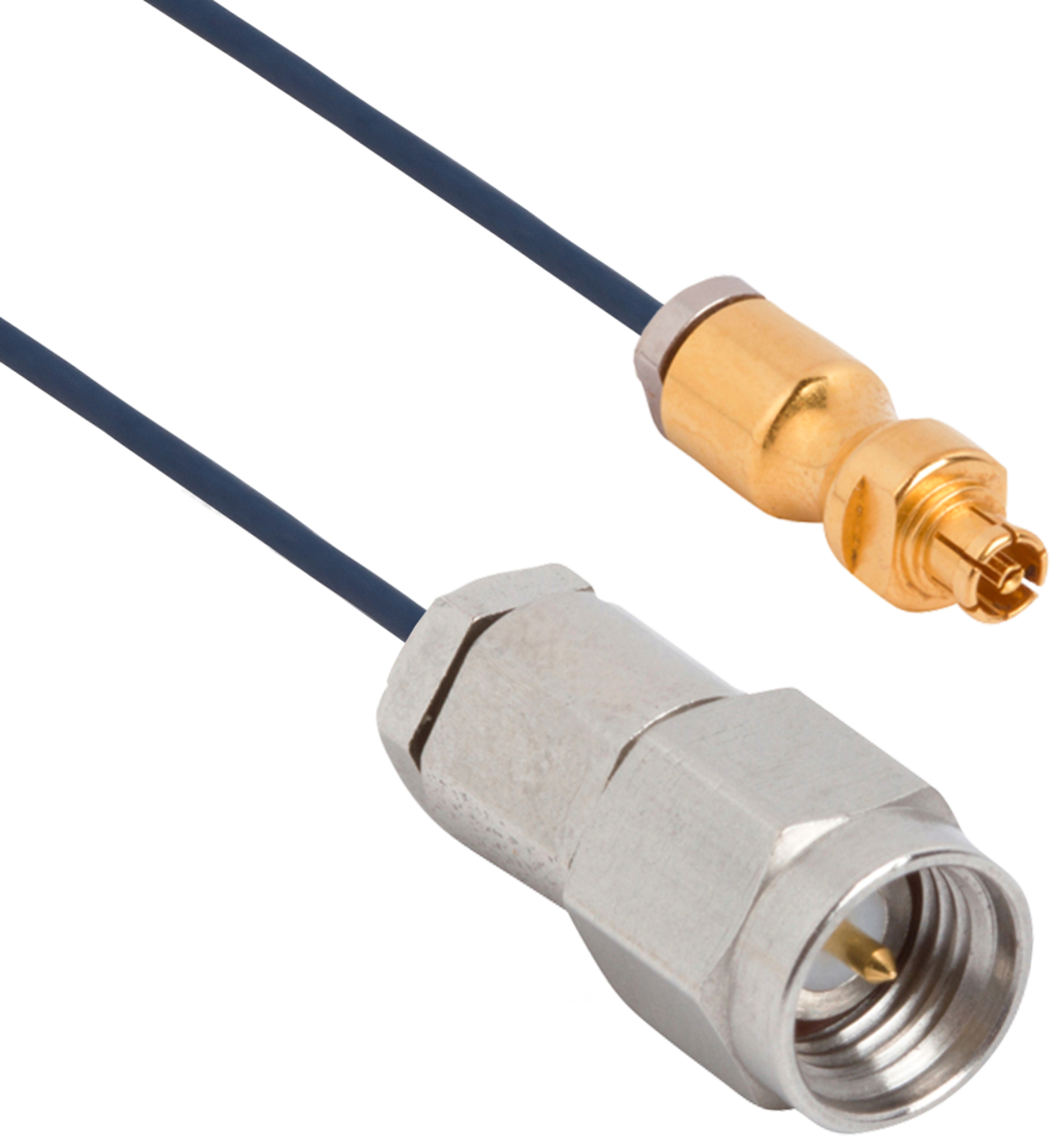

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable
