P/N: 7012-2005

SMP Female R/A to SMP Female 6" Cable Assembly for .047 SuperFlex Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMP
Gender 2 Jack (Female)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMP
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMP
Gender 2 Jack (Female)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMP
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

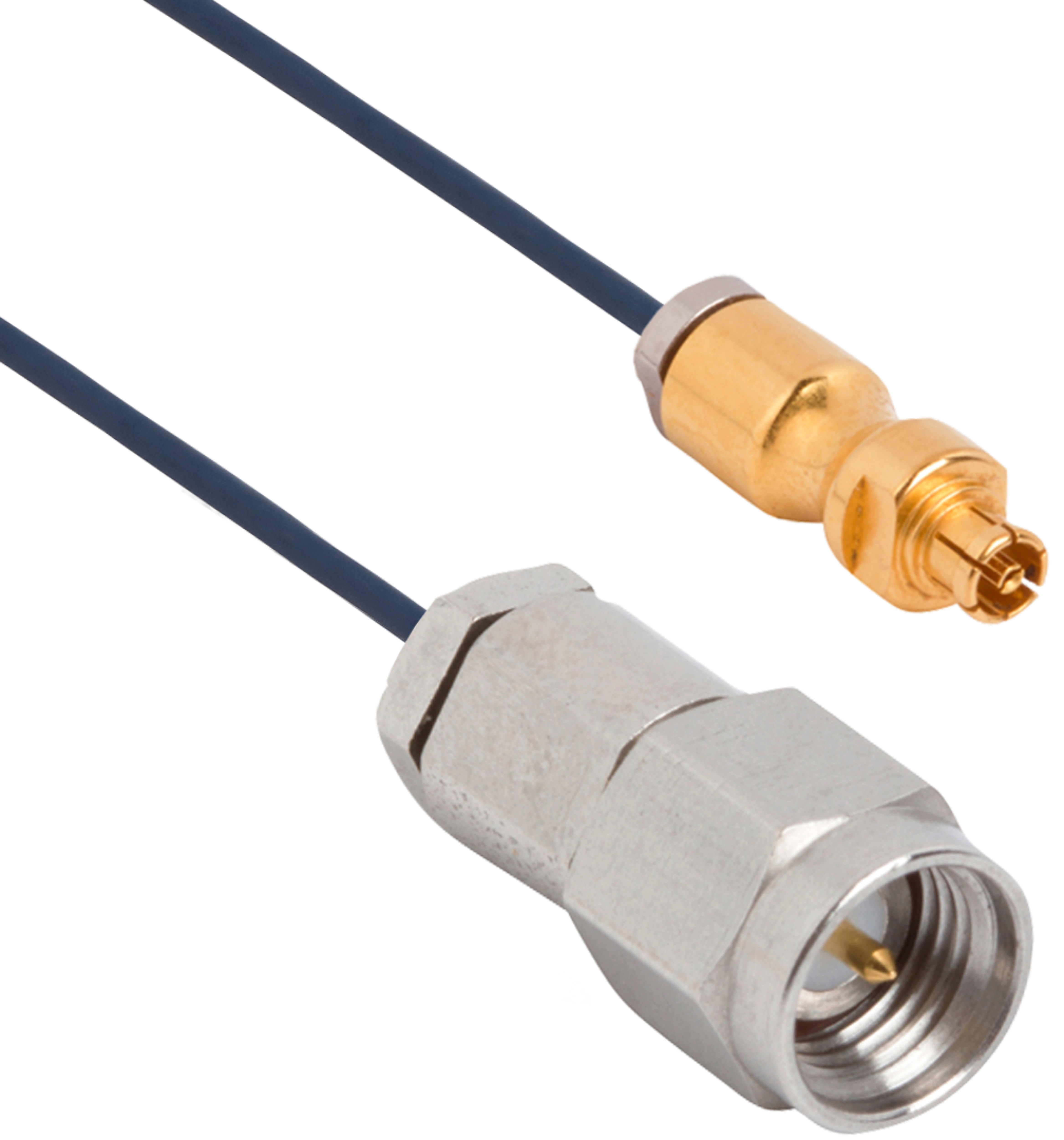

Part #   7032-7777

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 46
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet

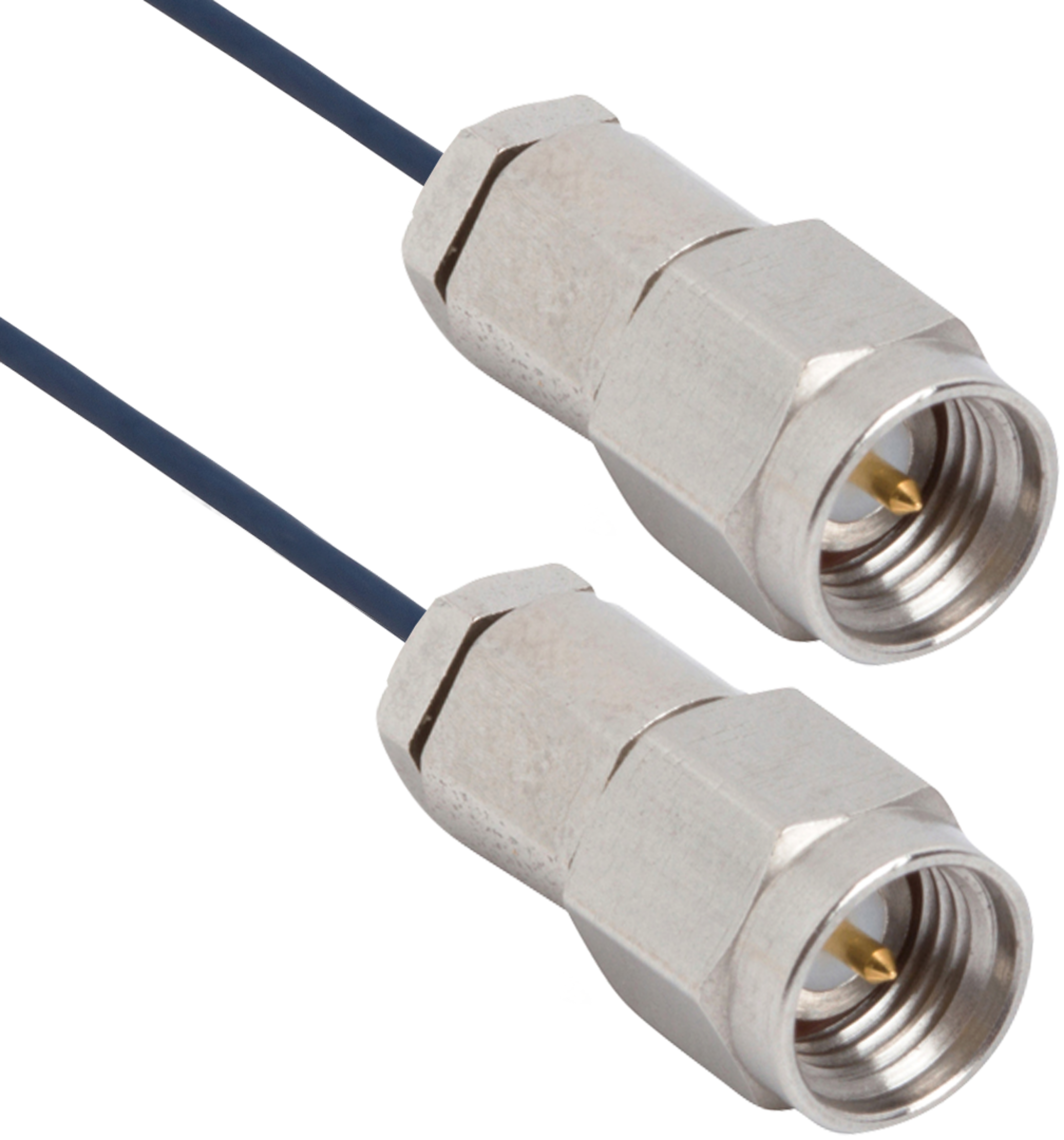

Part #   7029-3437
