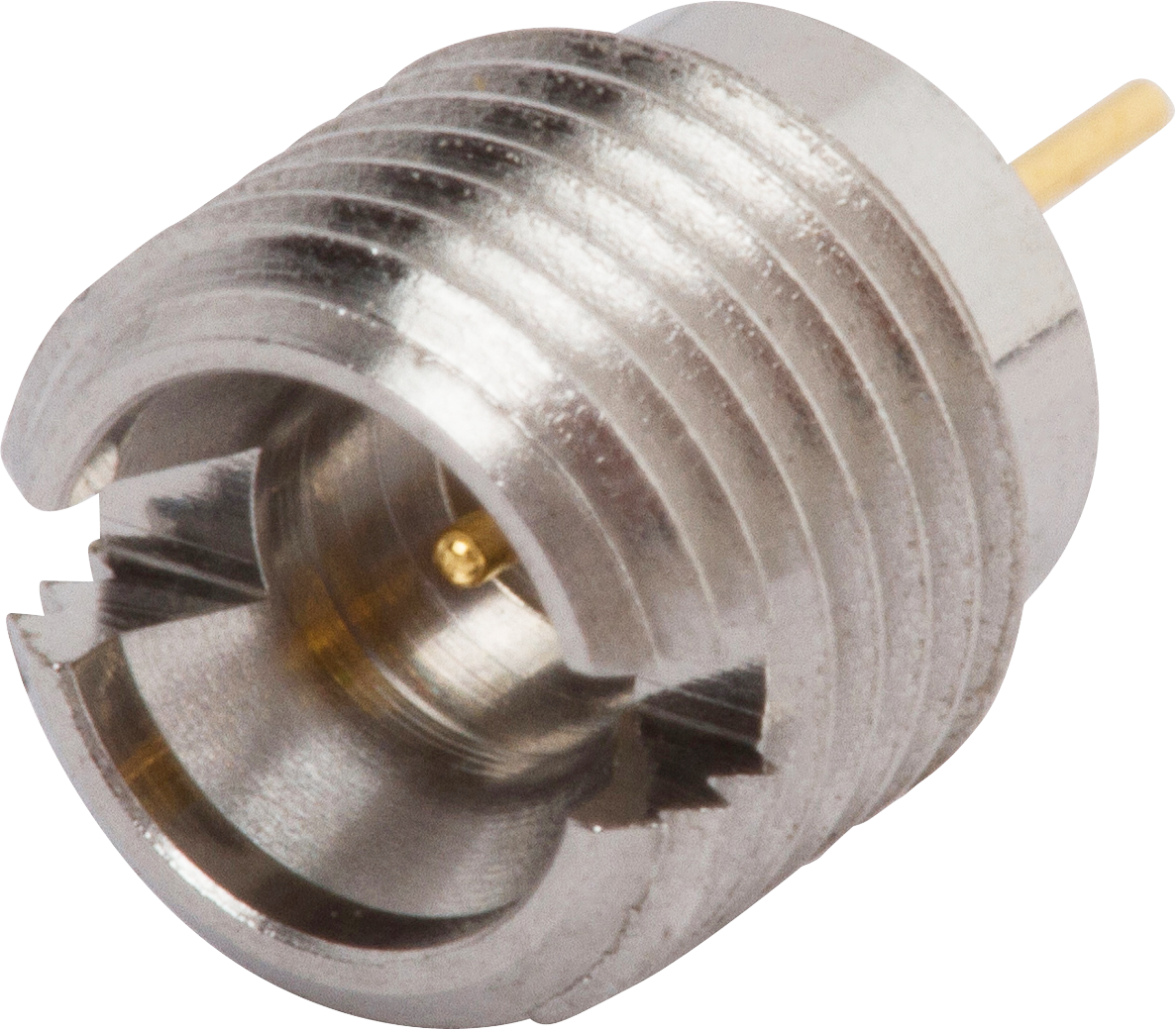

SMP Male Thread-In Connector (.018"), SB"
P/N: SF1211-66114

In stock at Qty Order
Digi-Key Electronics 271
Mouser Electronics 81
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Panel
Detent Smooth Bore
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:08:27 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Panel
Detent Smooth Bore
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1211-6041

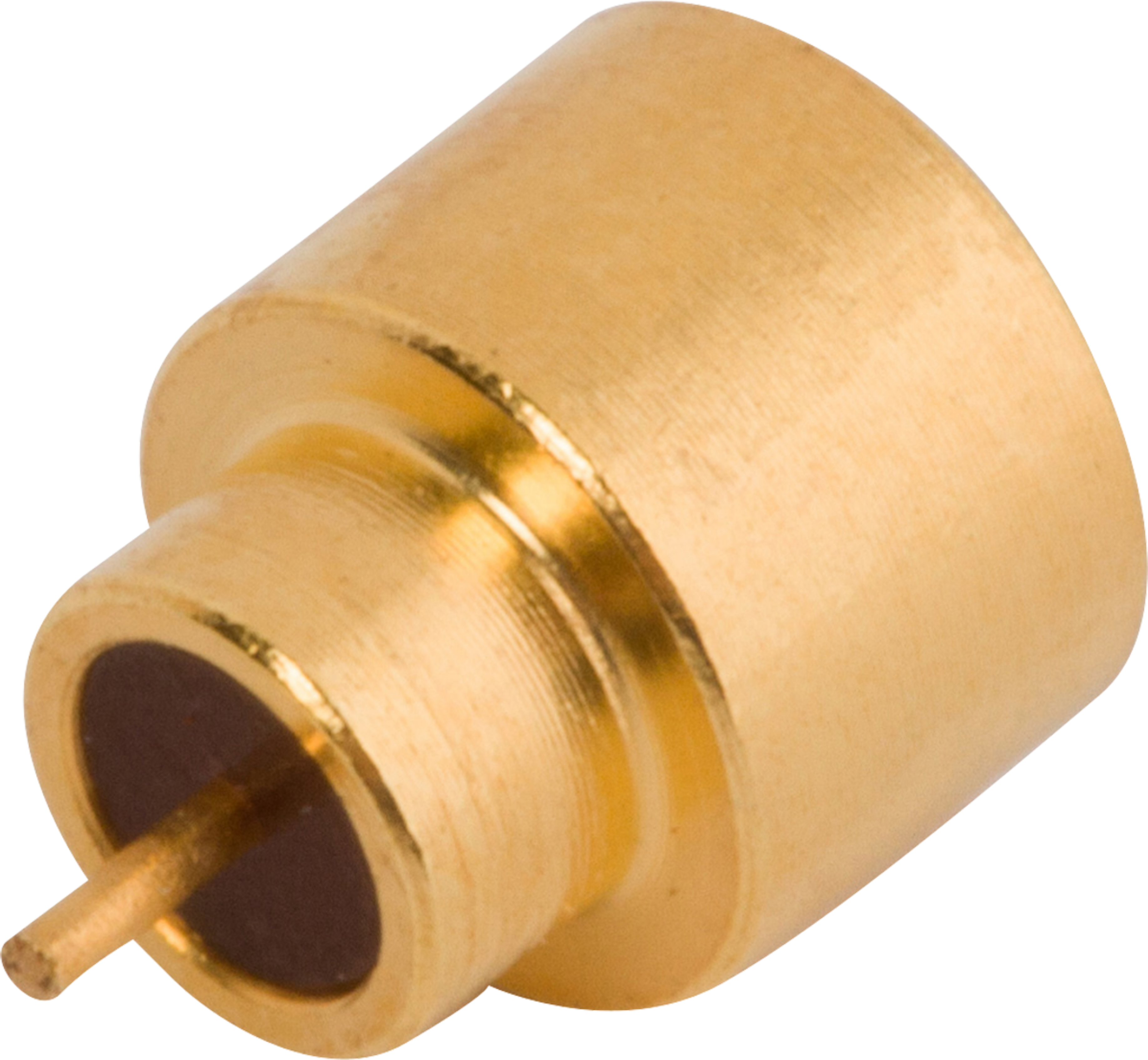

SMP Male Solder-In Hermetic Connector (.015"), FD"
