P/N: 1279-4001

SMP Male Thread-In Hermetic Connector (.015"), FD"

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Straight
Coupling Push-on
Mounting Type Panel
Detent Full Detent
Number of Ports Single
Style Hermetic
Impedance 50 ohms
Frequency 26.5 GHz
Gender Plug (Male)
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Straight
Coupling Push-on
Mounting Type Panel
Detent Full Detent
Number of Ports Single
Style Hermetic
Impedance 50 ohms
Frequency 26.5 GHz
Gender Plug (Male)
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1211-6041

SMP Male Solder-In Hermetic Connector (.015"), FD"

Available Inventory: 64
1211-6041
SMP Connectors 1211-6041
Datasheet

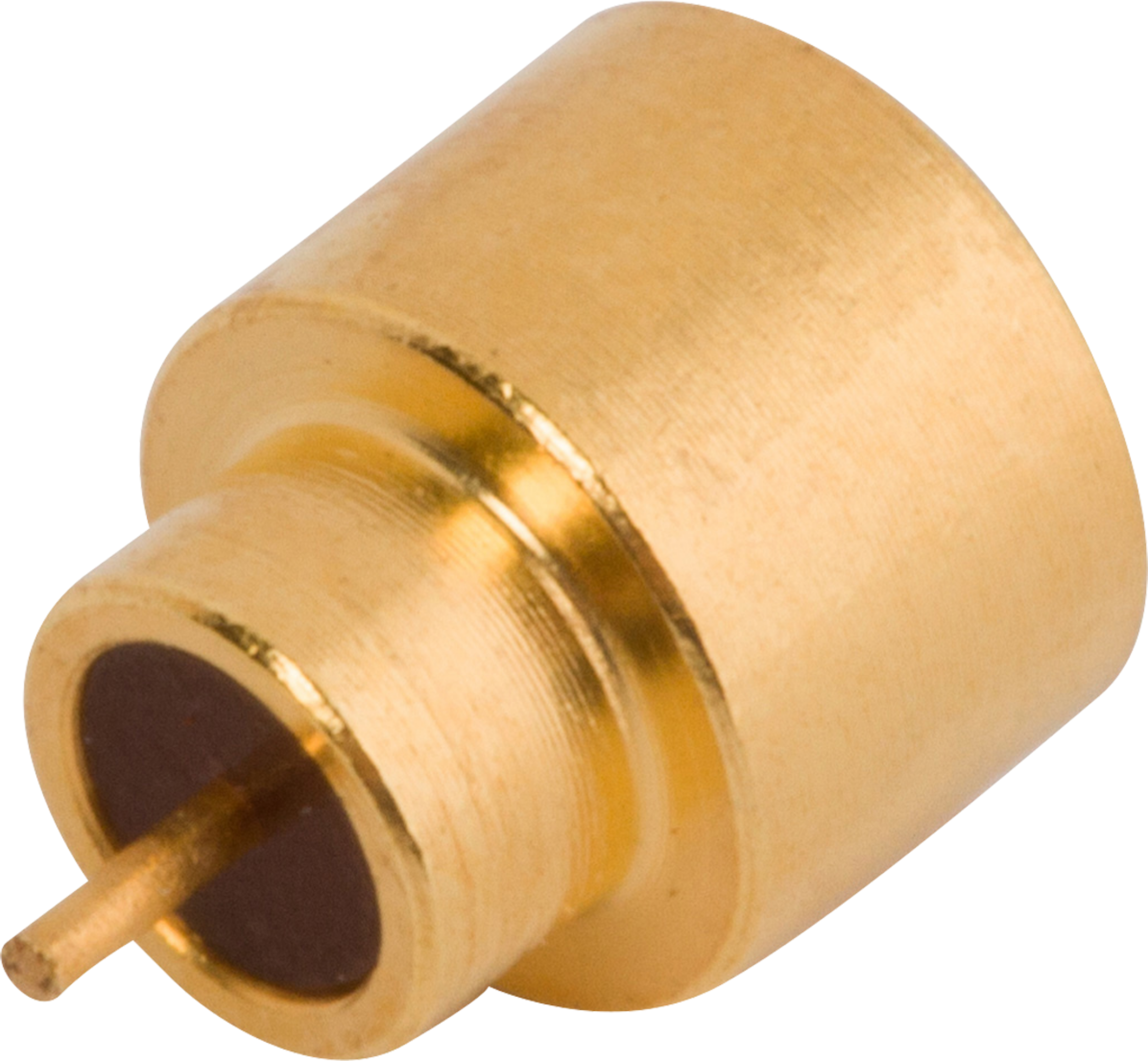

Part #   1211-6043

SMP Male Solder-In Hermetic Connector (.015"), SB"

Available Inventory: 25
1211-6043
SMP Connectors 1211-6043
Datasheet

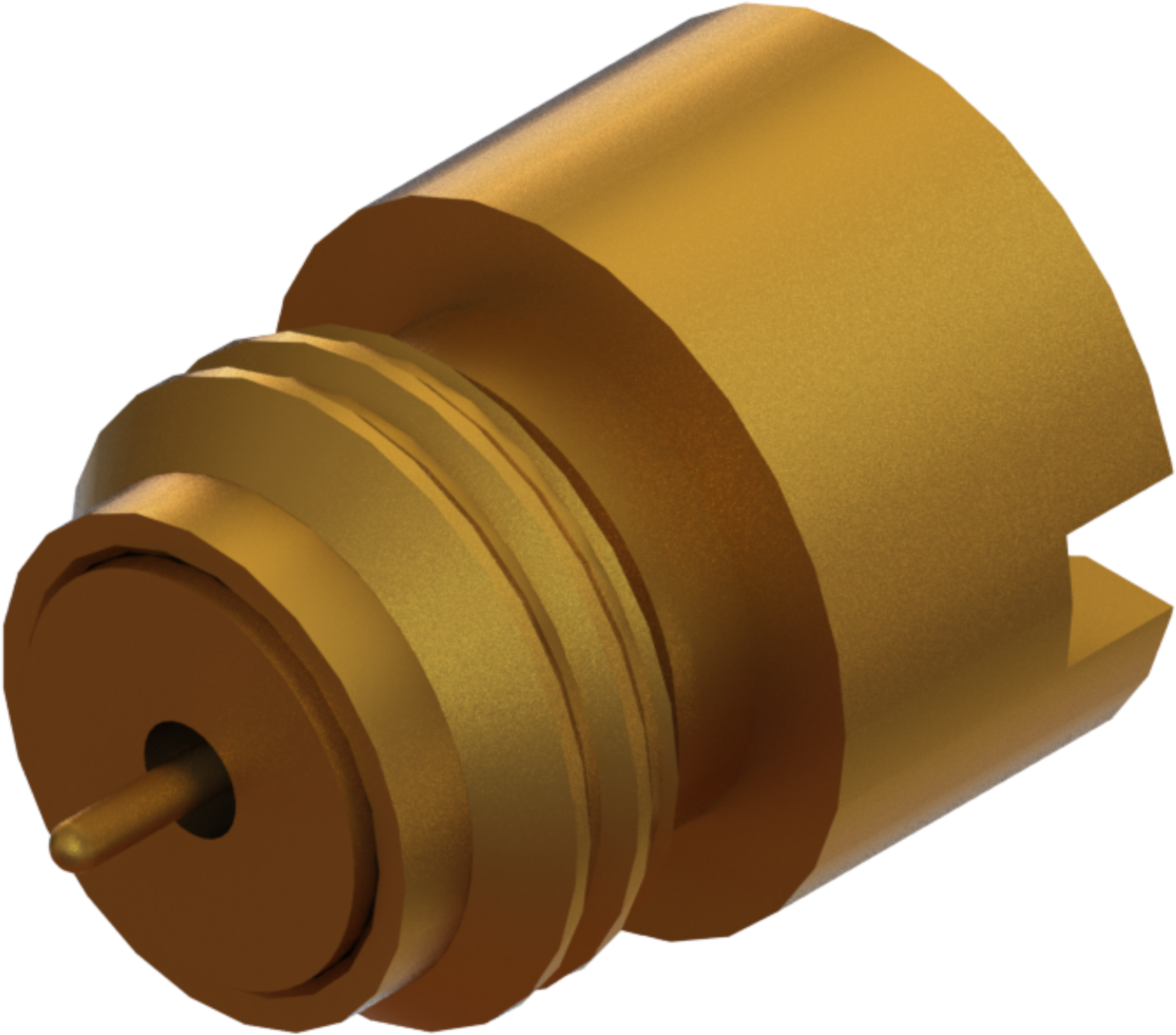

Part #   1279-4002
