P/N: 500-32-007

SMPM Female Bullet Removal Tool

In stock at Qty Order
Digi-Key Electronics 29
TTI Inc Global Headquarters 23
Heilind Electronics 20
Mouser Electronics 11
Master Electronics 10
Electro Enterprises Inc 7
Farnell 2
Products specifications
Attribute name Attribute value
RF Series SMPM
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force - SB 2.5 lbs
Mating Cycles - FD 100
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force - SB 2.5 lbs
Mating Cycles - FD 100
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   500-12-000

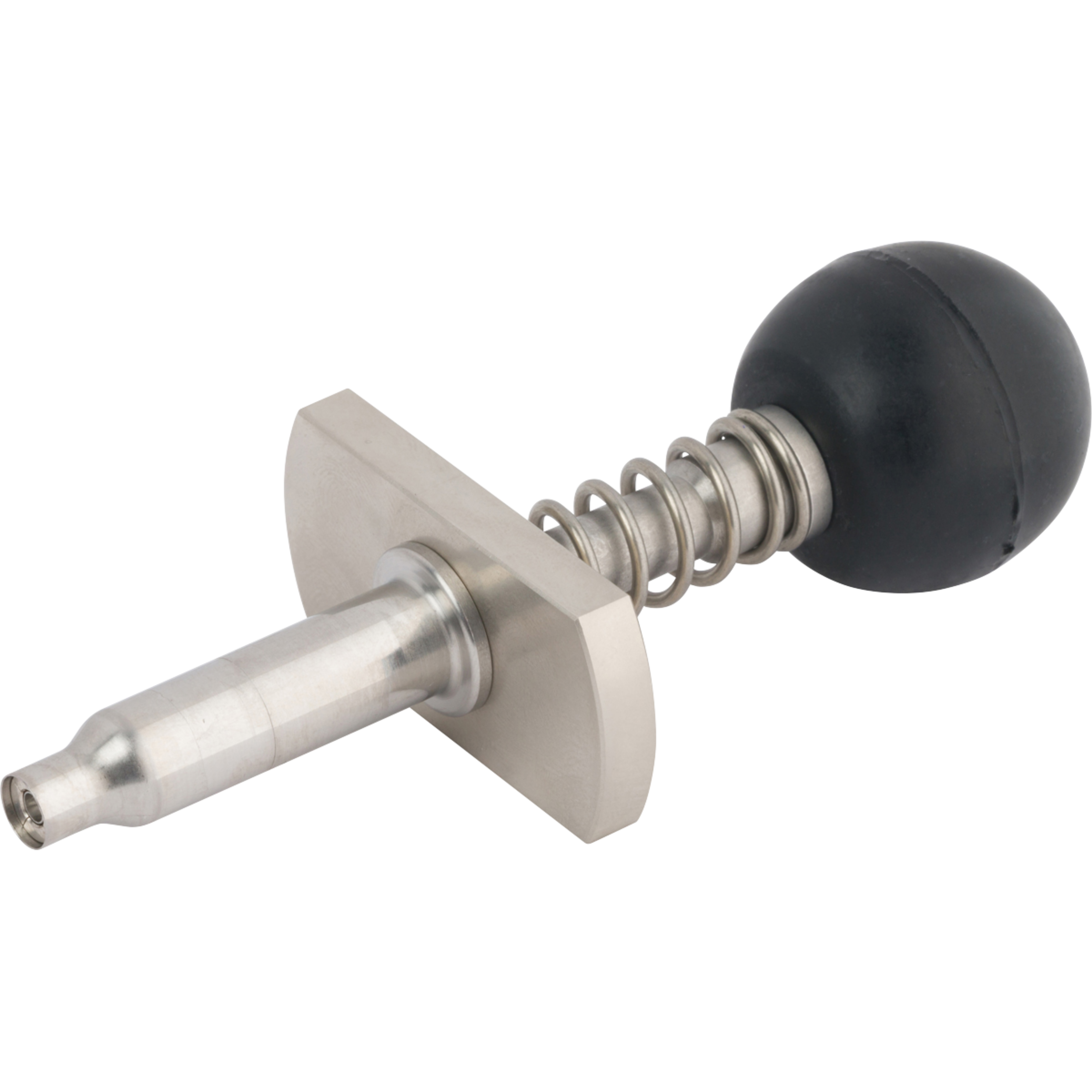

SMP Female Bullet Removal Tool

Available Inventory: 43
500-12-000
SMP Tool 500-12-000
Datasheet
Part #   500-38-004

SMPS Female Bullet Removal Tool

Available Inventory: 14
500-38-004
SMPS Tool 500-38-004
Datasheet
Part #   500-80-014

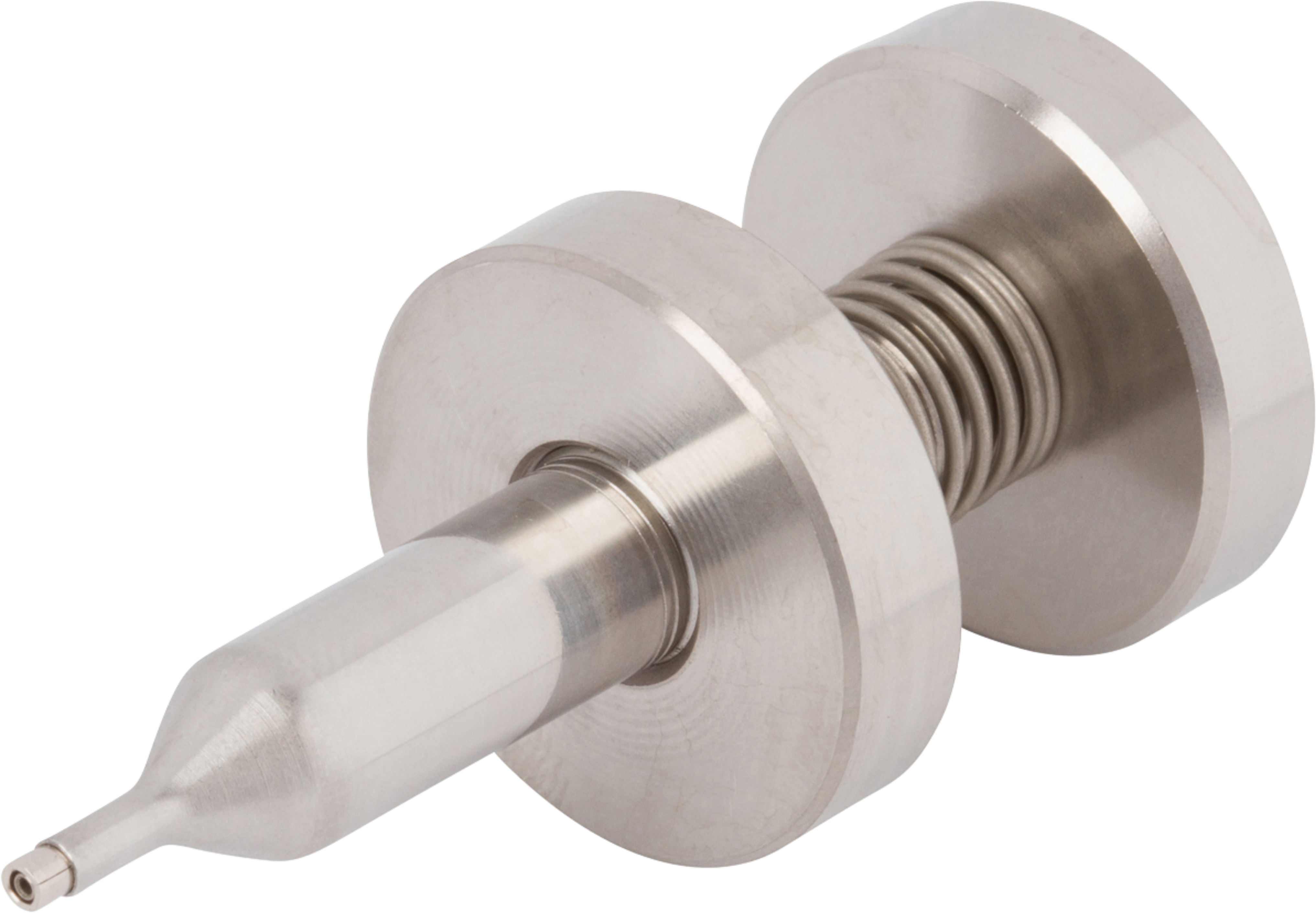

3mm Bullet Removal Tool
