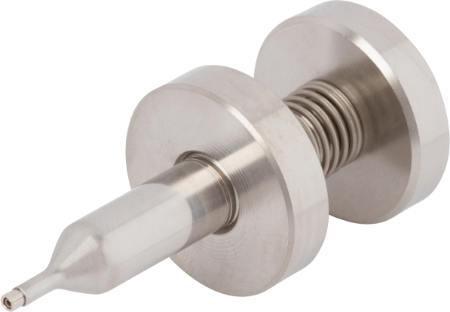

3mm Bullet Removal Tool
P/N: 500-80-014

In stock at Qty Order
Mouser Electronics 8
Interstate Connecting Components 7
Newark 4
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Electrical
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Insertion Force - FD 3.4 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 3/29/2023 1:17:26 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Electrical
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Insertion Force - FD 3.4 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   500-12-000

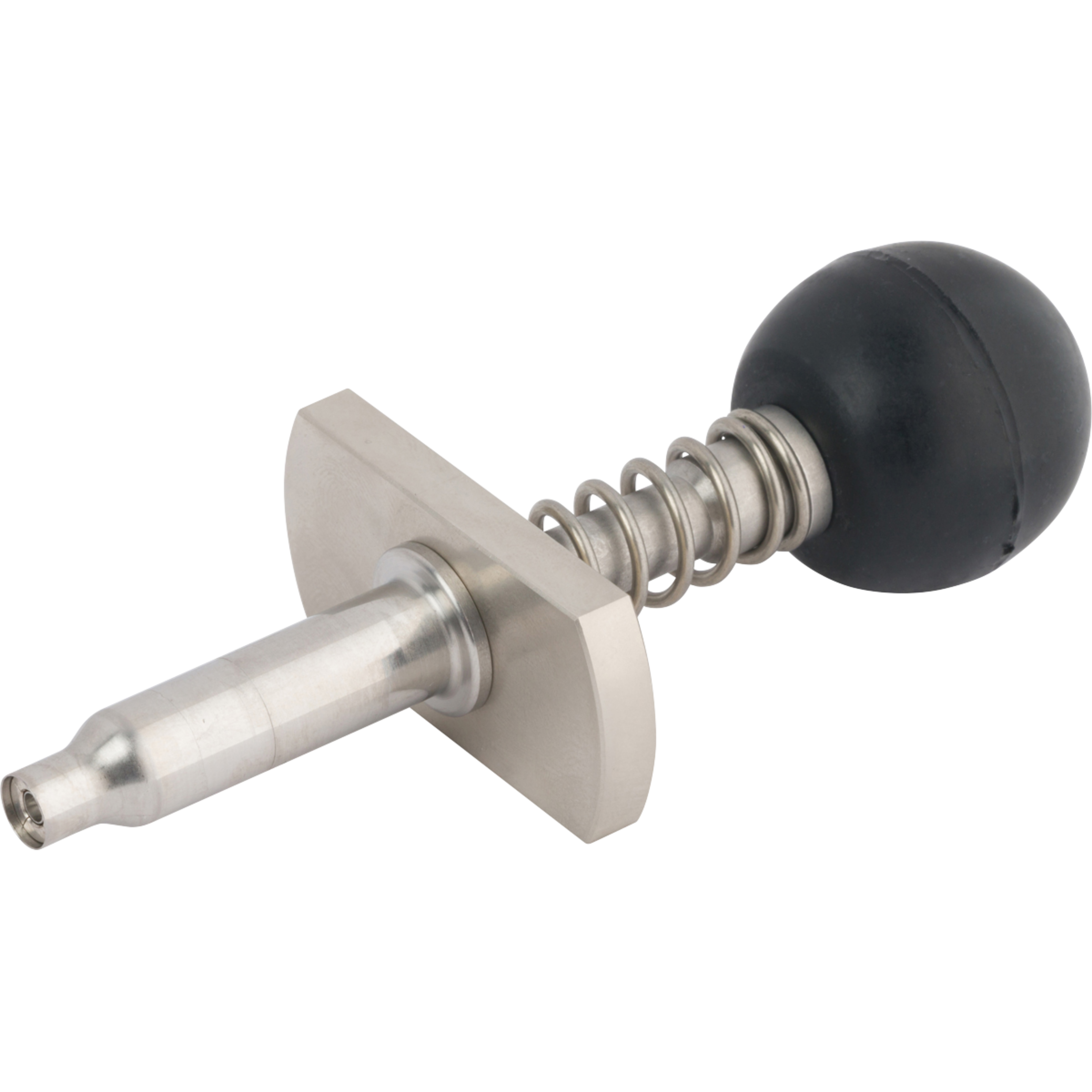

SMP Female Bullet Removal Tool

Available Inventory: 82
500-12-000
SMP Tool 500-12-000
Datasheet
Part #   500-32-007

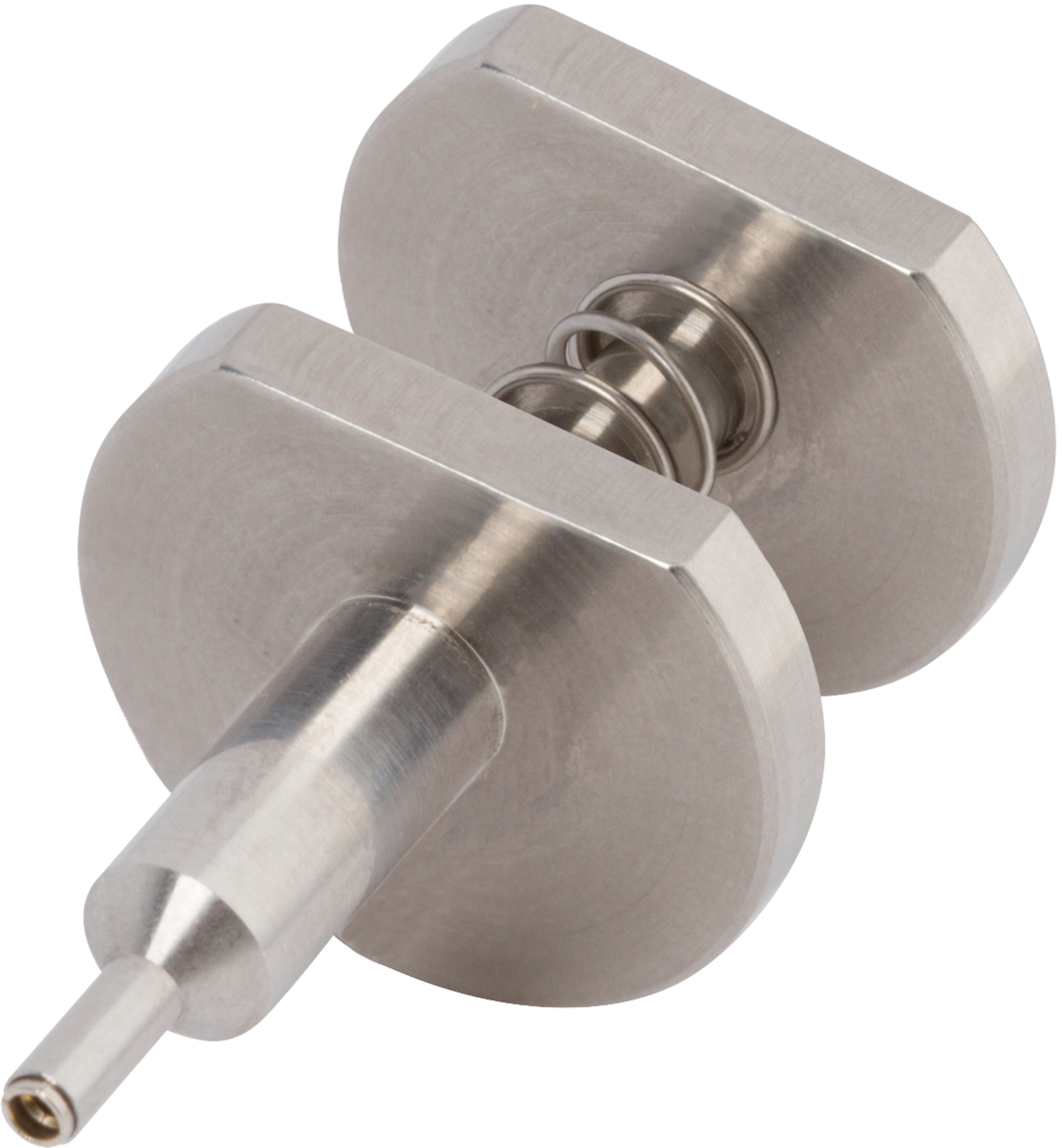

SMPM Female Bullet Removal Tool

Available Inventory: 150
500-32-007
SMPM Tool 500-32-007
Datasheet
Part #   500-38-004

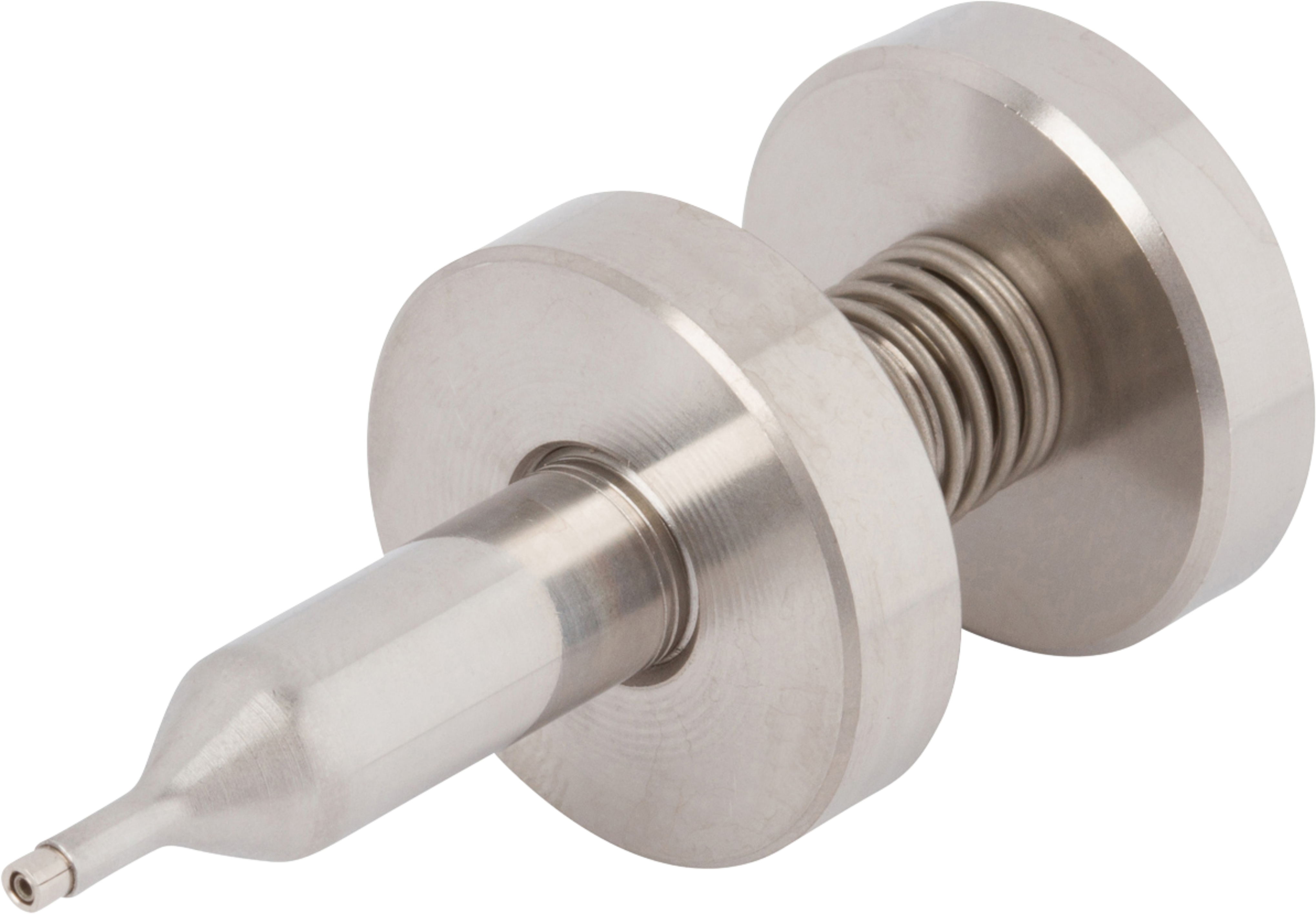

SMPS Female Bullet Removal Tool
