SMPM Female R/A to 2.92mm Male 3" Cable Assembly for .047 SuperFlex Cable
P/N: 7032-9435

In stock at Qty Order
Digi-Key Electronics 25
Mouser Electronics 10
Newark 10
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMPM
Cable Length 3"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series SMPM
Cable Length 3"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7777

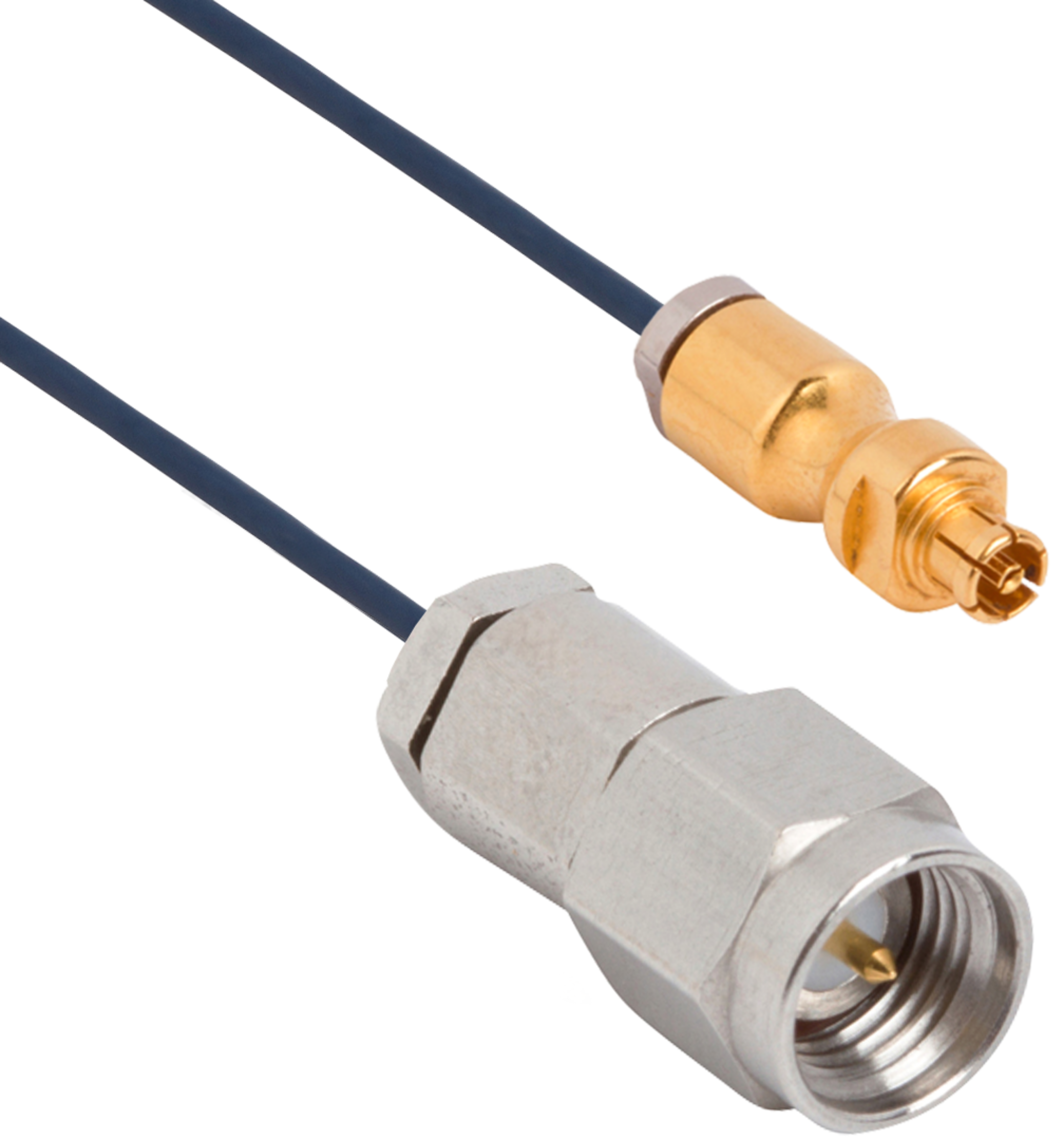

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 32
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet
Part #   7029-3437

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 86
7029-3437
SMA Cable Assemblies 7029-3437
Datasheet
Part #   7029-3436

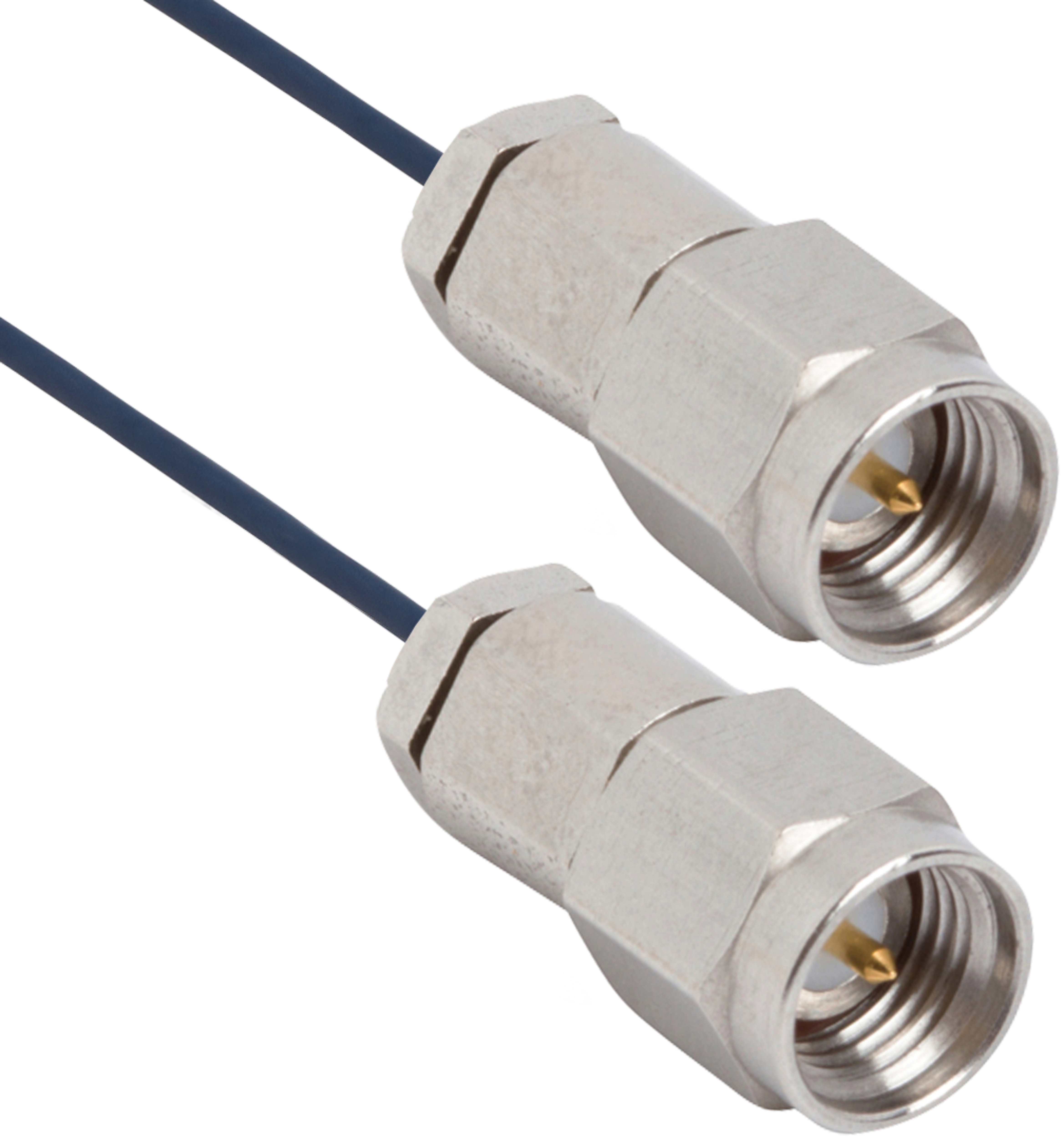

SMA Male to SMA Male 12" Cable Assembly for .047 SuperFlex Cable
