Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Termination Style | Solder |
| RF Series 2 | 2.92 mm |
| Gender 2 | Plug (Male) |
| Number of Ports | Single |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| RF Series | SMPM |
| Cable Length | 6" |
| Electrical | |
| Frequency | 33 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Intermateability | SMA |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:31:46 AM |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Termination Style | Solder |
| RF Series 2 | 2.92 mm |
| Gender 2 | Plug (Male) |
| Number of Ports | Single |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| RF Series | SMPM |
| Cable Length | 6" |
| Electrical | |
| Frequency | 33 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Intermateability | SMA |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 7032-7777

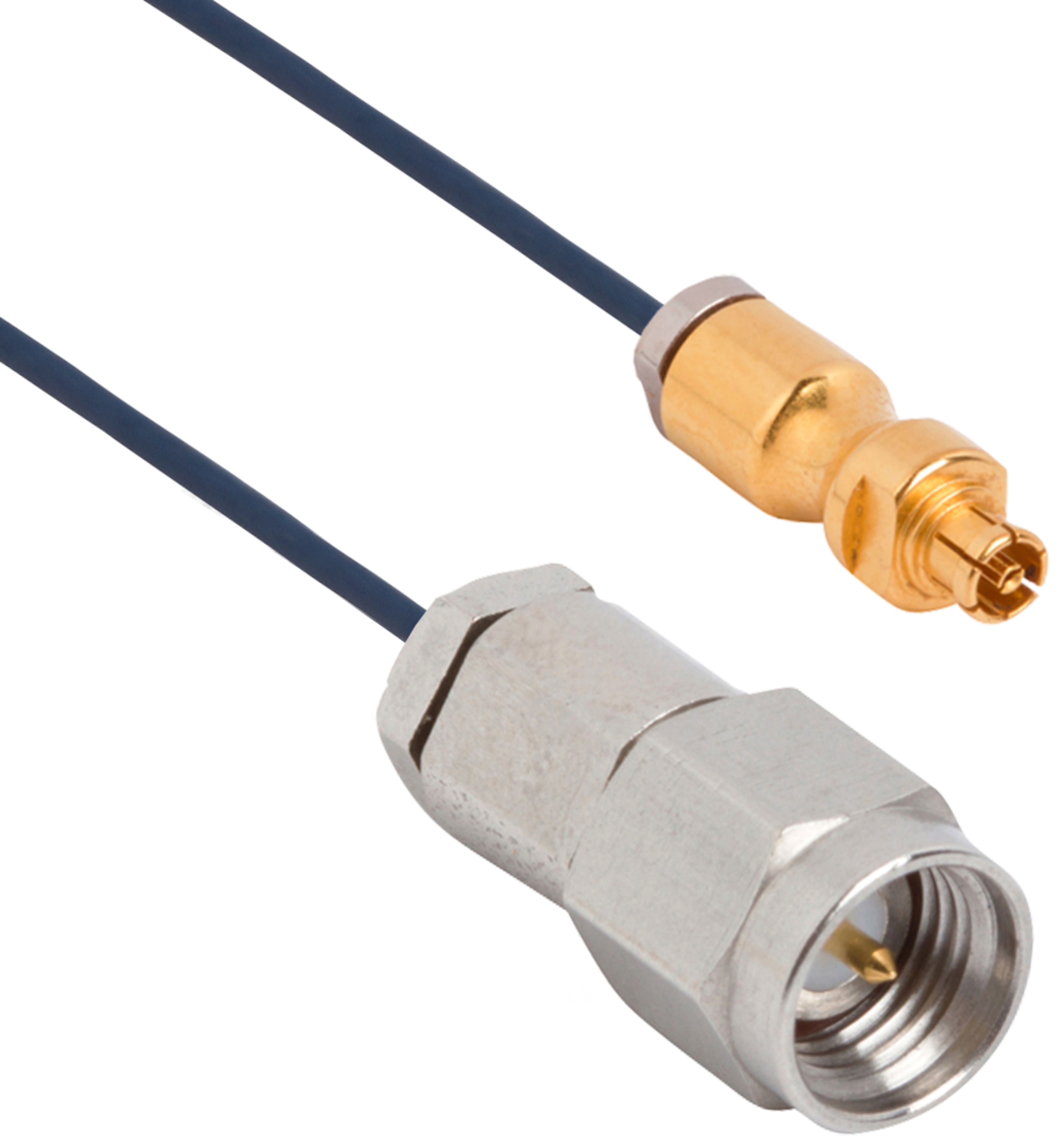

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"
Available Inventory: 18
7032-7777
SMPM Cable Assemblies 7032-7777
Part # 7029-3437

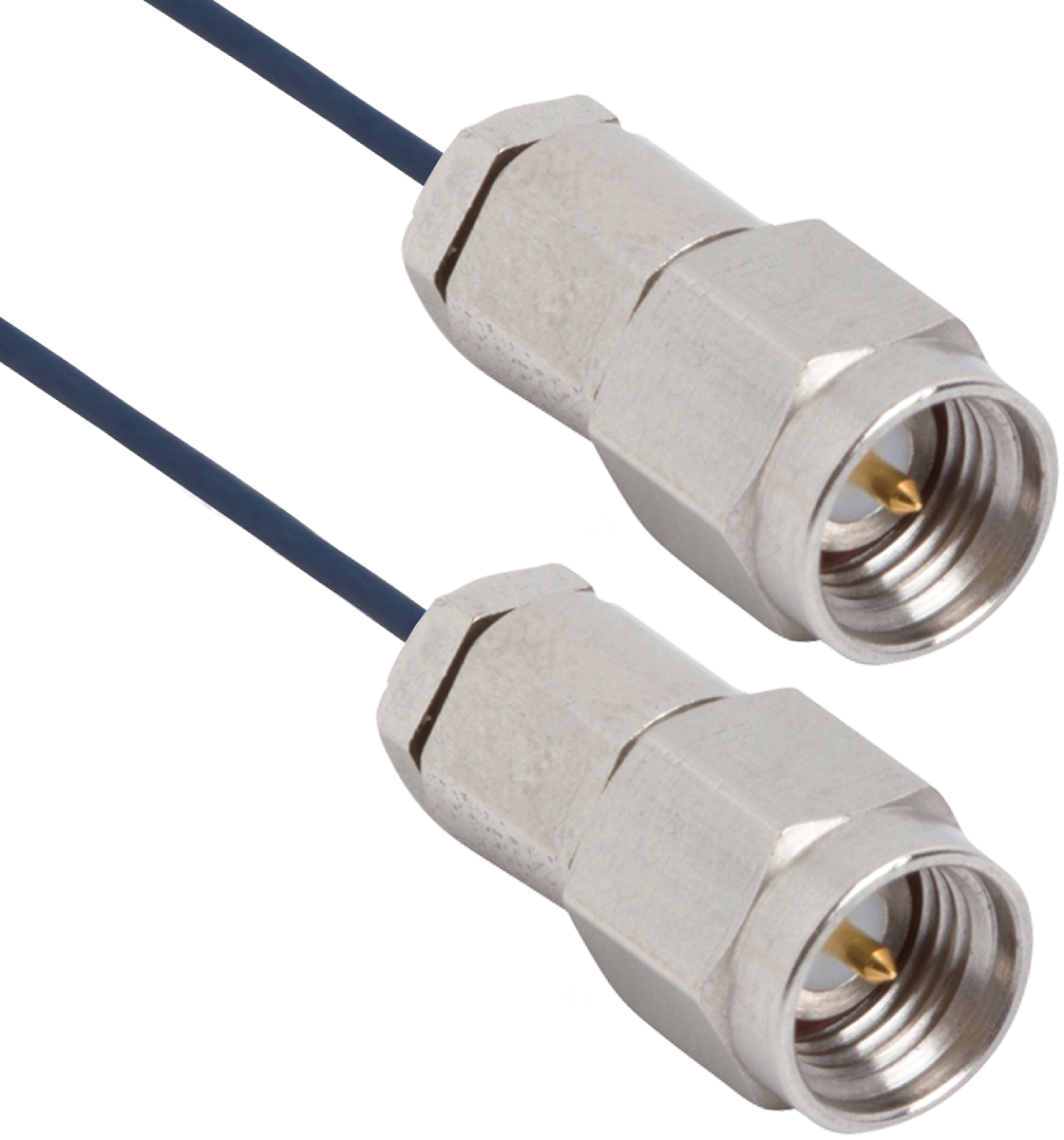

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable
