SMPM Female VITA 67.3 Contact Removal Tool
P/N: 500-32-015

In stock at Qty Order
Interstate Connecting Components 36
Master Electronics 25
Mouser Electronics 24
Heilind Electronics 12
Digi-Key Electronics 7
Newark 5
Farnell 5
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPM Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   500-32-022

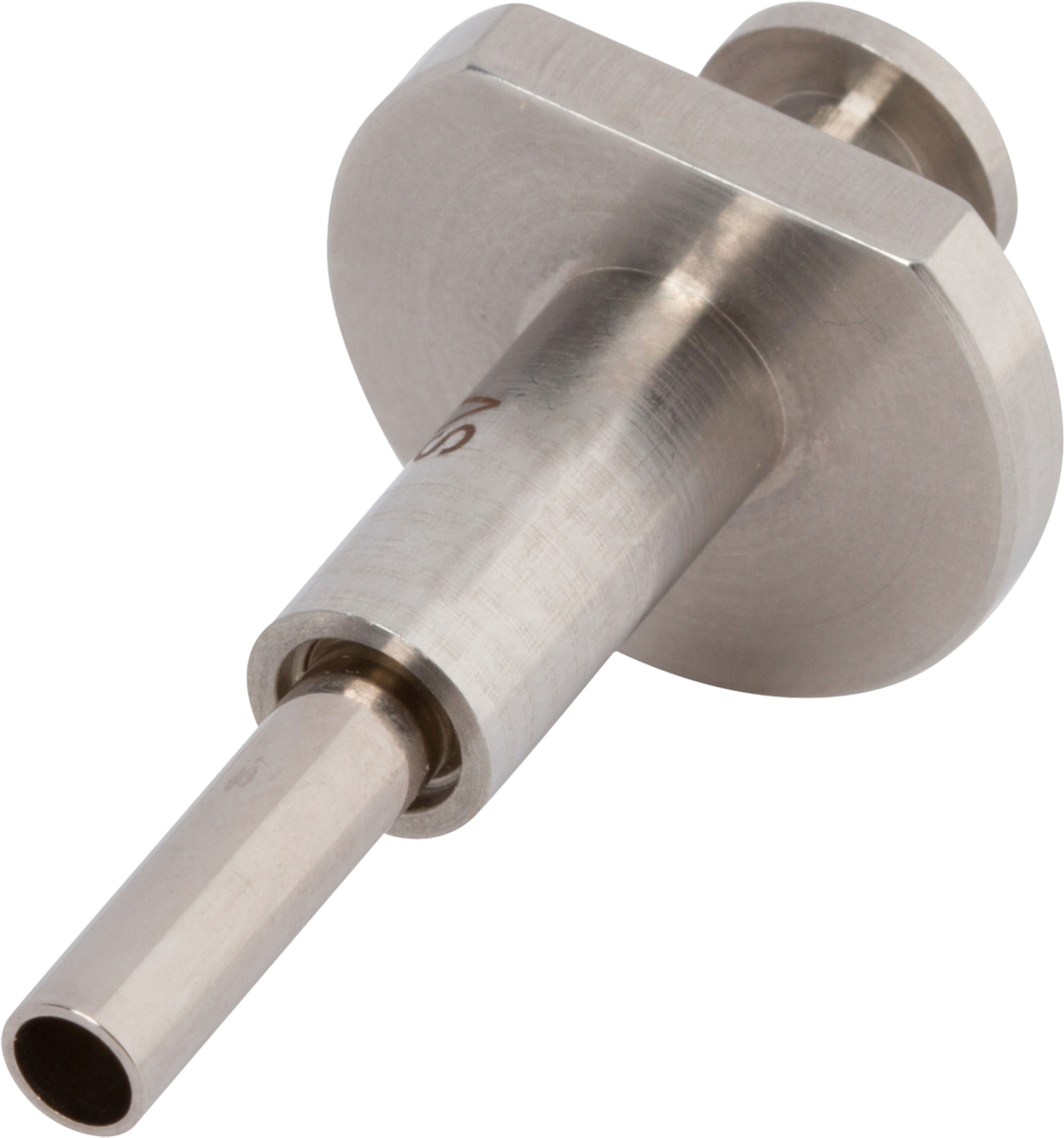

SMPM Female VITA 67.1/2 Contact Removal Tool

Available Inventory: 50
500-32-022
VITA Tool 500-32-022
Datasheet
Part #   3221-40066

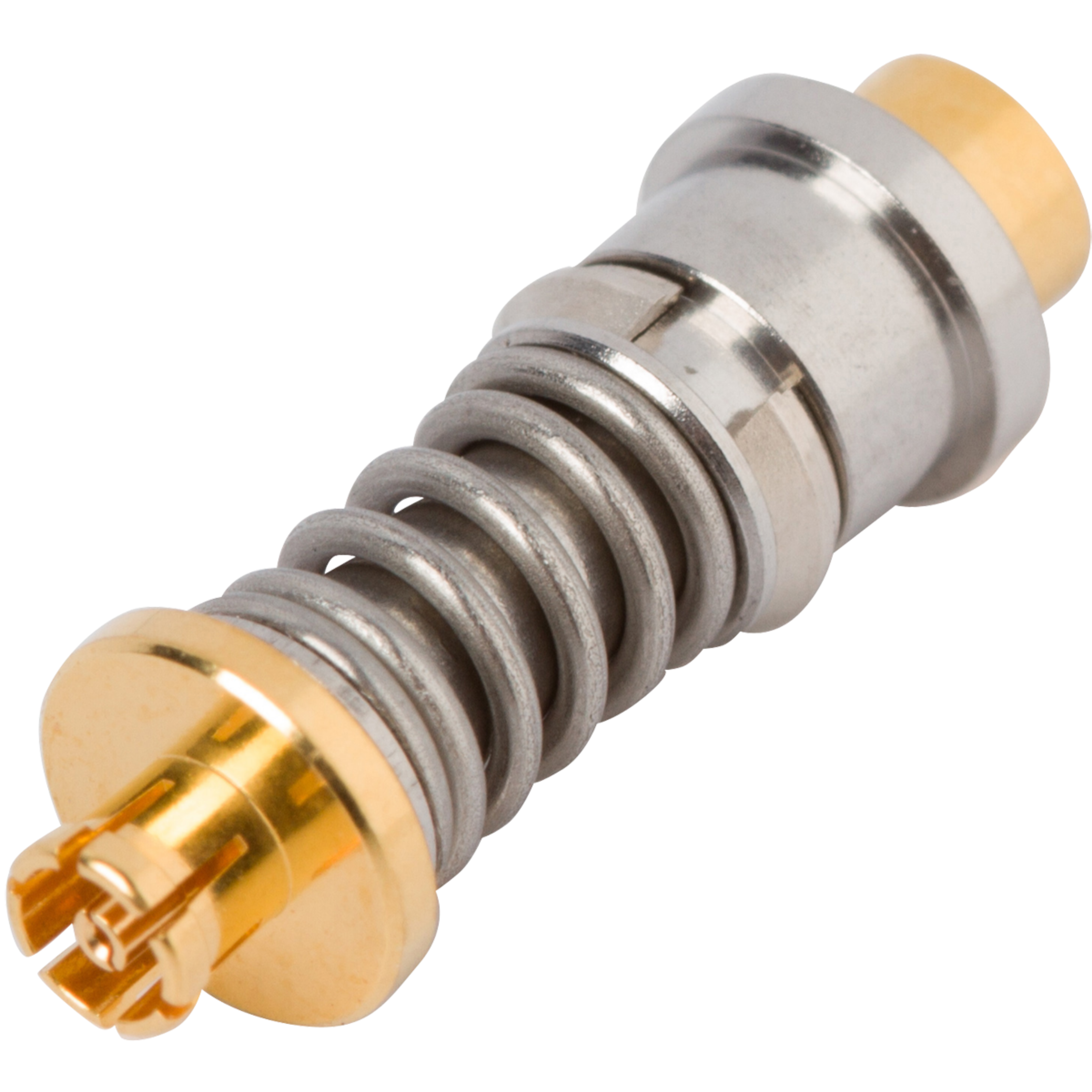

SMPM Female VITA 67.3 Backplane Contact for .086 Cable

Available Inventory: 1621
3221-40066
VITA Connectors 3221-40066
Datasheet
Part #   3221-40071

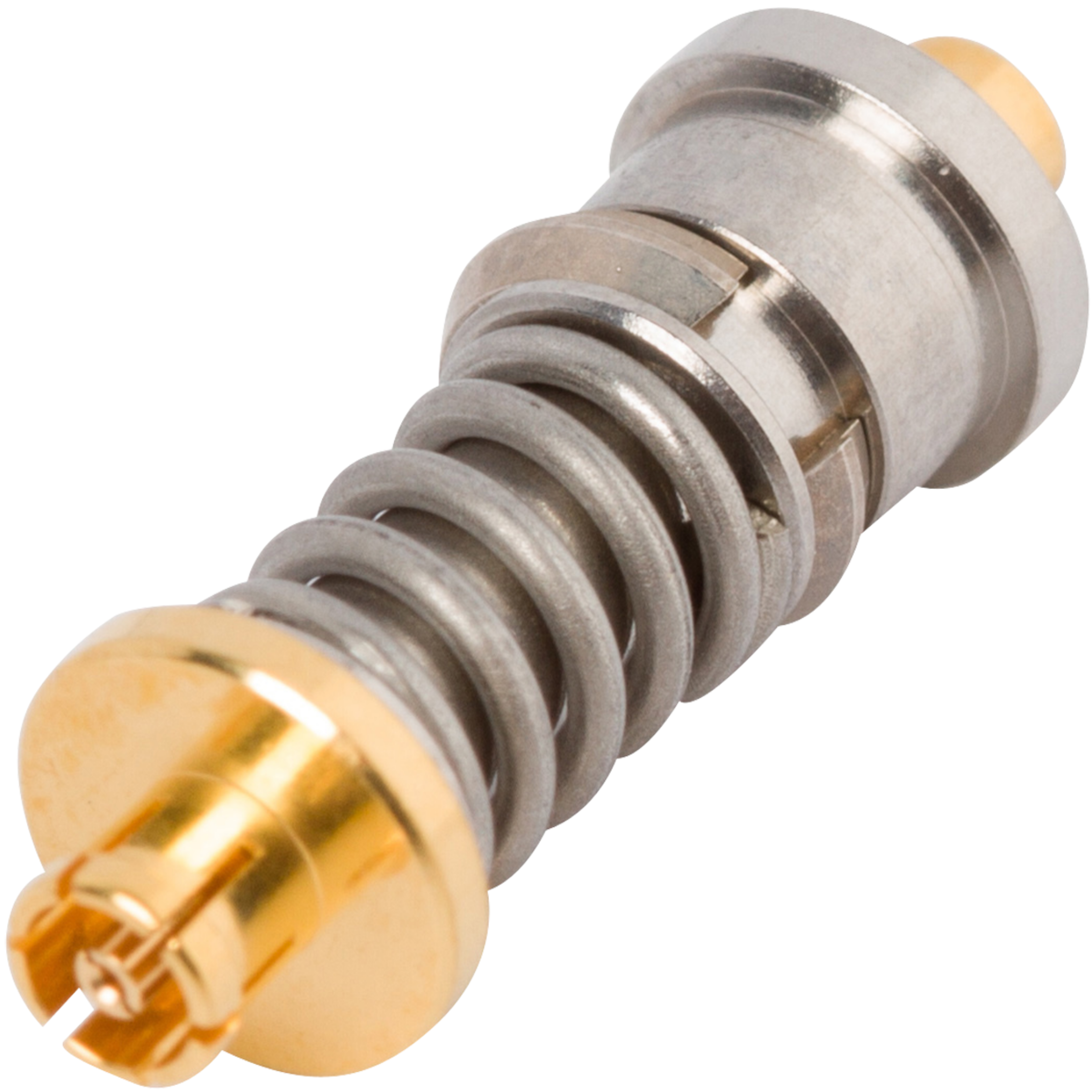

SMPM Female VITA 67.3 Backplane Contact for .047 Cable
