P/N: 3221-40071

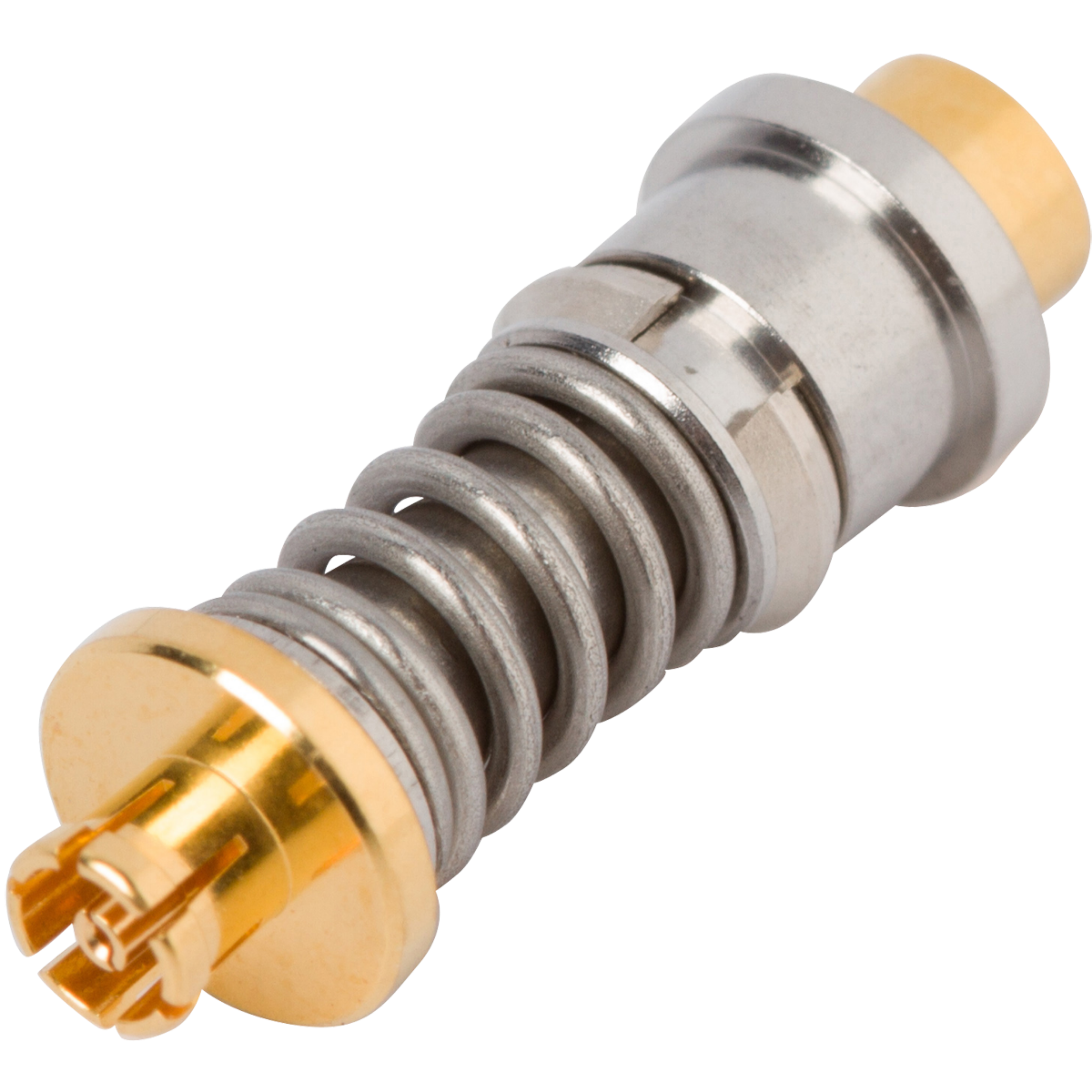

SMPM Female VITA 67.3 Backplane Contact for .047 Cable

In stock at Qty Order
TTI Inc Global Headquarters 552
Digi-Key Electronics 239
Mouser Electronics 63
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Finish Gold
Cable Type 0.047 Flexible Coax
Gender Jack (Female)
Cable Builder Attributes
Cable Builder Left Image 25857
Cable Builder Right Image 25858
Mating Connector SF9321-60059, SF9321-60086
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 40 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 325 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Finish Gold
Cable Type 0.047 Flexible Coax
Gender Jack (Female)
Cable Builder Attributes
Cable Builder Left Image 25857
Cable Builder Right Image 25858
Mating Connector SF9321-60059, SF9321-60086
Electrical
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 40 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 325 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Customers Also Viewed
Part #   SF9911-6000

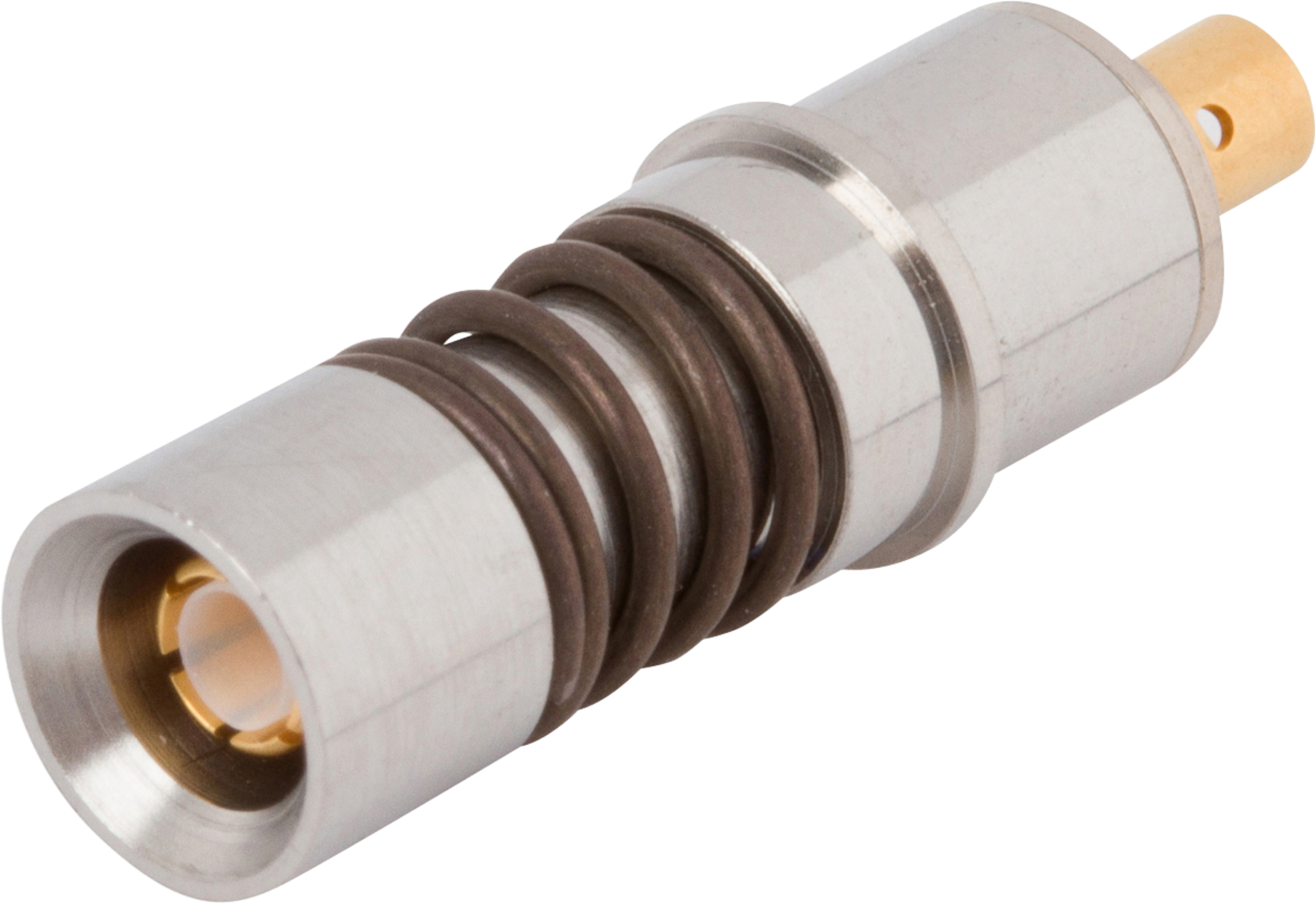

BMZ Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 45
SF9911-6000
BMZ Connectors SF9911-6000
Datasheet
Part #   SF9921-6000

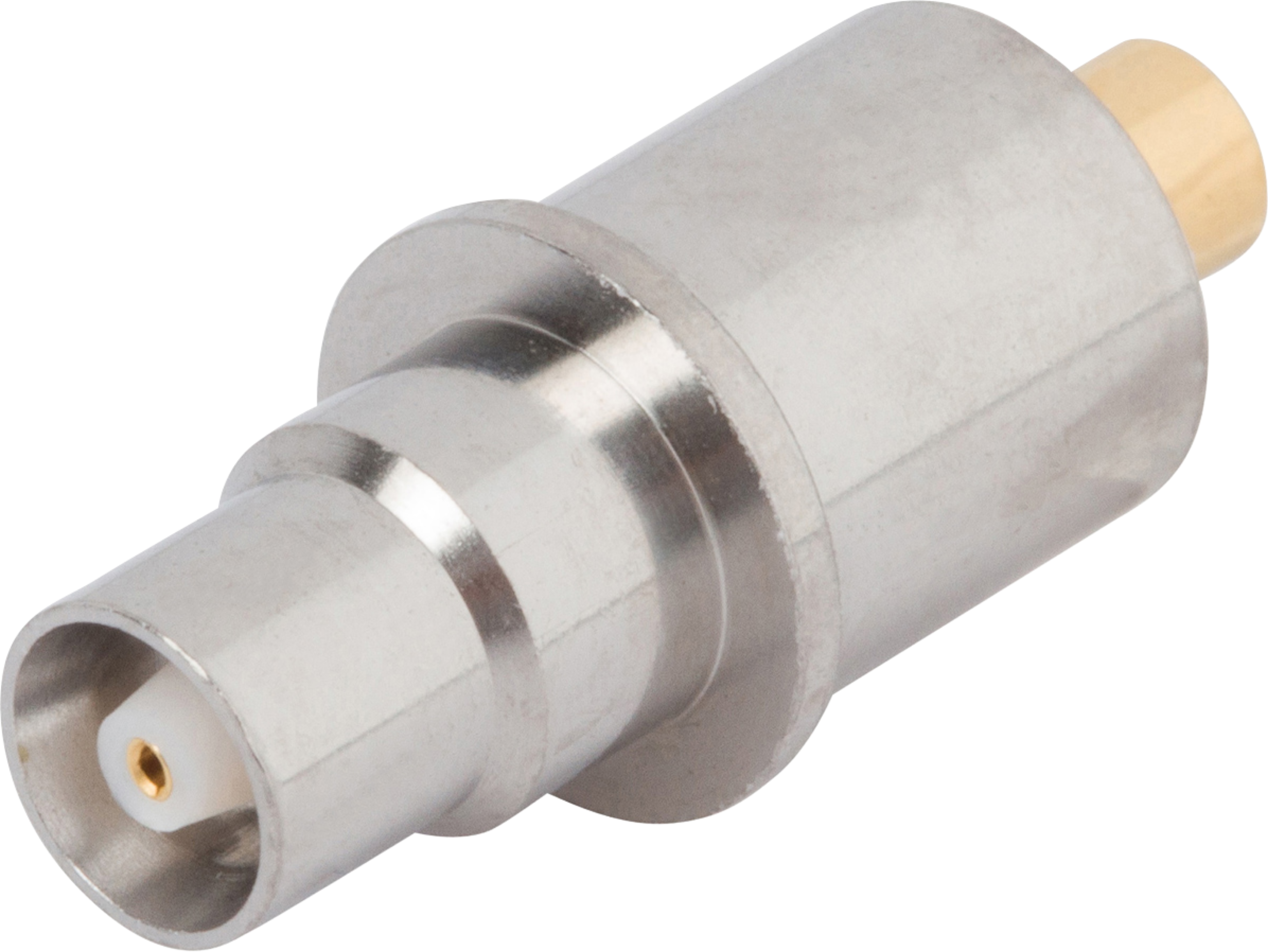

BMZ Pin D38999 Contact (Size 8) for .085 Cable
