P/N: 3211-40003

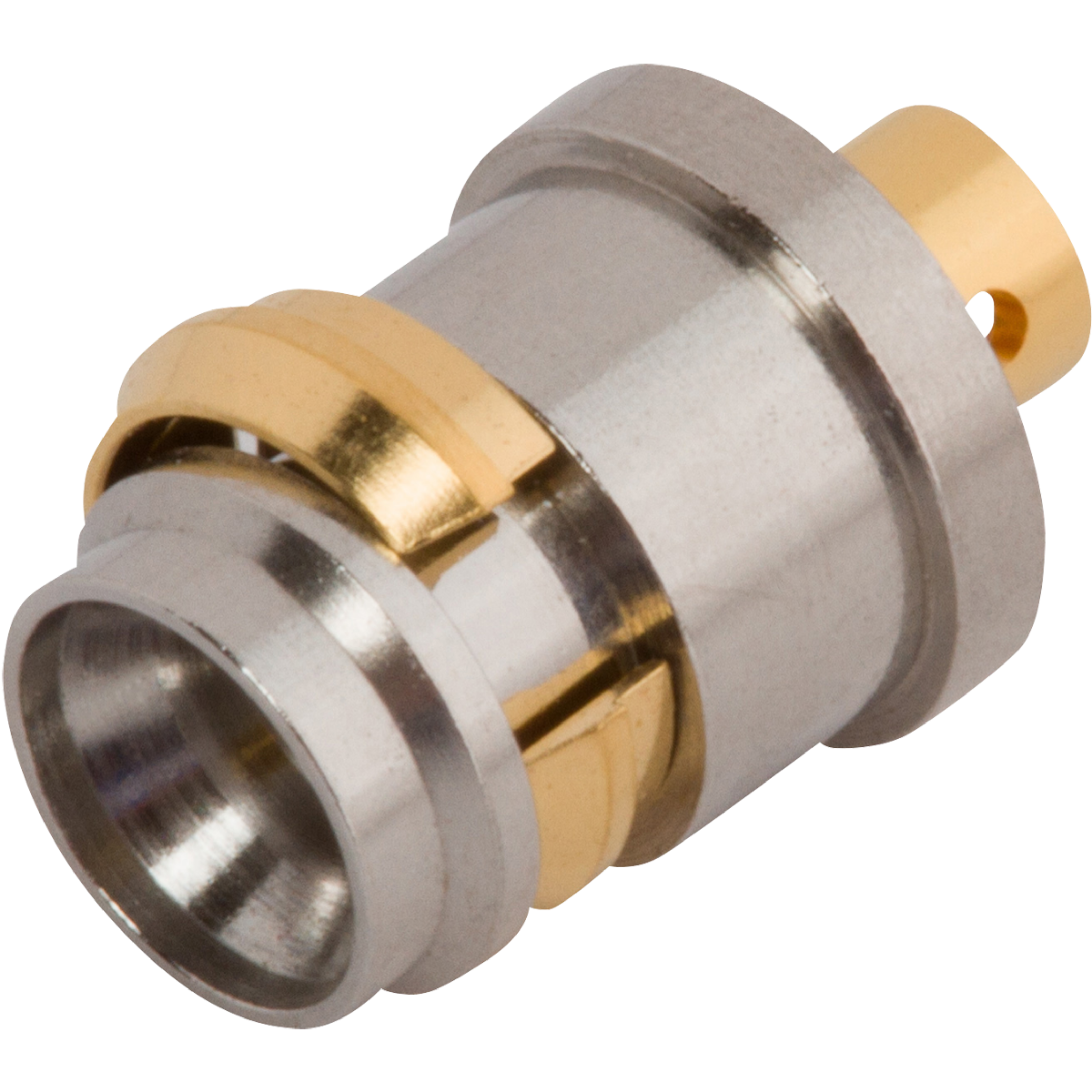

SMPM Male Snap-In Connector for .047 Cable, SB

In stock at Qty Order
Digi-Key Electronics 49
Mouser Electronics 30
Heilind Electronics 12
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Smooth Bore
Mounting Type Snap-in
Termination Style Solder
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Cable Type 0.047 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
