Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Gender | Socket |
| Coupling | Push-on |
| Termination Style | Solder |
| Number of Ports | Single |
| RF Series 2 | VITA SMPM |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Flexible Coax |
| Orientation 2 (Body) | Straight |
| Cable Length | 12" |
| Style | Size 12 |
| Mounting Type | D38999 Series I, III and IV |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Insertion Force | 2.5 lbs (per contact) |
| Mating Cycles | 500 |
| Withdrawal Force | 1.5 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Gender | Socket |
| Coupling | Push-on |
| Termination Style | Solder |
| Number of Ports | Single |
| RF Series 2 | VITA SMPM |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Flexible Coax |
| Orientation 2 (Body) | Straight |
| Cable Length | 12" |
| Style | Size 12 |
| Mounting Type | D38999 Series I, III and IV |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Insertion Force | 2.5 lbs (per contact) |
| Mating Cycles | 500 |
| Withdrawal Force | 1.5 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 7032-10048

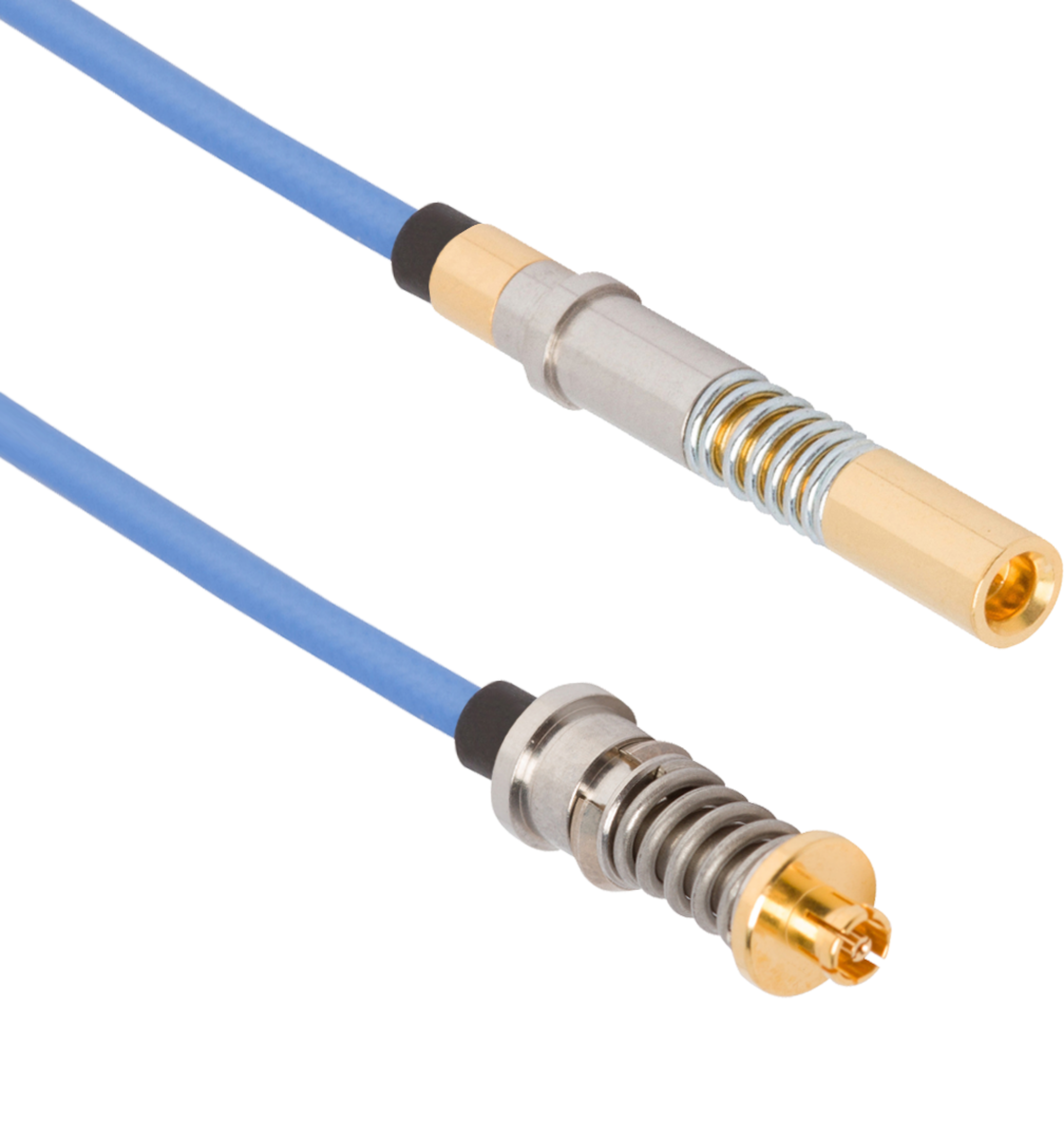

SMPS (Size 16) D38999 Socket to SMPM Female VITA 67.3 12" Cable Assembly for .047 Cable
Available Inventory: 30
7032-10048
VITA Cable Assemblies 7032-10048
Part # 7083-0025
SMPS (Size 16) D38999 Socket to NanoRF Female VITA 67.3 12" Cable Assembly for .047 Cable
Available Inventory: 20
7083-0025
VITA Cable Assemblies 7083-0025
Part # 7083-0023

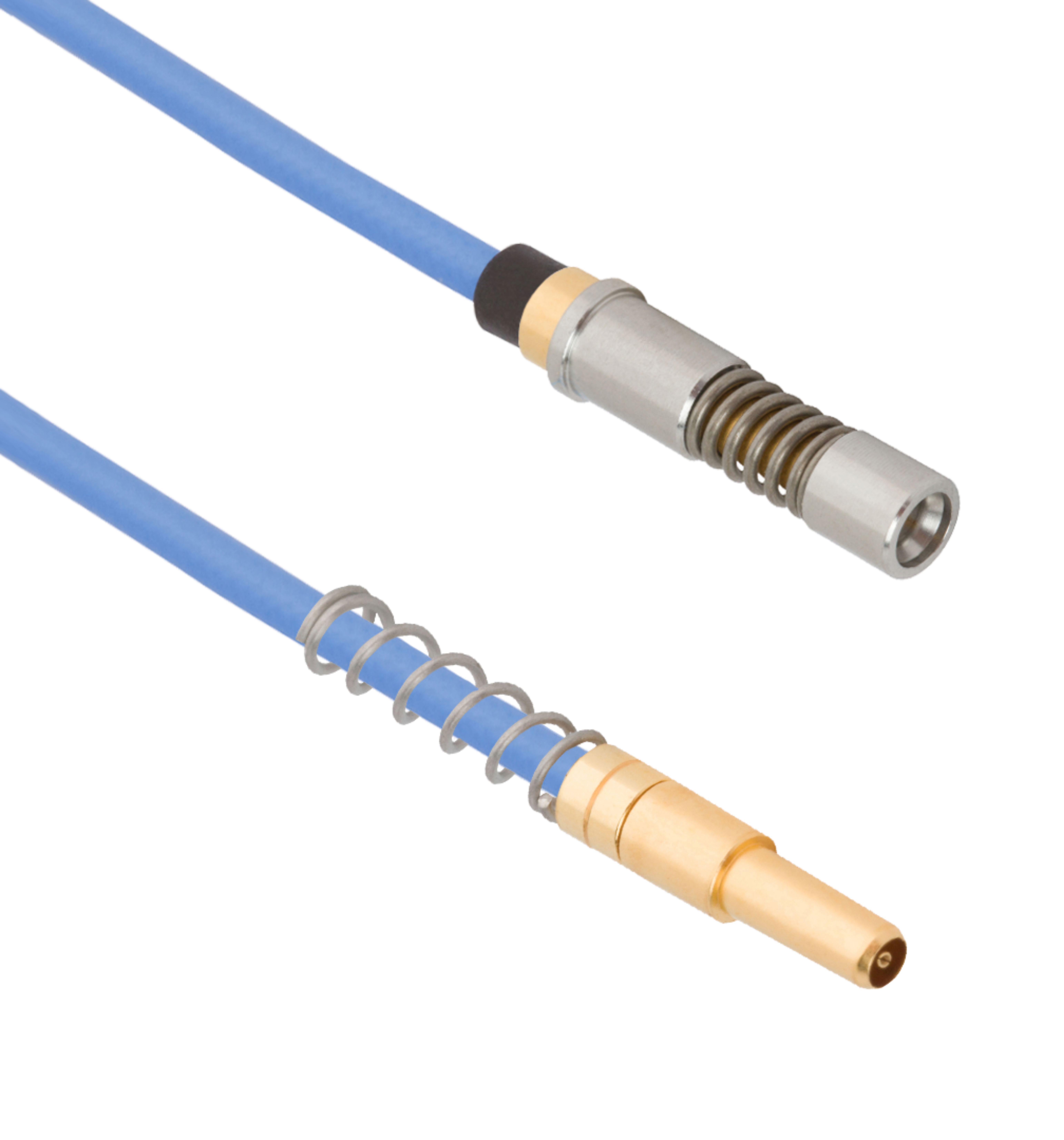

SMPM (Size 12) D38999 Socket to NanoRF Female VITA 67.3 12" Cable Assembly for .047 Cable
