P/N: 8032-4025

SMPM VITA 67.3 Female Contact Termination

In stock at Qty Order
Mouser Electronics 25 On Order
Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Frequency 40 GHz
Number of Ports Single
Impedance 50 ohms
Family VITA 67
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series VITA SMPM
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Frequency 40 GHz
Number of Ports Single
Impedance 50 ohms
Family VITA 67
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   9321-80035

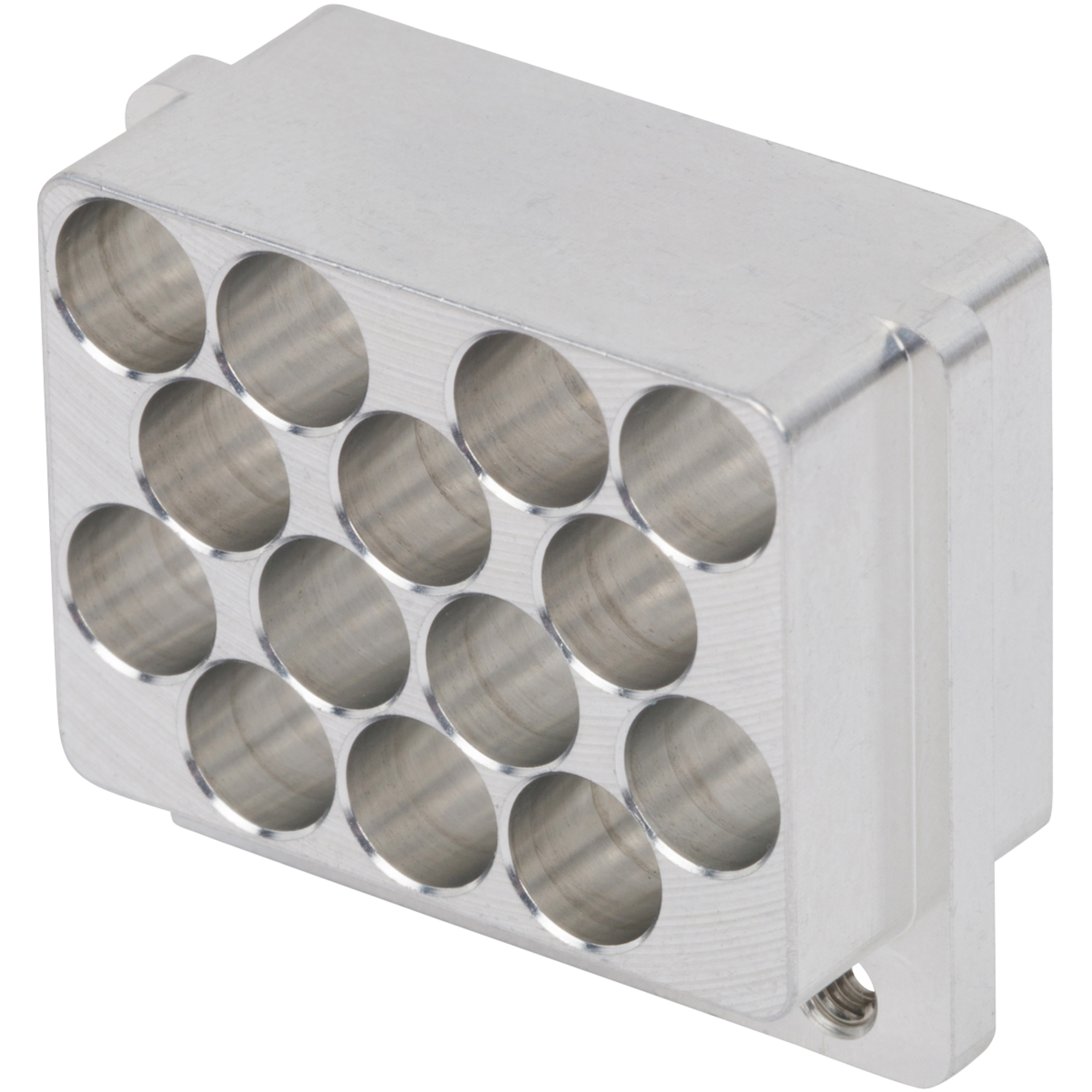

SMPM VITA 67.3 14 Port Aluminum Backplane Module

Available Inventory: 0
9321-80035
VITA Connectors 9321-80035
Datasheet
Part #   9311-80024

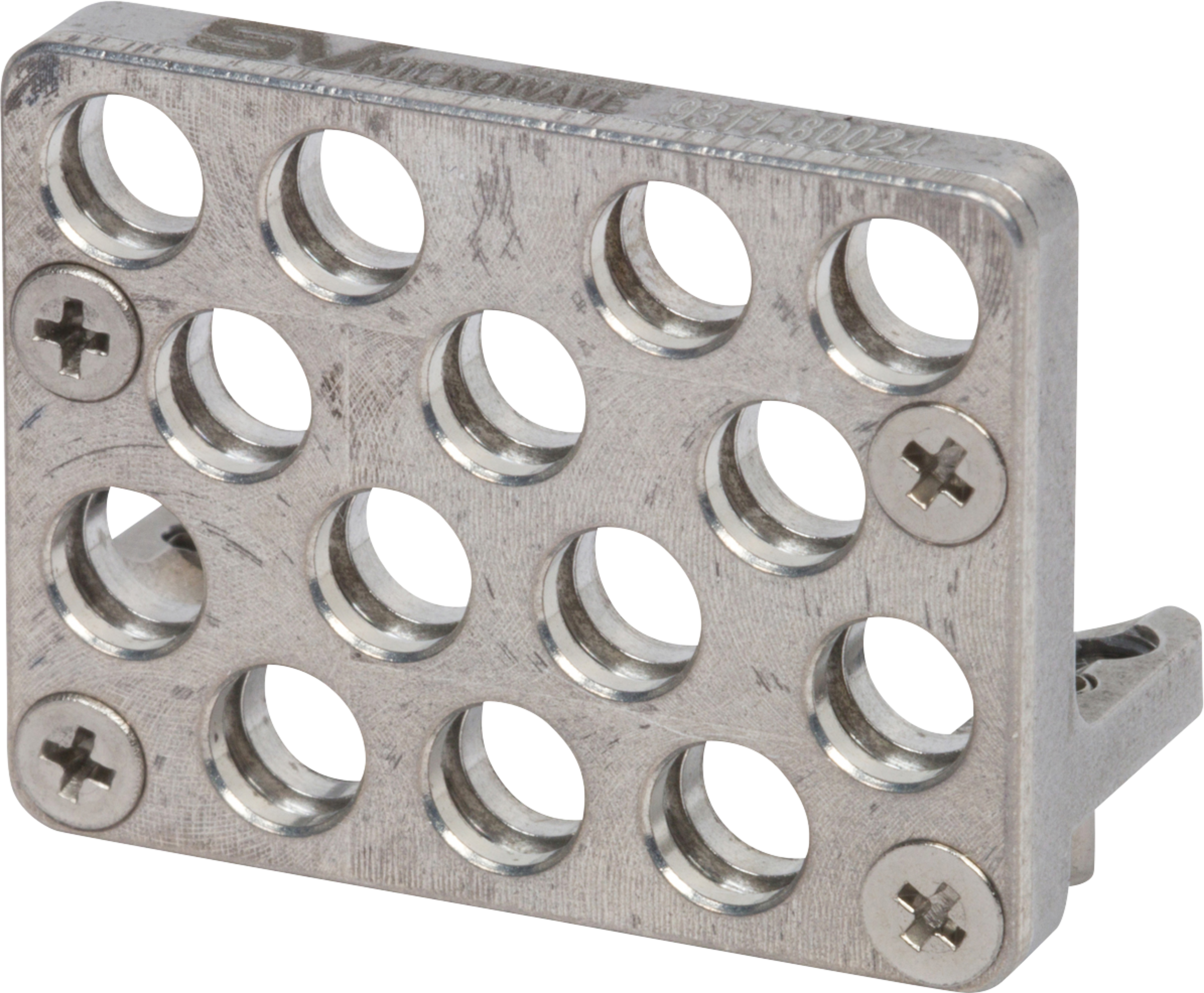

SMPM VITA 67.3 14 Port Aluminum Plug-In Module

Available Inventory: 0
9311-80024
VITA Connectors 9311-80024
Datasheet
Part #   9321-80036

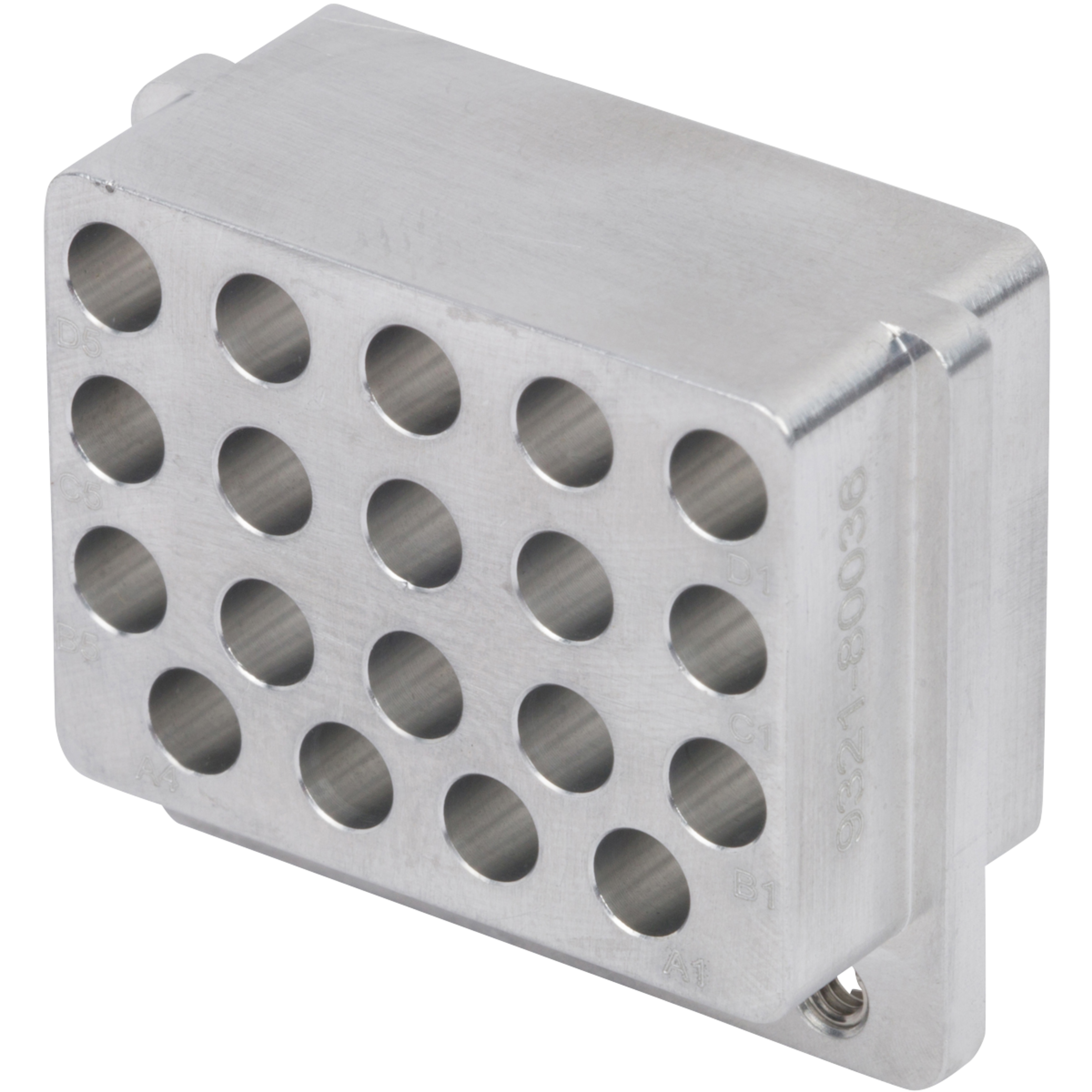

SMPS VITA 67.3 19 Port Aluminum Backplane Module
