Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Multiple |
| Finish | Passivated |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Withdrawal Force | 1.5 lbs |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:31:04 AM |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Multiple |
| Finish | Passivated |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Withdrawal Force | 1.5 lbs |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Related products
8032-4025
VITA SMPM Components 8032-4025
Part # 7521-40002
SMPM Female VITA 67.3 Backplane Contact (75 Ohm) for 1672A Cable
Available Inventory: 100
7521-40002
VITA Connectors 7521-40002
3221-40066
VITA Connectors 3221-40066
3221-40071
VITA Connectors 3221-40071
Part # 7032-7434-120
SMPM Female VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 158
7032-7434-120
VITA Cable Assemblies 7032-7434-120
Part # 7032-9730
SMPM Female VITA 67.3 to SMPM Female VITA 67.3 12" Cable Assembly for .047 Cable
Available Inventory: 52
7032-9730
VITA Cable Assemblies 7032-9730
Part # 7032-9729
SMPM Female VITA 67.3 to SMPM Female VITA 67.3 12" Cable Assembly for .085 Cable
Available Inventory: 49
7032-9729
VITA Cable Assemblies 7032-9729
Part # 7032-9735
SMPM Female VITA 67.3 to SMPM Female VITA 67.3 6" Cable Assembly for .047 Cable
Available Inventory: 52
7032-9735
VITA Cable Assemblies 7032-9735
Part # 7032-9734
SMPM Female VITA 67.3 to SMPM Female VITA 67.3 6" Cable Assembly for .085 Cable
Available Inventory: 41
7032-9734
VITA Cable Assemblies 7032-9734
Part # 7032-7434-180
SMPM Female VITA 67.3 to SMA Male 18" Cable Assembly for .085 Cable
Available Inventory: 115
7032-7434-180
VITA Cable Assemblies 7032-7434-180
Part # 7032-7435-120
SMPM Female VITA 67.3 to 2.92mm Male 12" Cable Assembly for .085 Cable
Available Inventory: 44
7032-7435-120
VITA Cable Assemblies 7032-7435-120
Part # 7032-7435-180
SMPM Female VITA 67.3 to 2.92mm Male 18" Cable Assembly for .085 Cable
Available Inventory: 74
7032-7435-180
VITA Cable Assemblies 7032-7435-180
Part # 7032-9728
SMPM Female VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable
Available Inventory: 106
7032-9728
VITA Cable Assemblies 7032-9728
Part # 7032-9733
SMPM Female VITA 67.3 to SMA Male 6" Cable Assembly for .047 Cable
Available Inventory: 159
7032-9733
VITA Cable Assemblies 7032-9733
Part # 7032-9726
SMPM Female VITA 67.3 to SMA Male R/A 12" Cable Assembly for .047 Cable
Available Inventory: 60
7032-9726
VITA Cable Assemblies 7032-9726
Part # 7032-9732
SMPM Female VITA 67.3 to SMA Male R/A 6" Cable Assembly for .047 Cable
Available Inventory: 60
7032-9732
VITA Cable Assemblies 7032-9732
Part # 7032-7841
SMPM Male VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable
Available Inventory: 9
7032-7841
VITA Cable Assemblies 7032-7841
Customers Also Viewed
Part # 9321-60109

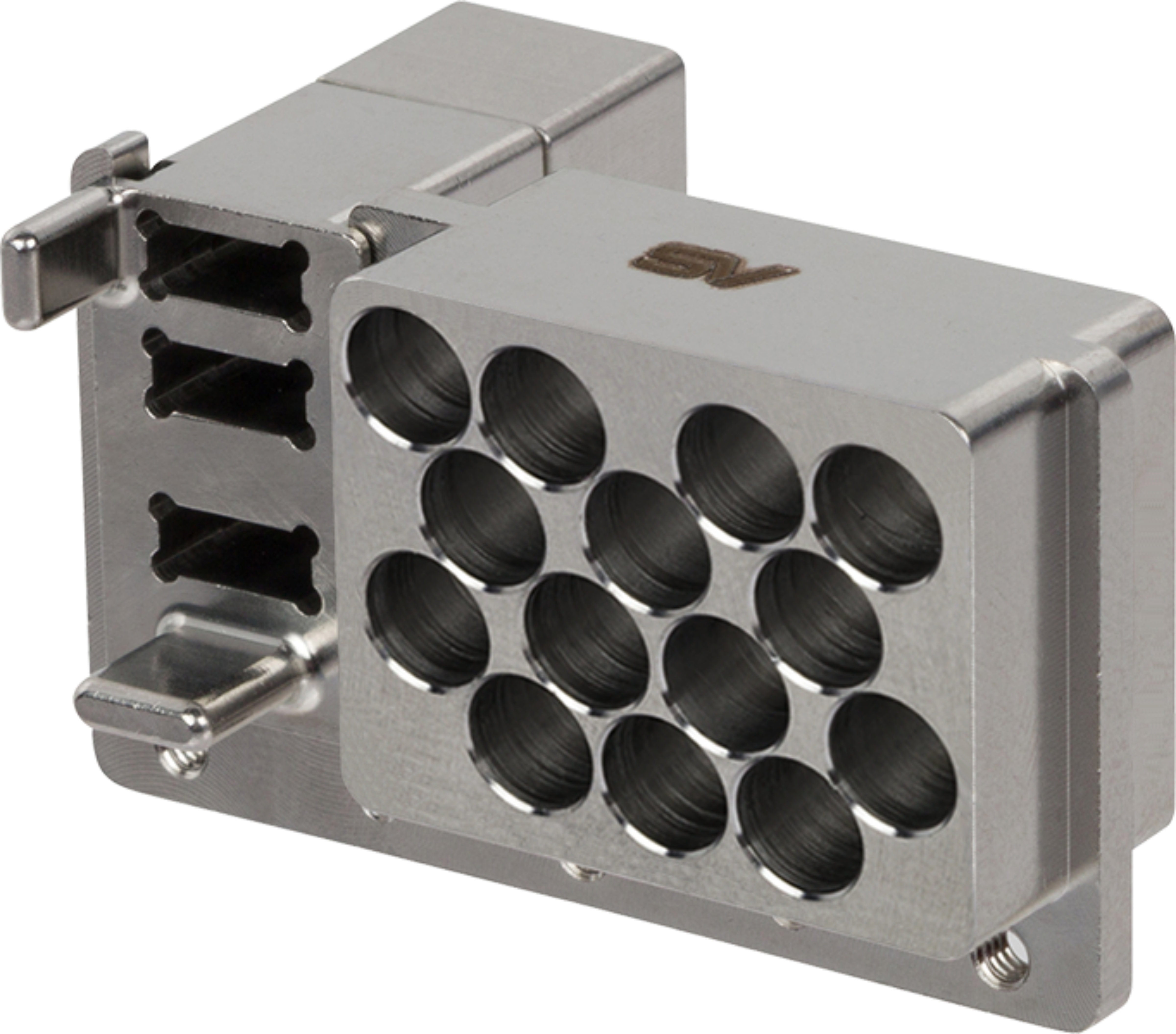

SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Backplane Hybrid Module
