SMPS Female to SMPS Female R/A 12" Cable Assembly for .047 Cable
P/N: 7038-0252

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Orientation (Body) Straight
Number of Ports Single
Termination Style Solder
Coupling Push-on
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
RF Series 2 SMPS
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:14:04 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Orientation (Body) Straight
Number of Ports Single
Termination Style Solder
Coupling Push-on
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
RF Series 2 SMPS
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

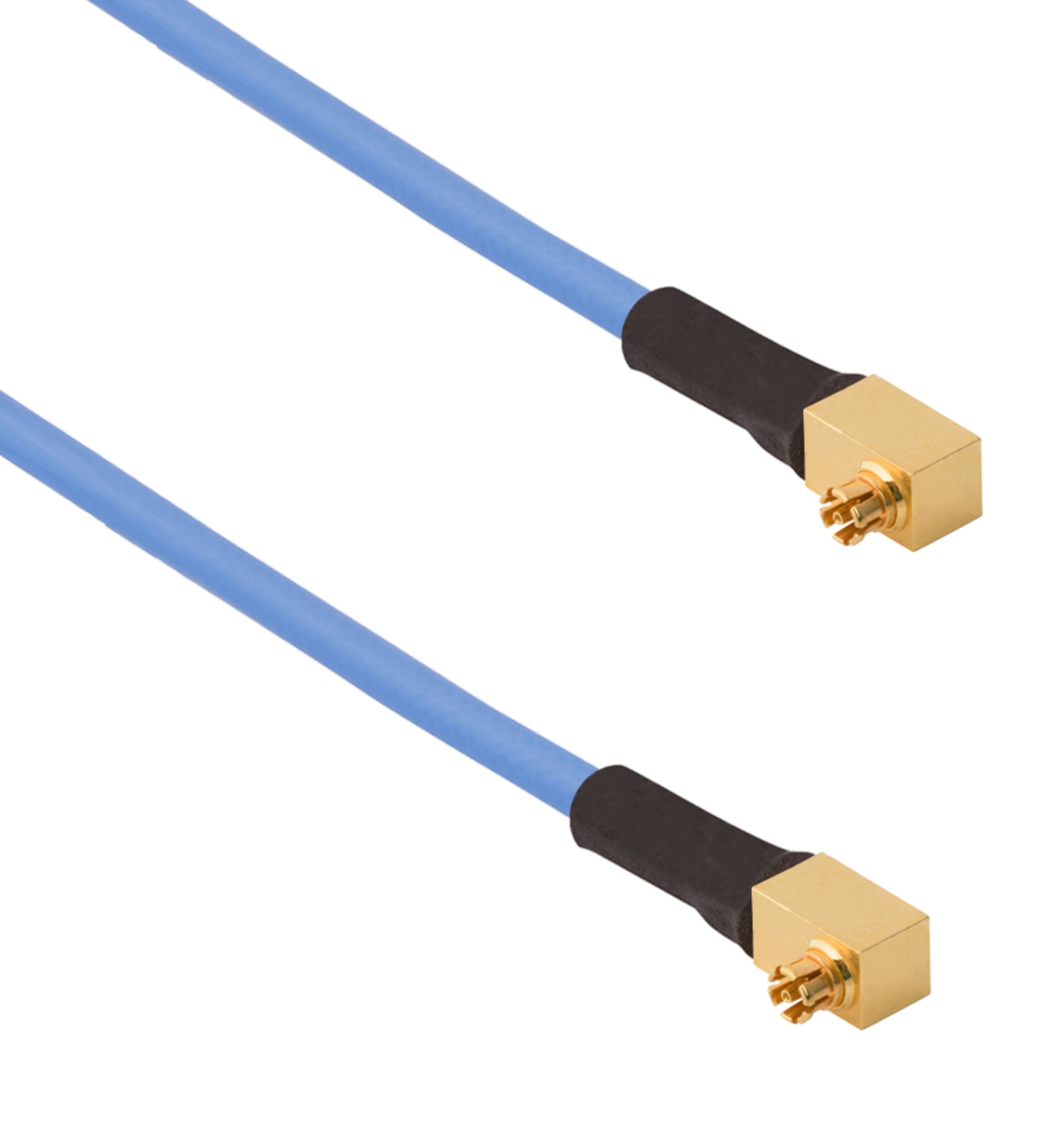

Part #   7038-0249

SMPS Female R/A to SMPS Female R/A 6" Cable Assembly for .047 Cable

Available Inventory: 9
7038-0249
SMPS Cable Assemblies 7038-0249
Datasheet
7038-0250
SMPS Cable Assemblies 7038-0250
Datasheet

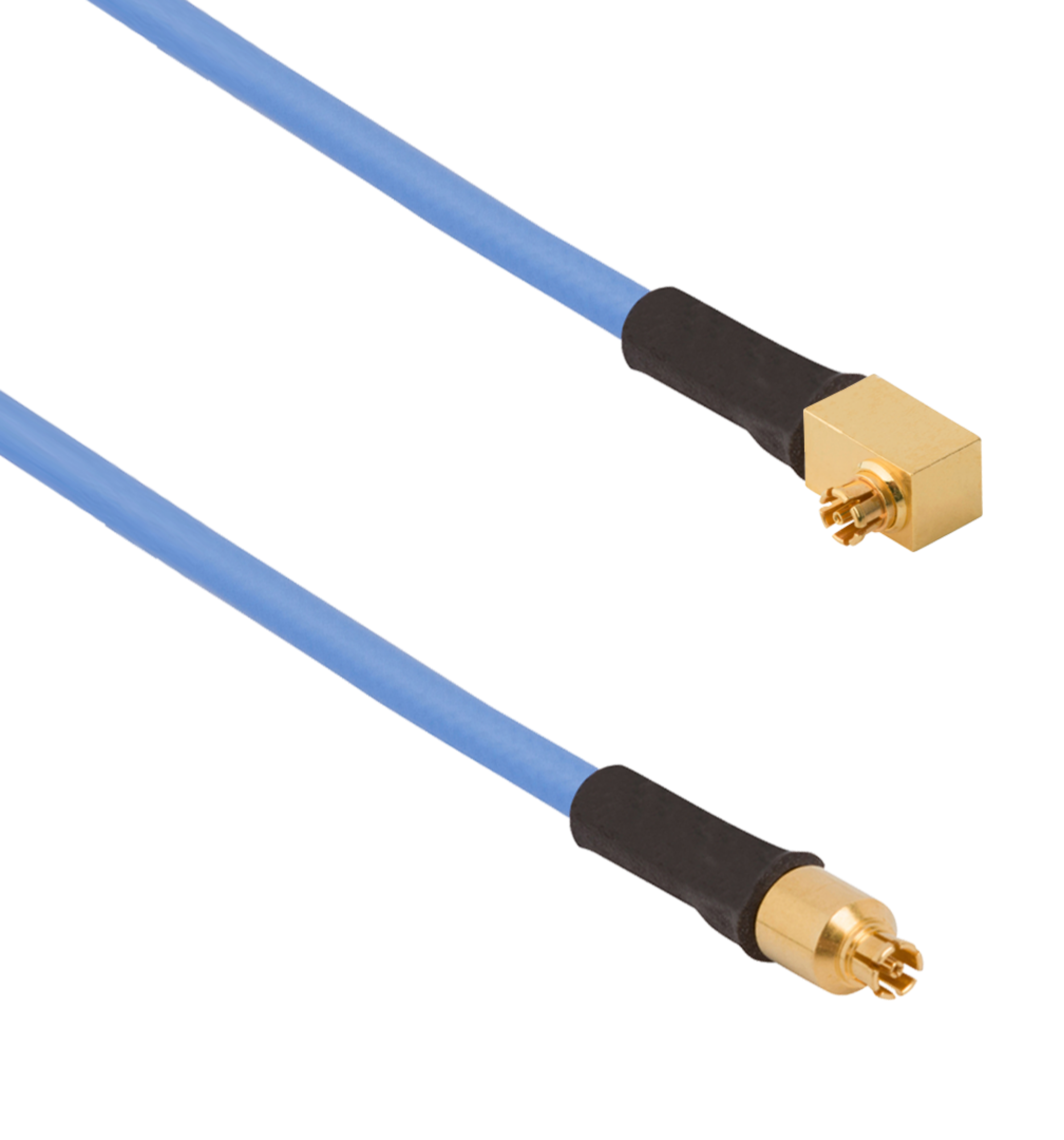

Part #   7038-0251
