P/N: 9321-60108

SMPS VITA 66.5 19 Port RF and 3 Port MT Fiber Backplane Hybrid Module

In stock at Qty Order
Mouser Electronics 10 On Order
Products specifications
Attribute name Attribute value
RF Series VITA SMPS
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Frequency 100 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 100 GHz
Mating Cycles 500
Mechanical
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series VITA SMPS
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Frequency 100 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 100 GHz
Mating Cycles 500
Mechanical
Insertion Force 1.2 lbs (per contact)
Withdrawal Force 1.0 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   9321-60109

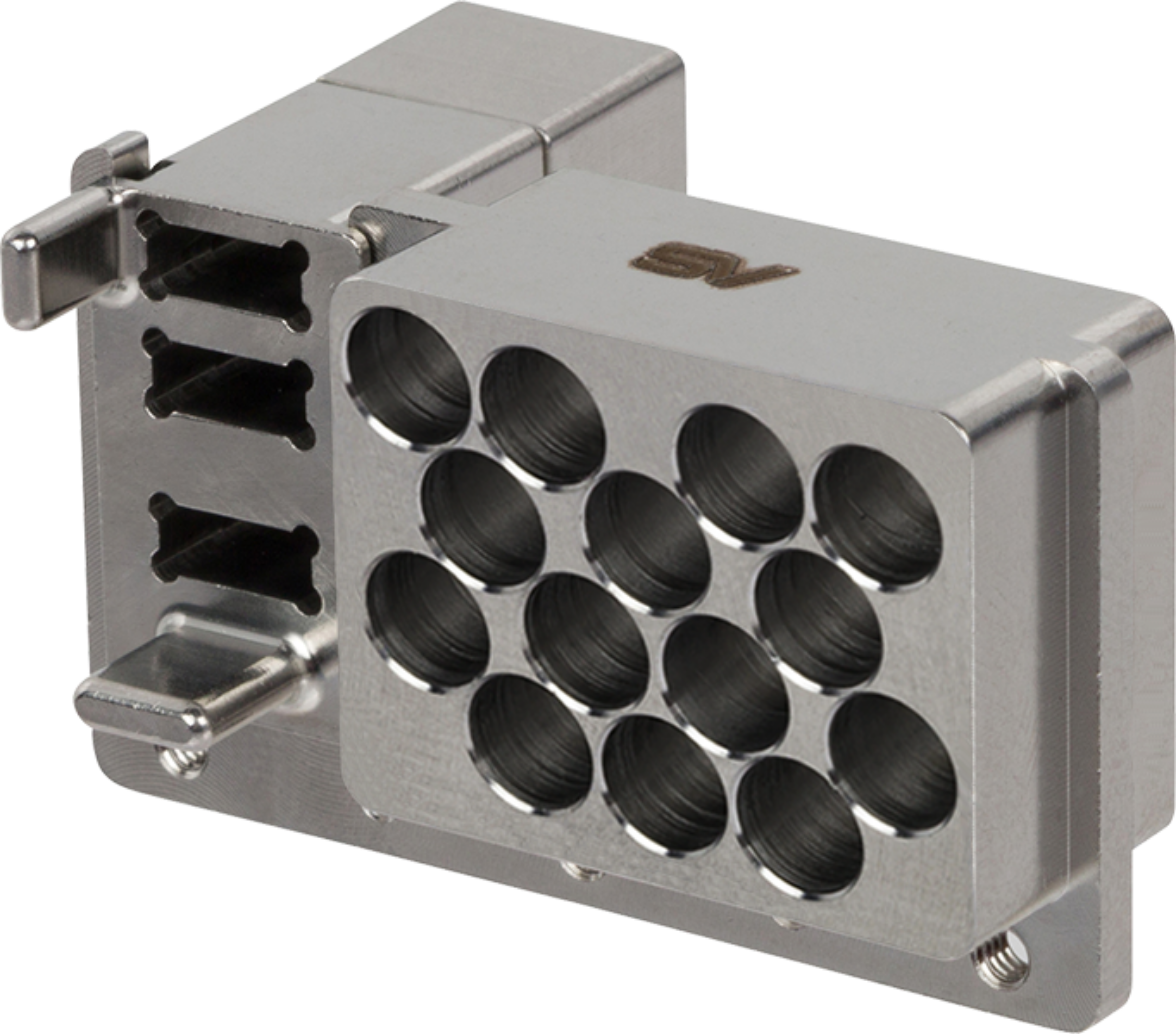

SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Backplane Hybrid Module

Available Inventory: 0
9321-60109
VITA Connectors 9321-60109
Datasheet
Part #   9311-60215

SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Plug-In Hybrid Module

Available Inventory: 0
9311-60215
VITA Connectors 9311-60215
Datasheet
Part #   8038-4009

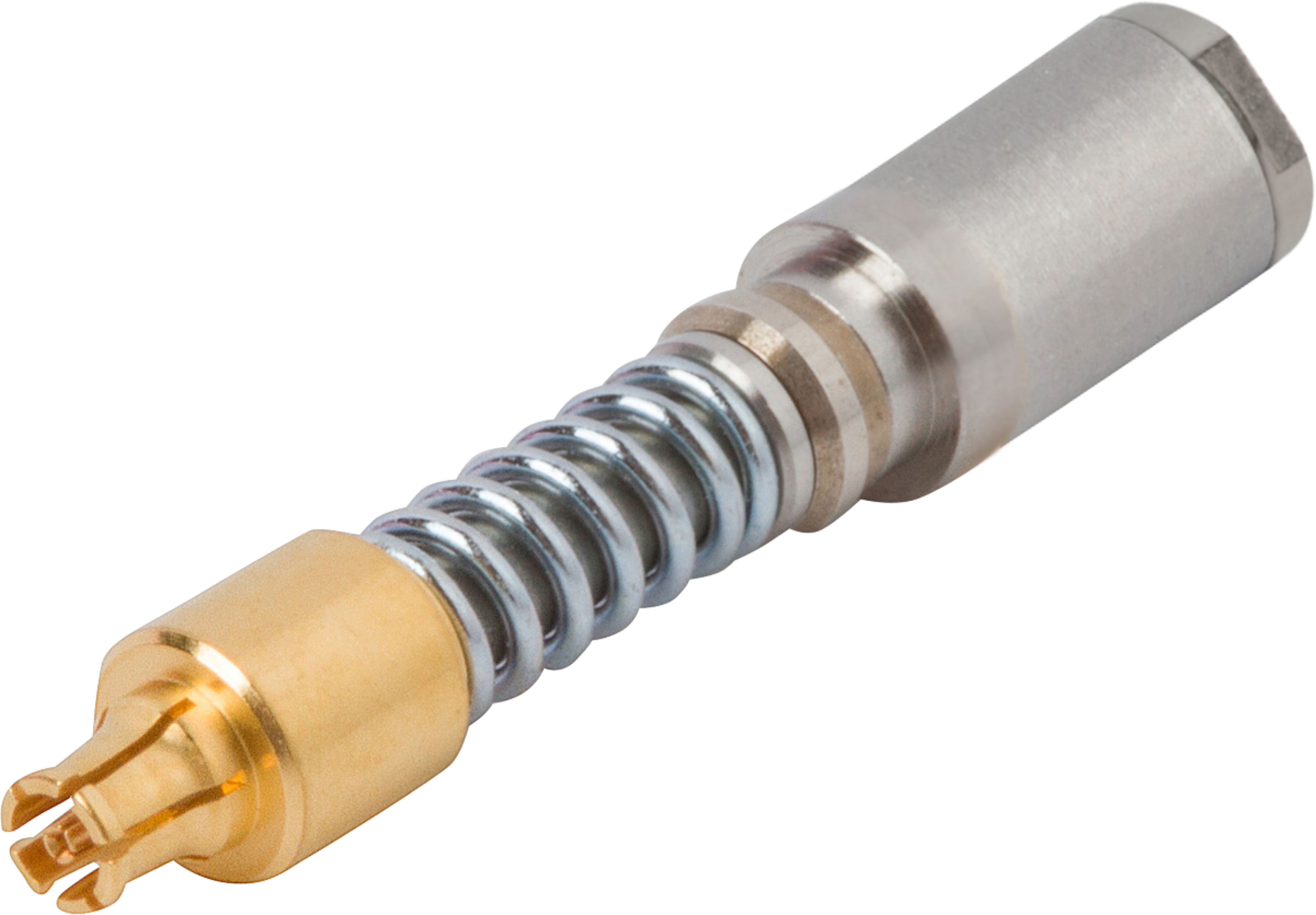

SMPS VITA 67.3 Female Contact Termination
