Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | VITA SMPM |
| Mounting Type | Snap-in |
| Orientation (Body) | Straight |
| Number of Ports | Multiple |
| Coupling | Push-on |
| Finish | Passivated |
| Family | SOSA Aligned |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Need a Complete RF/Fiber Solution? |
|
 |

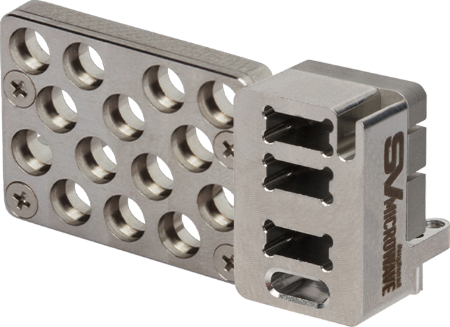

To populate SV Microwave's 3 Port MT Fiber Module with a fiber cable assembly, please contact Amphenol Fiber Systems International. [email protected] |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | VITA SMPM |
| Mounting Type | Snap-in |
| Orientation (Body) | Straight |
| Number of Ports | Multiple |
| Coupling | Push-on |
| Finish | Passivated |
| Family | SOSA Aligned |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
Part # 7511-60002
SMPM Male VITA 67.3 Plug-In Contact (75 Ohm) for 1672A Cable
Available Inventory: 100
7511-60002
VITA Connectors 7511-60002
3211-60350
VITA Connectors 3211-60350
3211-60351
VITA Connectors 3211-60351
Part # 7032-7840
SMPM Male VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 66
7032-7840
VITA Cable Assemblies 7032-7840
Customers Also Viewed
Part # 9321-60109

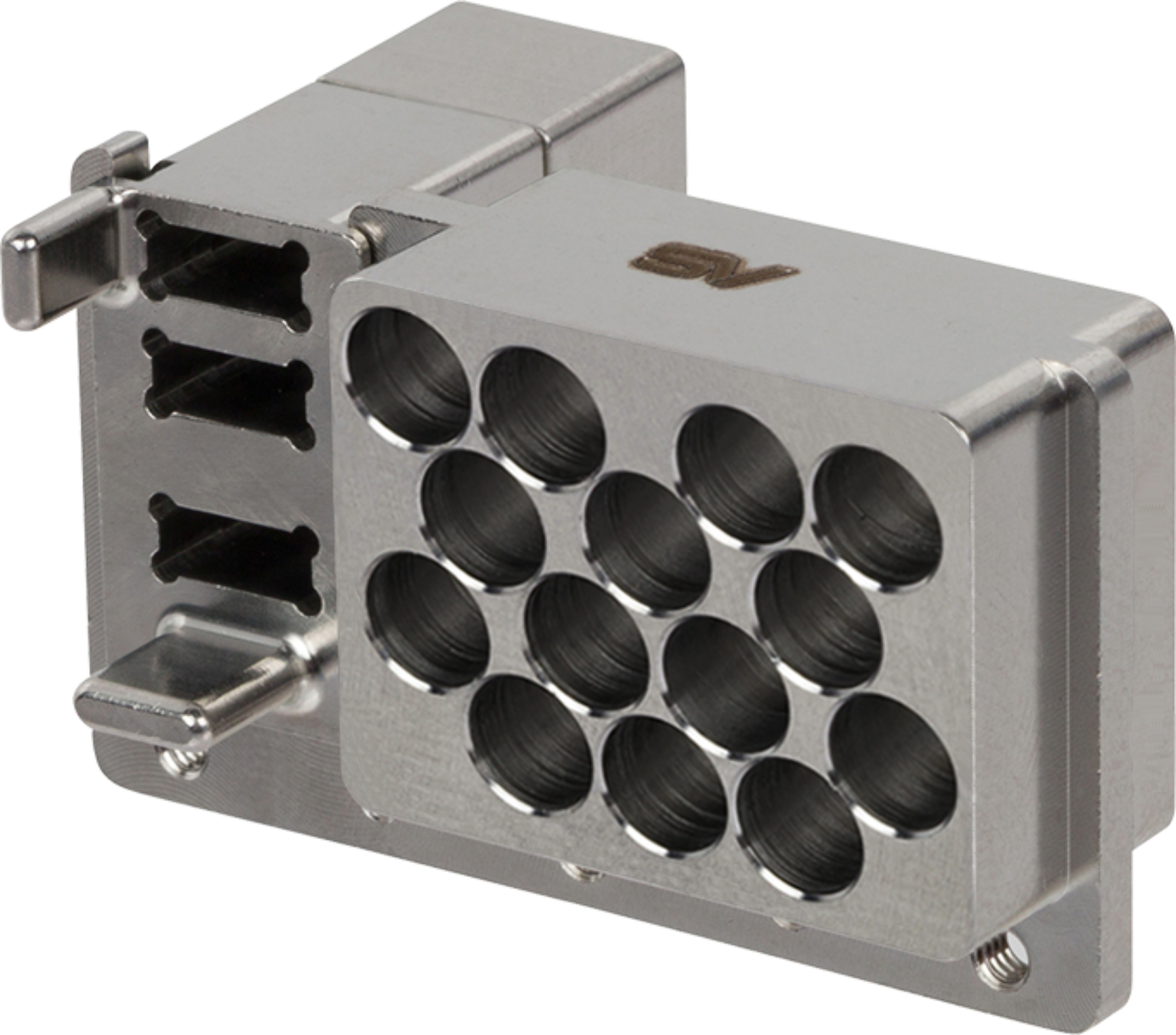

SMPM VITA 66.5 14 Port RF and 3 Port MT Fiber Backplane Hybrid Module
