SV20 Socket Micro38999 Contact (Size 20HD) for .047 Cable
P/N: 2051-60002

Name: SV20 Socket Micro38999 Contact (Size 20HD) for .047 Cable
SKU: 2051-60002
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Gender	Socket
Cable Type	0.047 Flexible Coax
Mounting Type	Micro38999 2M, Series 80, MIL-DTL-32689
Style	Size 20
Orientation (Body)	Straight
Coupling	Push-on
Finish	Passivated
RF Series	SV20
Electrical
Impedance	50 ohms
Frequency	40 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	150 VRMS
Mechanical
Mating Cycles	500
Environmental
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

Product tags

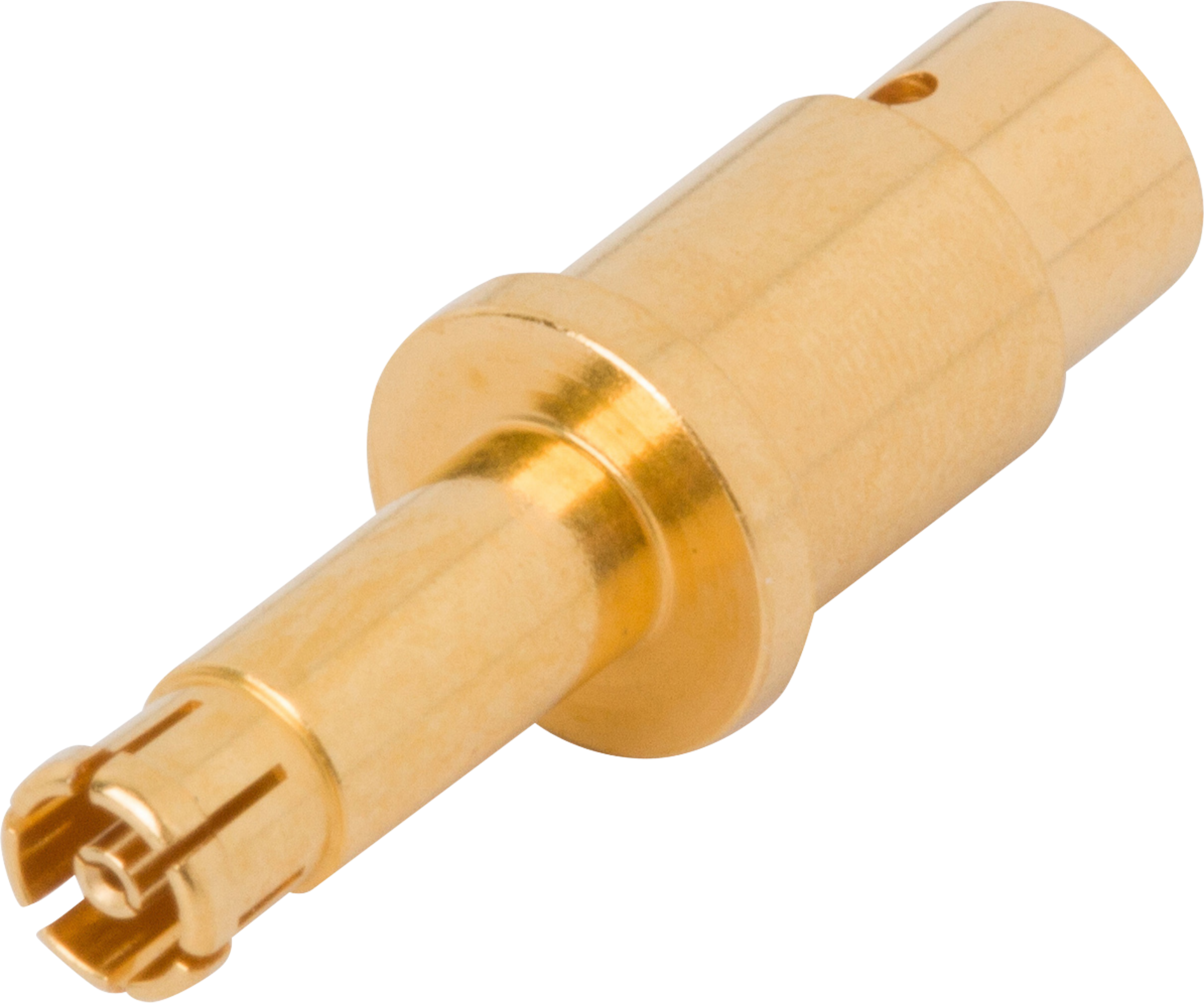

SMPS Pin D38999 Contact (Size 16) for .047 Cable
