Threaded SMPM RF Cable Assemblies Are in Stock
SV Microwave’s Threaded SMPM RF Cable Assemblies are in stock now with distribution. These high-performance coaxial cable assemblies are ideal for applications requiring high density and high frequency. One end features our proprietary Threaded SMPM connector with a standard SMPM interface and an additional threaded coupling nut, which provides extra captivation. As such, this is ideal for high vibration environments. Learn more about the product line.
Top Features
- It features a standard SMPM RF interface
- Tool-free assemblies can be done even in tight spaces
- Frequency of DC - up to 18 GHz
- Electrical impedance 50 ohms
- Mating cycles SB 500 and FD 100
- Dielectric Withstanding Voltage is 325 VRMS
- It has superior vibration and shock resistance
Applications
- Ideal for high-vibration environments
- Military and Aerospace applications
- Applicable in power drivers and combiners
- Test and Instrumentation applications
Product’s Part Number and Description
| Part No. | Description |

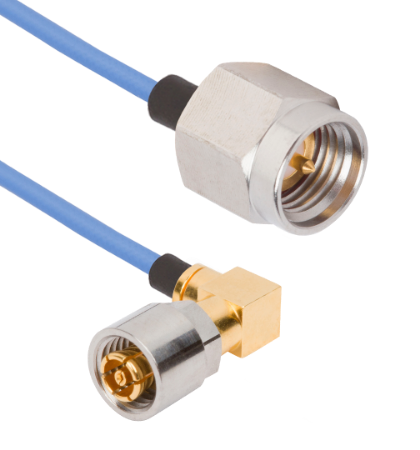

| Threaded SMPM Female R/A to SMA Male 12" Cable Assembly for .047 Cable |
| Threaded SMPM Female R/A to SMA Male 12" Cable Assembly for .085 Cable |
| Threaded SMPM Female to SMA Male 12" Cable Assembly for .047 Cable |
| Threaded SMPM Female to SMA Male 12" Cable Assembly for .085 Cable |
