TNC Female Dust Cap, Wire Rope
P/N: M39012/25-0118

In stock at Qty Order
TTI Inc Global Headquarters 242
Digi-Key Electronics 95
Mouser Electronics 52
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Orientation (Body) Straight
Number of Ports Single
Coupling Threaded
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:06:34 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Orientation (Body) Straight
Number of Ports Single
Coupling Threaded
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/25-0019

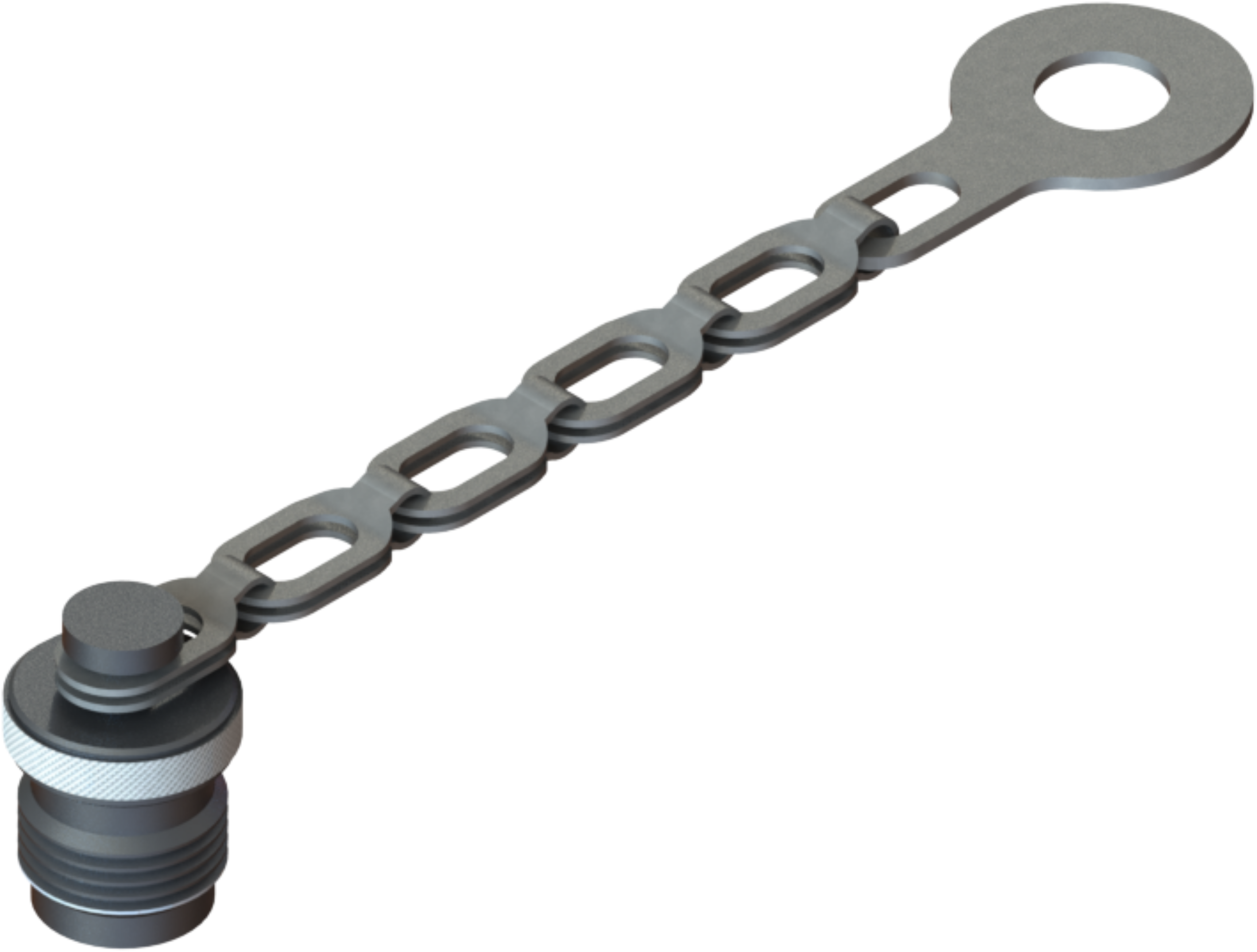

TNC Female Dust Cap, Safety Chain

Available Inventory: 165
M39012/25-0019
TNC Components M39012/25-0019
Datasheet
Part #   M39012/25-3024

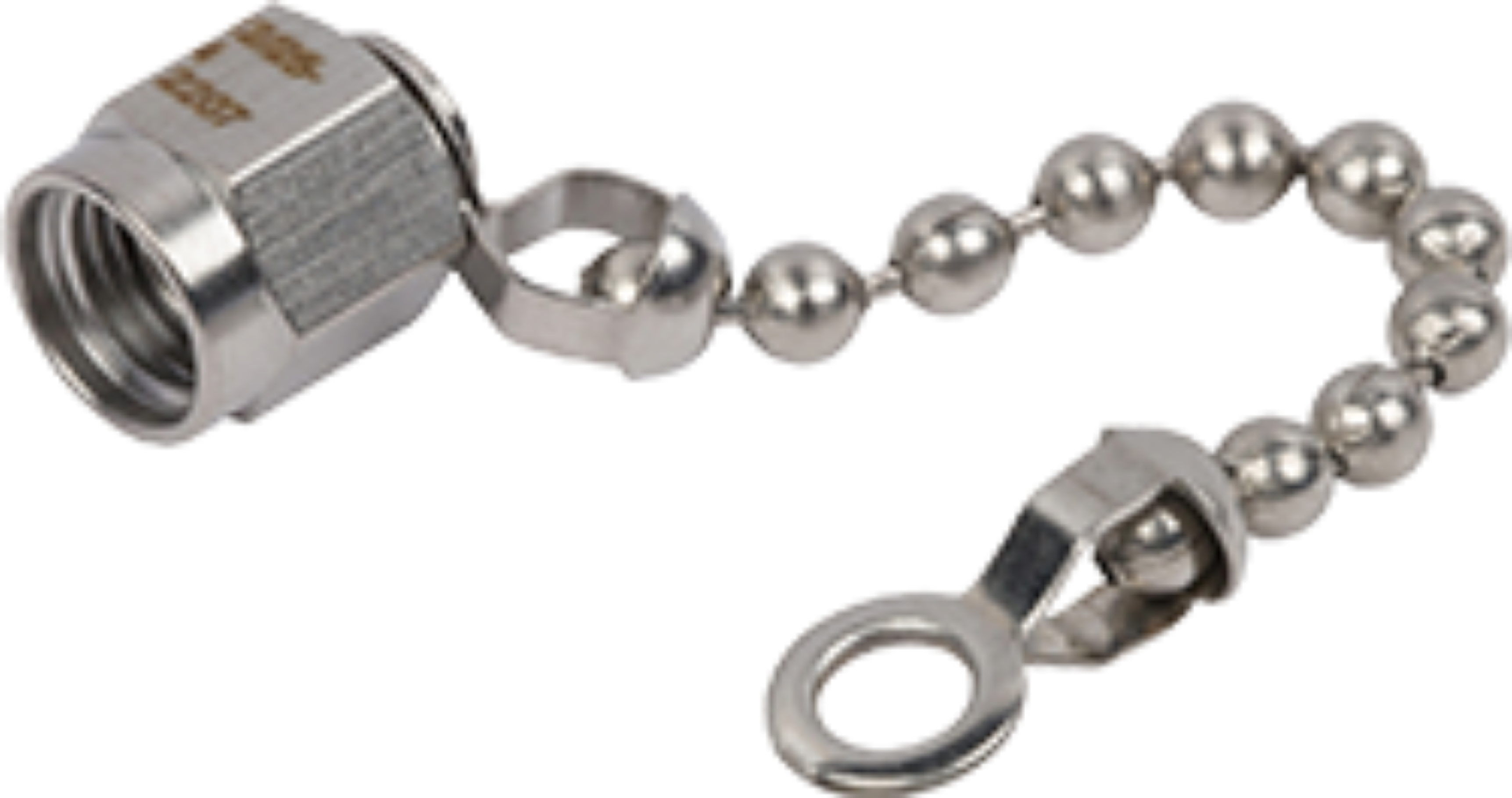

SMA Male Dust Cap, Bead Chain

Available Inventory: 2471
M39012/25-3024
SMA Components M39012/25-3024
Datasheet
Part #   M39012/25-3025

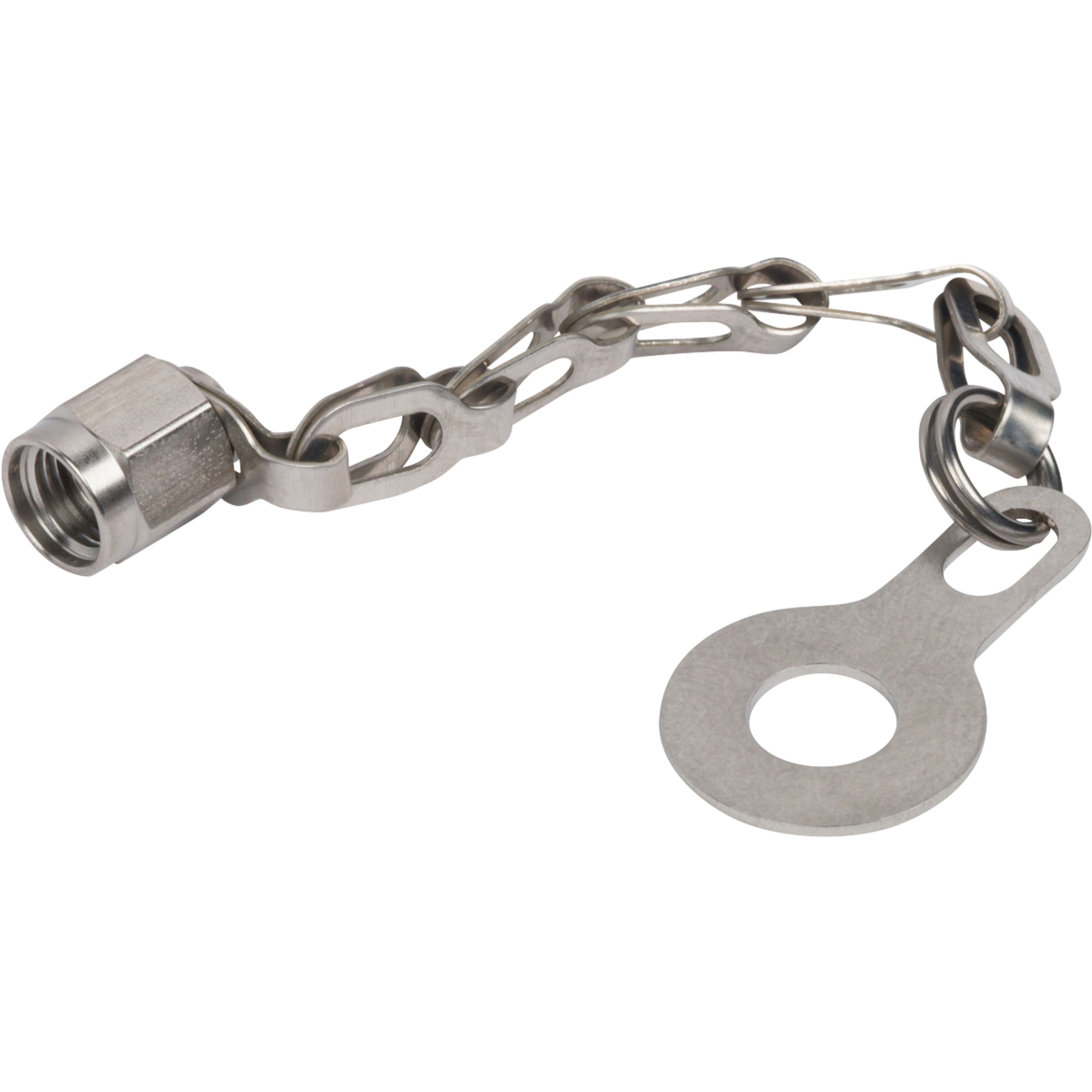

SMA Male Dust Cap, Link Chain
