P/N: M39012/25-0019

TNC Female Dust Cap, Safety Chain

In stock at Qty Order
AVNET Electronics Marketing 93
Mouser Electronics 70
Microwave Components LLC 3
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Electrical
Frequency 11 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1500 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Electrical
Frequency 11 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1500 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed

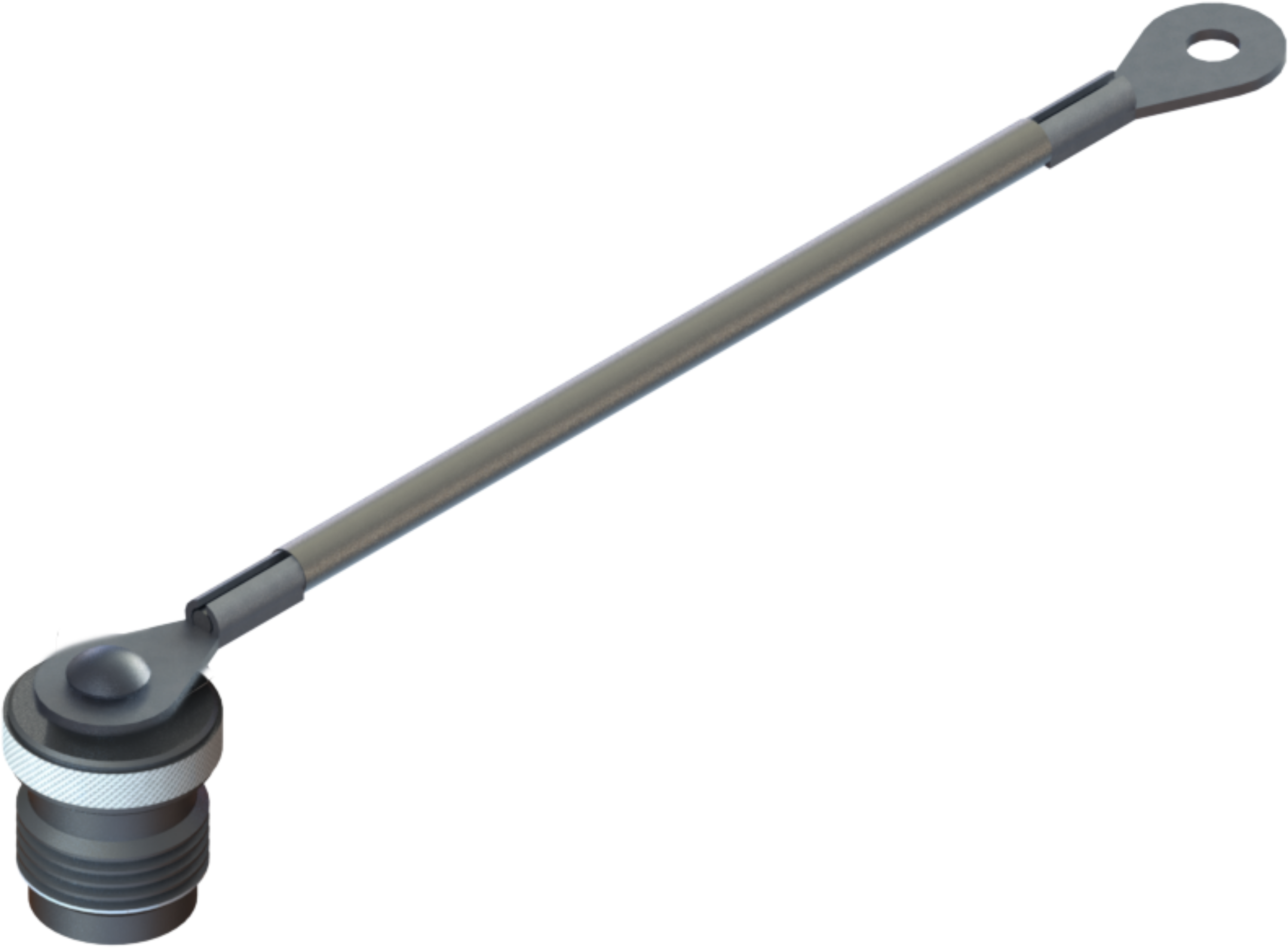

Part #   M39012/25-0118

TNC Female Dust Cap, Wire Rope

Available Inventory: 264
M39012/25-0118
TNC Components M39012/25-0118
Datasheet

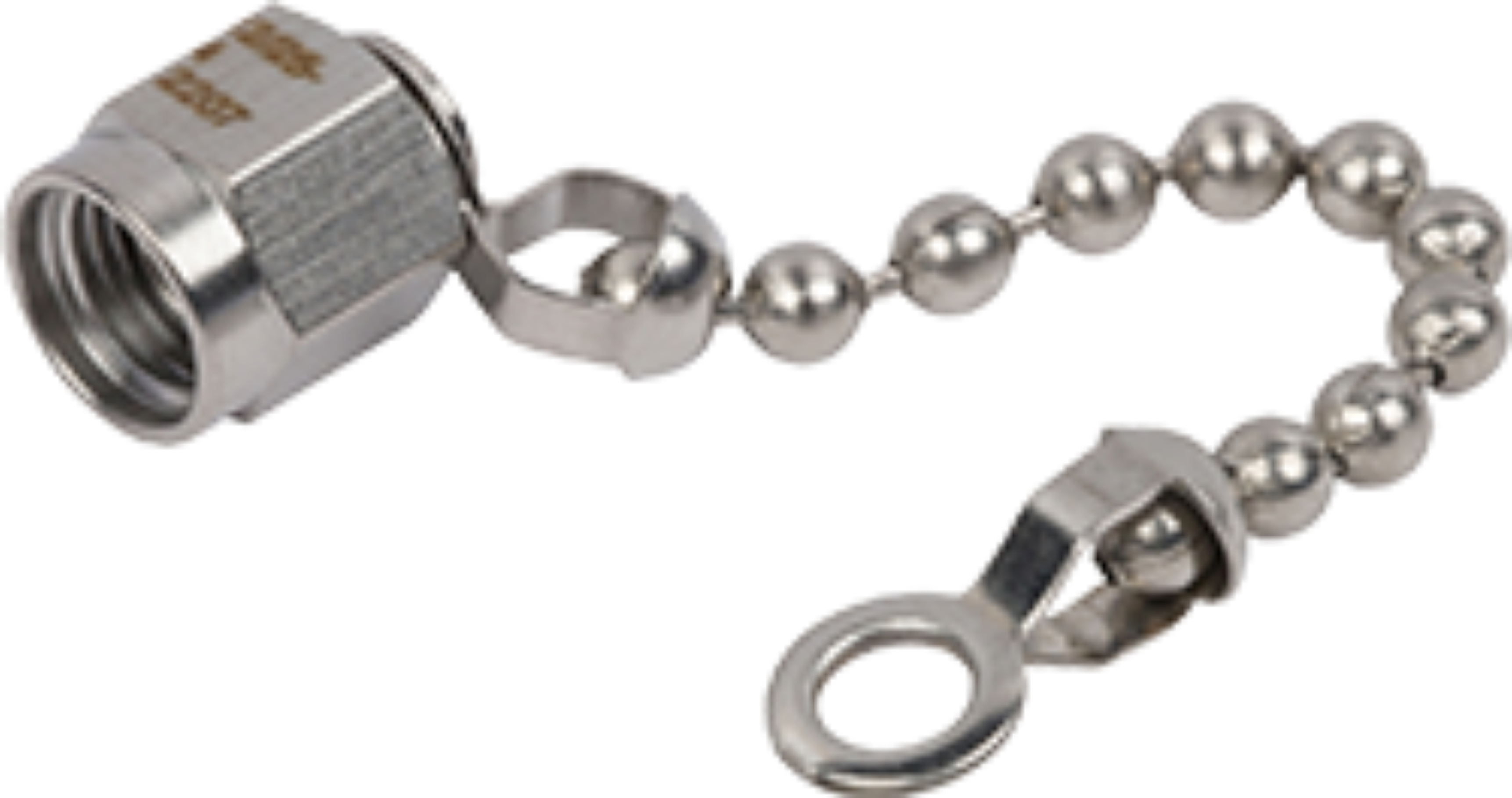

Part #   M39012/25-3024

SMA Male Dust Cap, Bead Chain

Available Inventory: 1523
M39012/25-3024
SMA Components M39012/25-3024
Datasheet

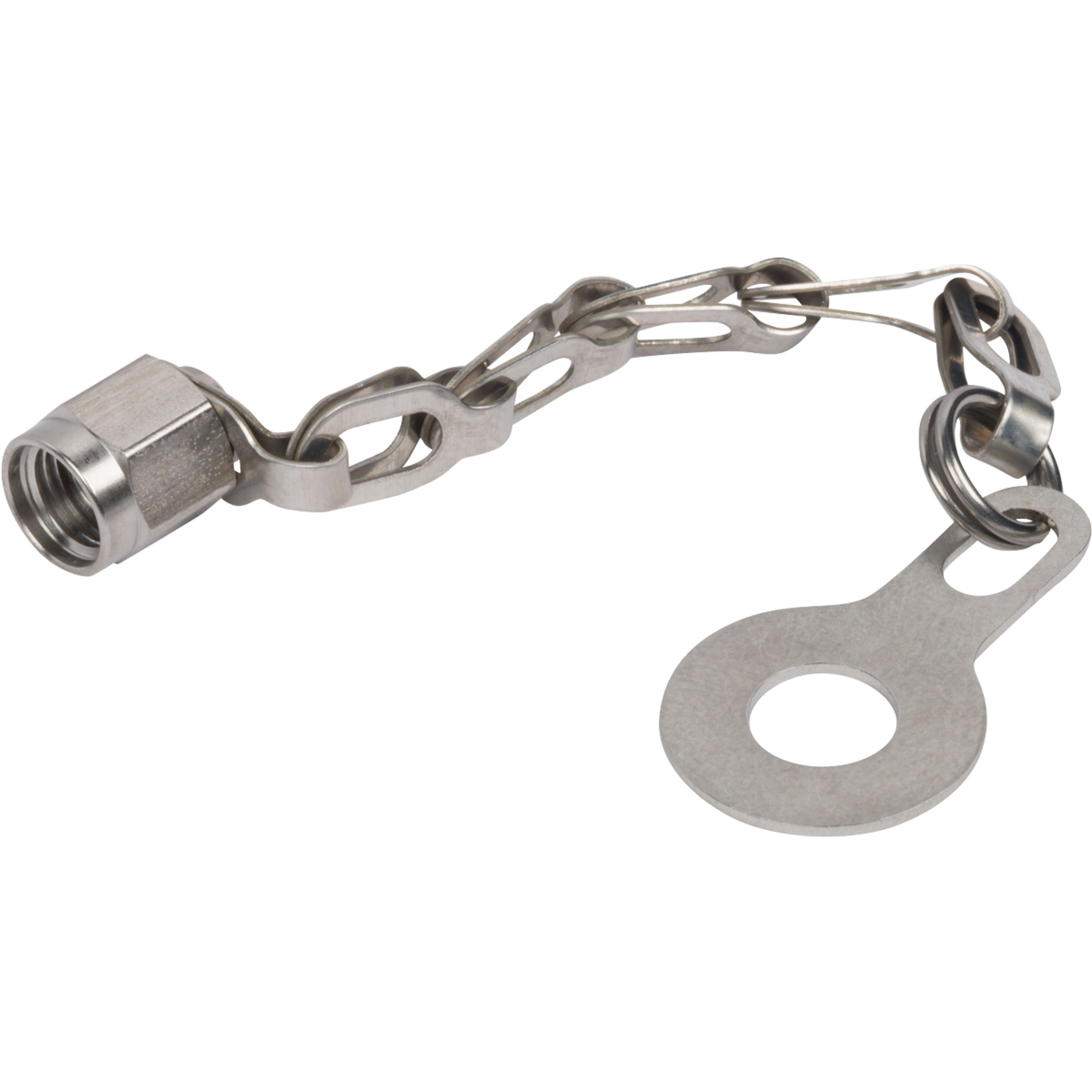

Part #   M39012/25-3025
