P/N: M39012/30B0005

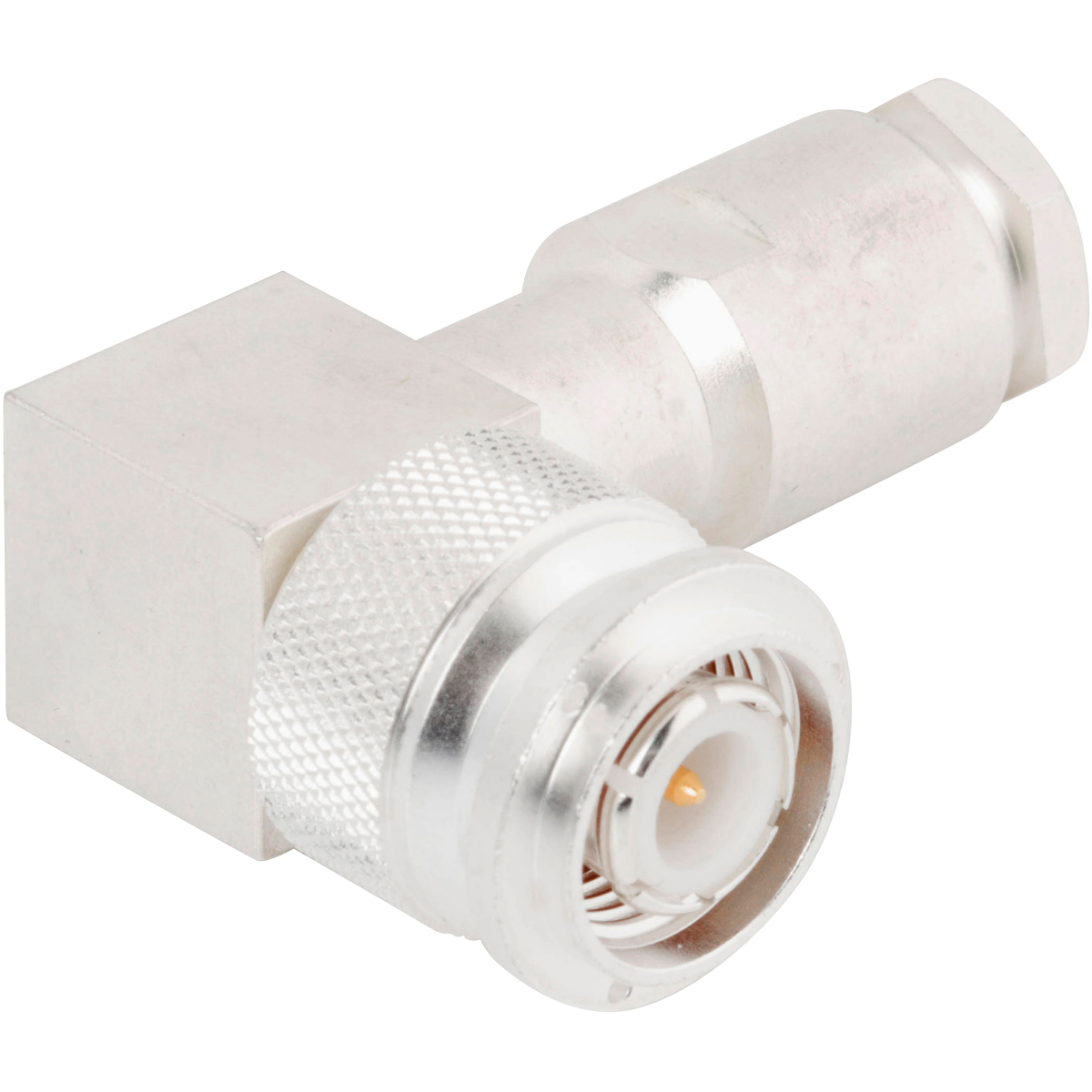

TNC Male Connector, R/A for RG-58 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series TNC
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Frequency 11 GHz
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Frequency 11 GHz
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/30-0101

TNC Male Connector, R/A for RG-58 Cable

Available Inventory: 1205
M39012/30-0101
TNC Connectors M39012/30-0101
Datasheet
Part #   M39012/55B3015

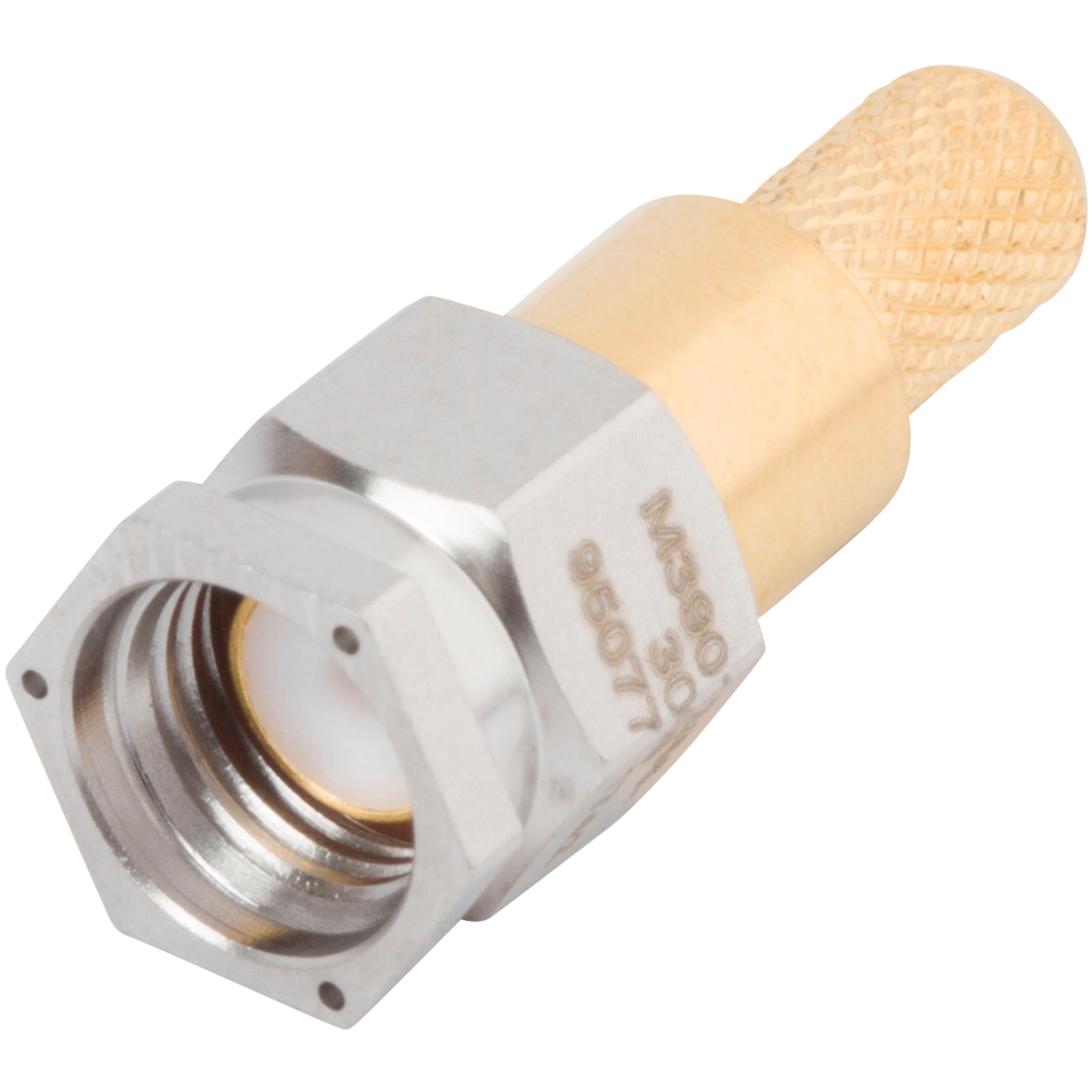

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 323
M39012/55B3015
SMA Connectors M39012/55B3015
Datasheet
Part #   M39012/30B0015

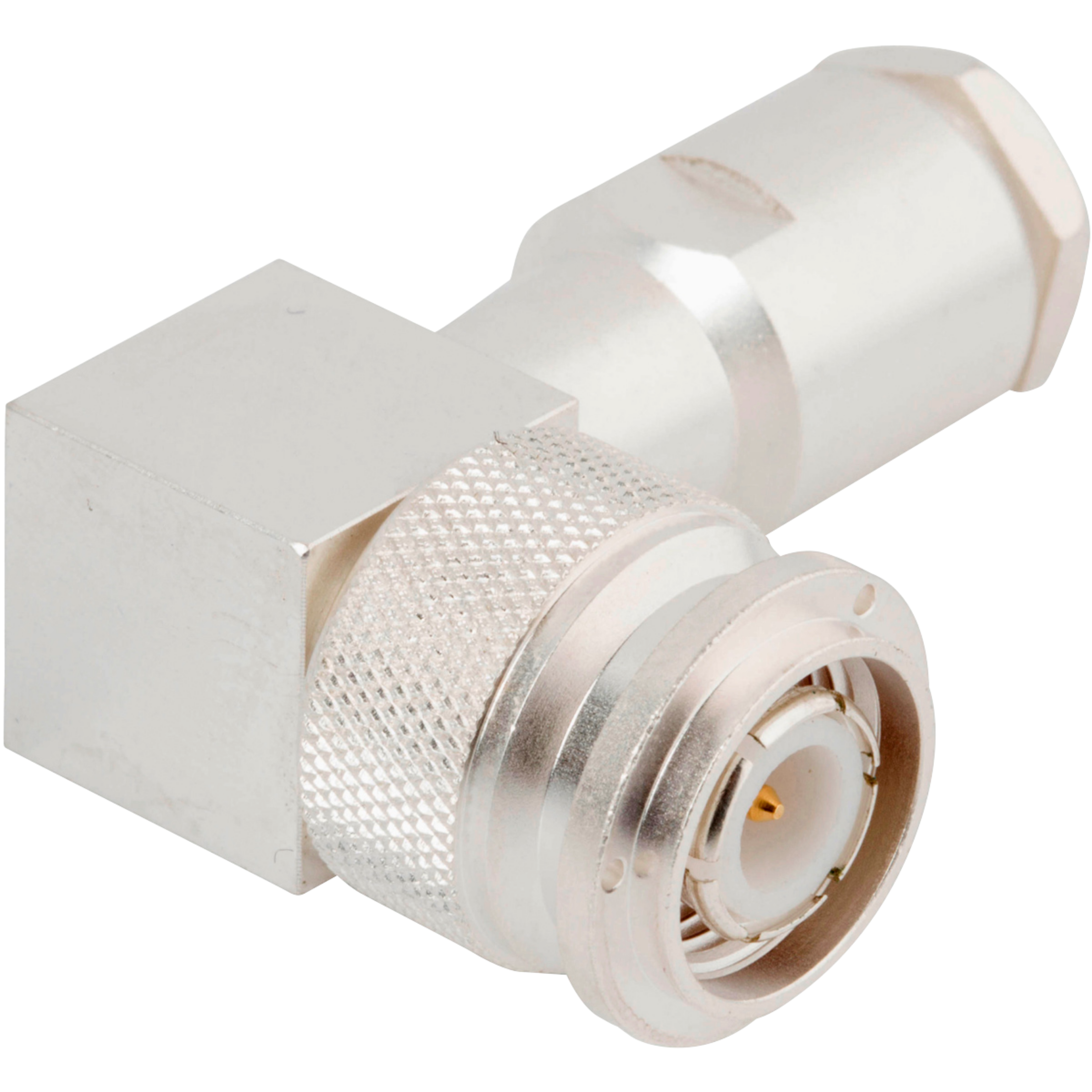

TNC Male Cable Connector, Lockwire Holes, R/A for RG-58 Cable
