P/N: 1621-60008

2.4mm Female PCB Edge Launch Connector, .062" PCB Thickness

In stock at Qty Order
TTI Inc Global Headquarters 99
Digi-Key Electronics 51
Mouser Electronics 50
Heilind Electronics 5
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Mounting Type PCB Edge Launch
Frequency 50 GHz
Impedance 50 ohms
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Mounting Type PCB Edge Launch
Frequency 50 GHz
Impedance 50 ohms
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1521-60125

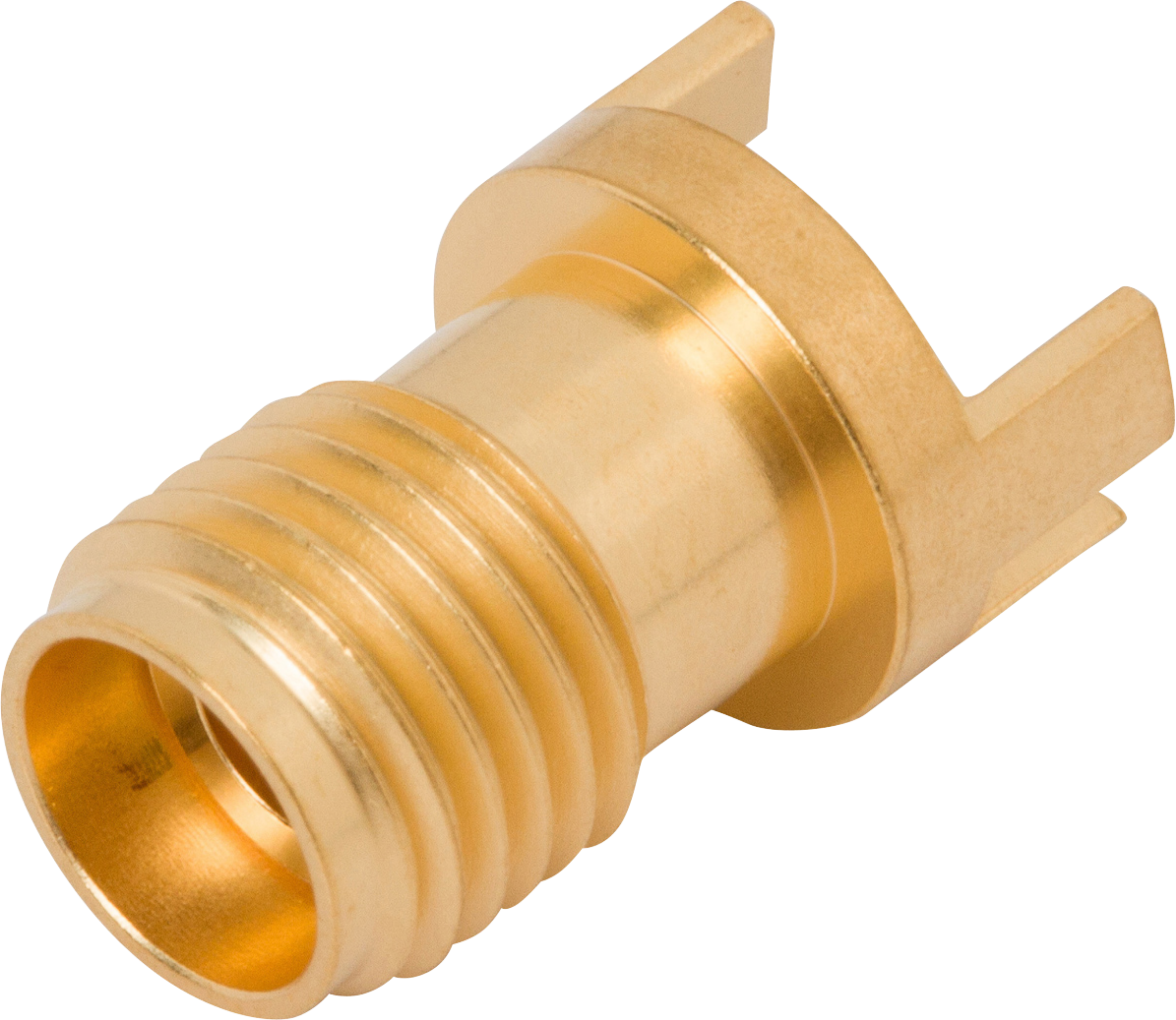

2.92mm Female PCB Edge Launch Connector, .093" PCB Thickness"

Available Inventory: 3
1521-60125
2.92mm Connectors 1521-60125
Datasheet
Part #   1621-60050

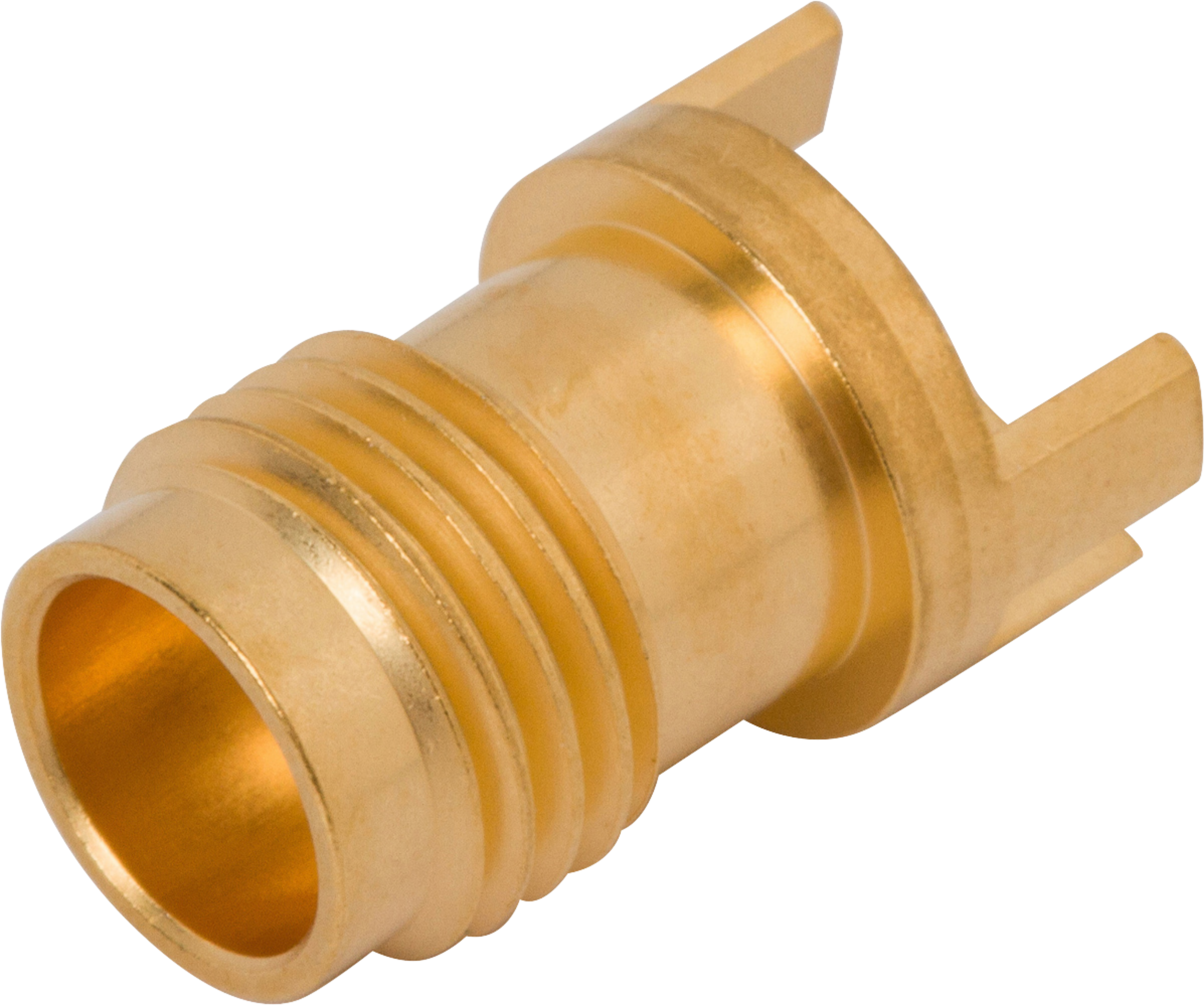

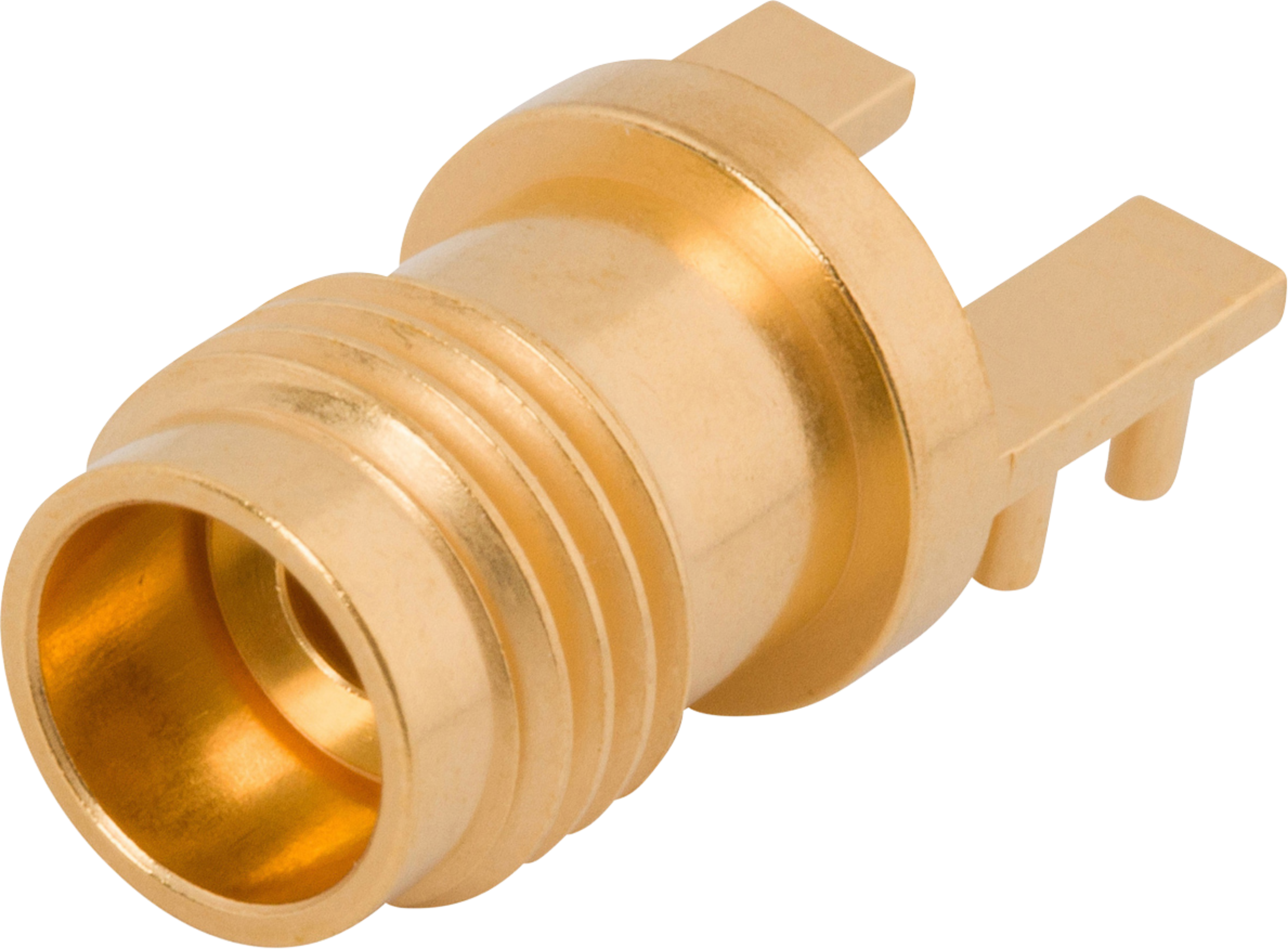

2.4mm Female PCB Edge Launch Connector, 4 Legs
