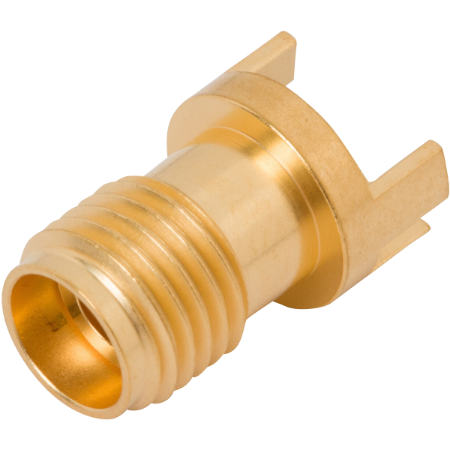

2.92mm Female PCB Edge Launch Connector, .062" PCB Thickness"
P/N: 1521-60051

In stock at Qty Order
TTI Inc Global Headquarters 912
Digi-Key Electronics 837
Farnell 281
Mouser Electronics 150
Newark 50
Electro Enterprises Inc 35
Master Electronics 30
Interstate Connecting Components 24
Heilind Electronics 8
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/1/2022 1:07:18 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Customers Also Viewed
Part #   1621-60008

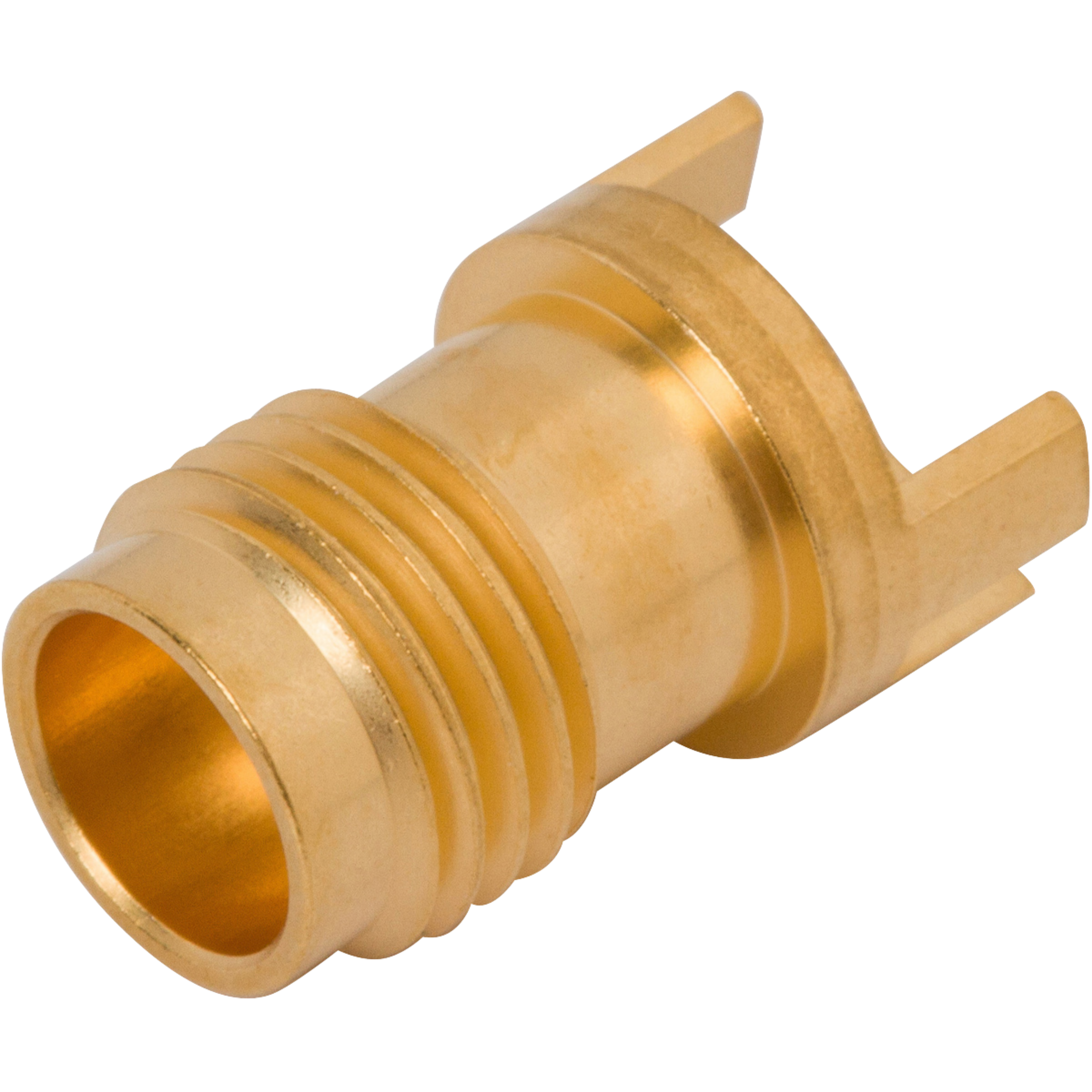

2.4mm Female PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 37
1621-60008
2.4mm Connectors 1621-60008
Datasheet
Part #   1521-00002

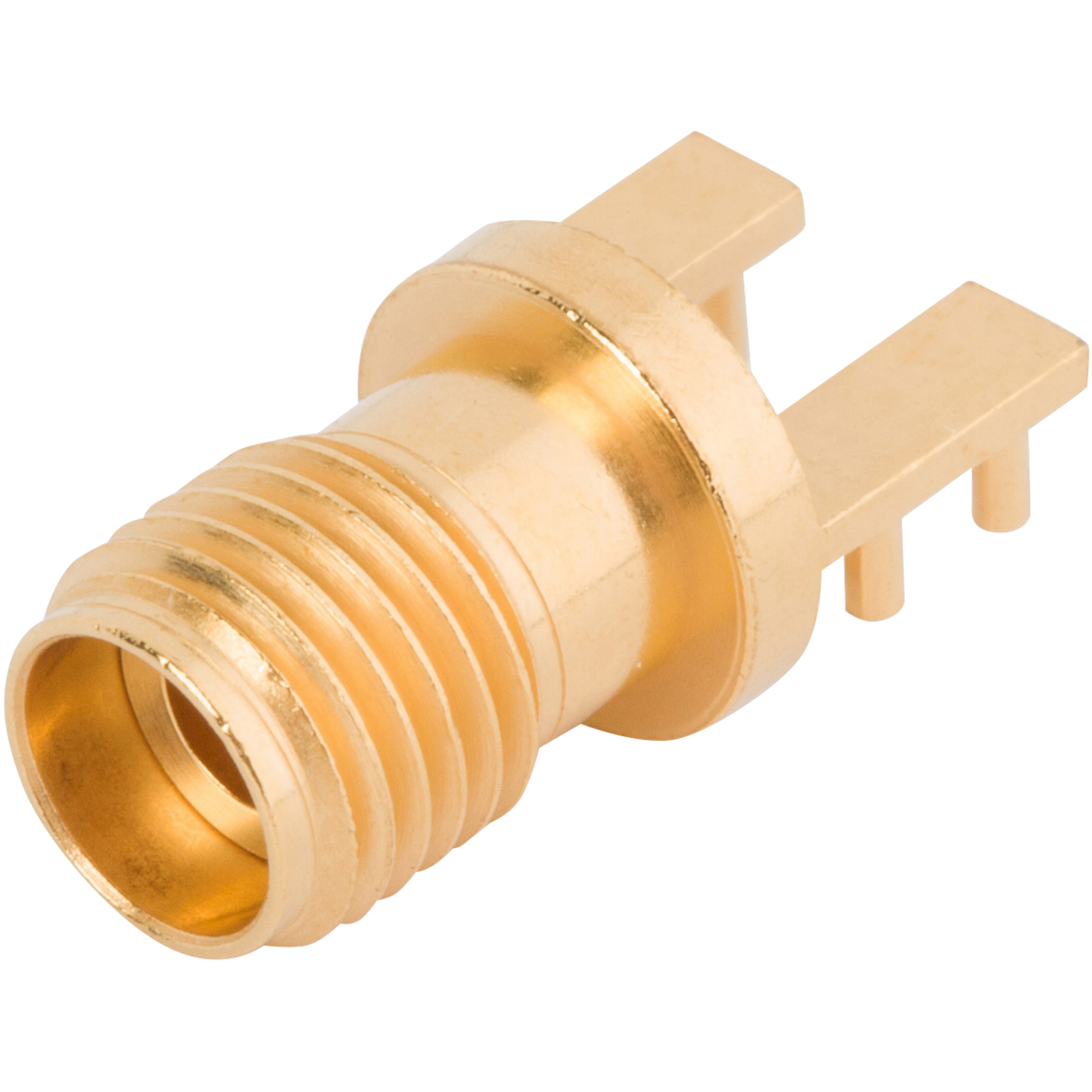

2.92mm Female PCB Edge Launch Connector, 4 Leg

Available Inventory: 1234
1521-00002
2.92mm Connectors 1521-00002
Datasheet
Part #   1521-60125

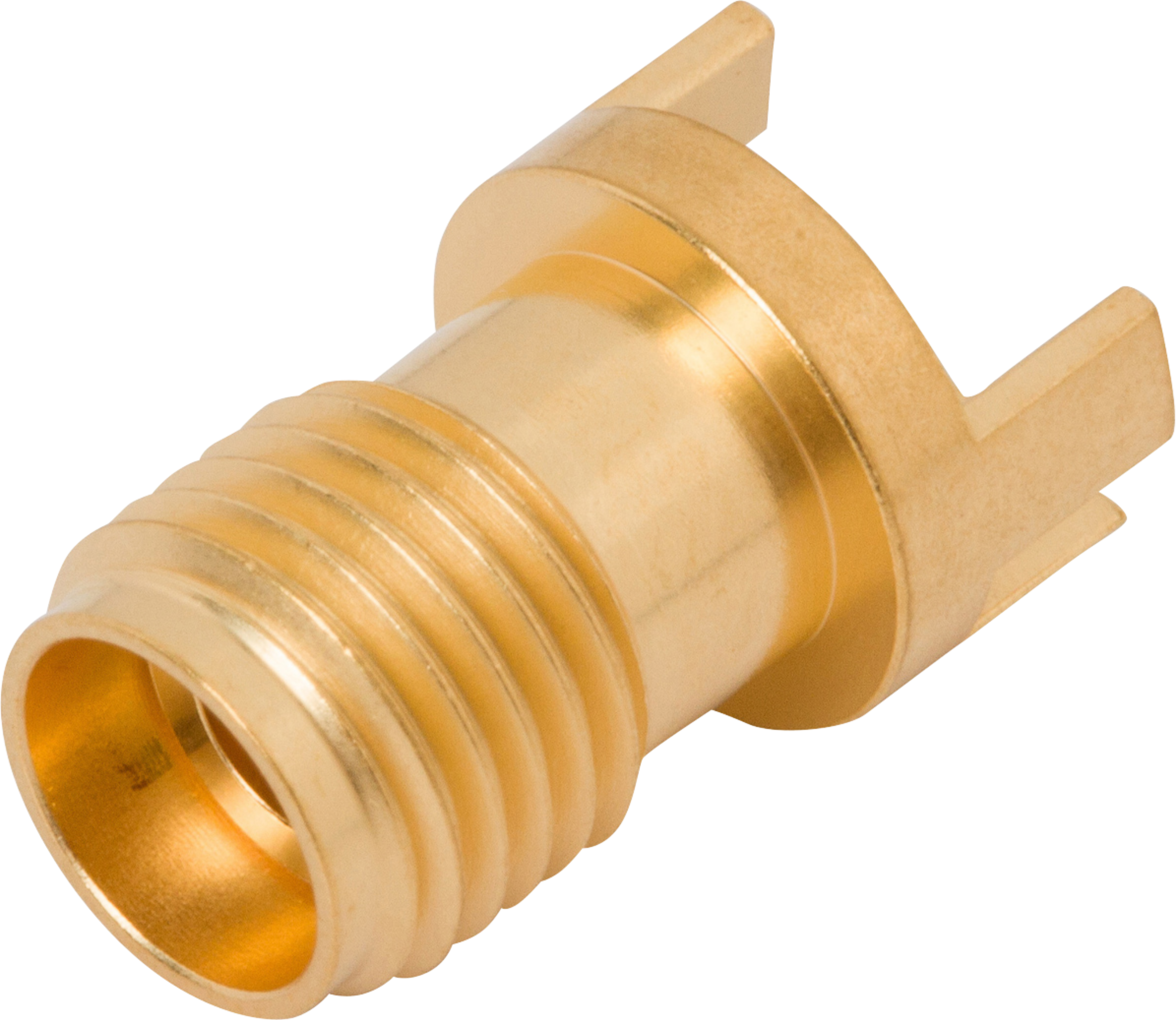

2.92mm Female PCB Edge Launch Connector, .093" PCB Thickness"
