P/N: SF3321-60024-2S

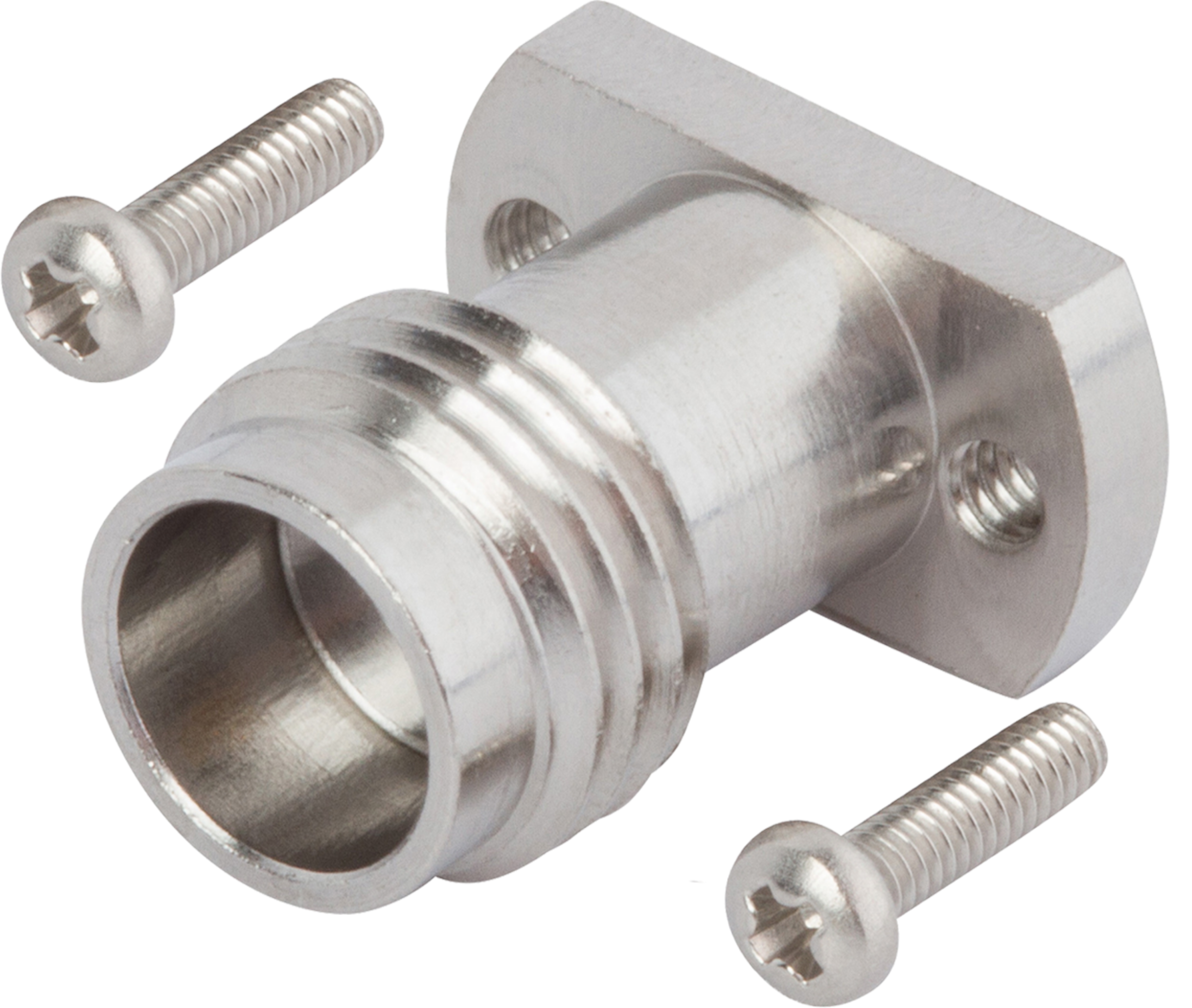

1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 49
Mouser Electronics 35
Newark 21
Arrow Electronics Inc 18
Farnell 5
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Frequency 65 GHz
Termination Style Solder-free
Finish Passivated
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Frequency 65 GHz
Termination Style Solder-free
Finish Passivated
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
SF3321-60018-2S
1.85mm Connectors SF3321-60018-2S
Datasheet
SF3321-60024-1S
1.85mm Connectors SF3321-60024-1S
Datasheet

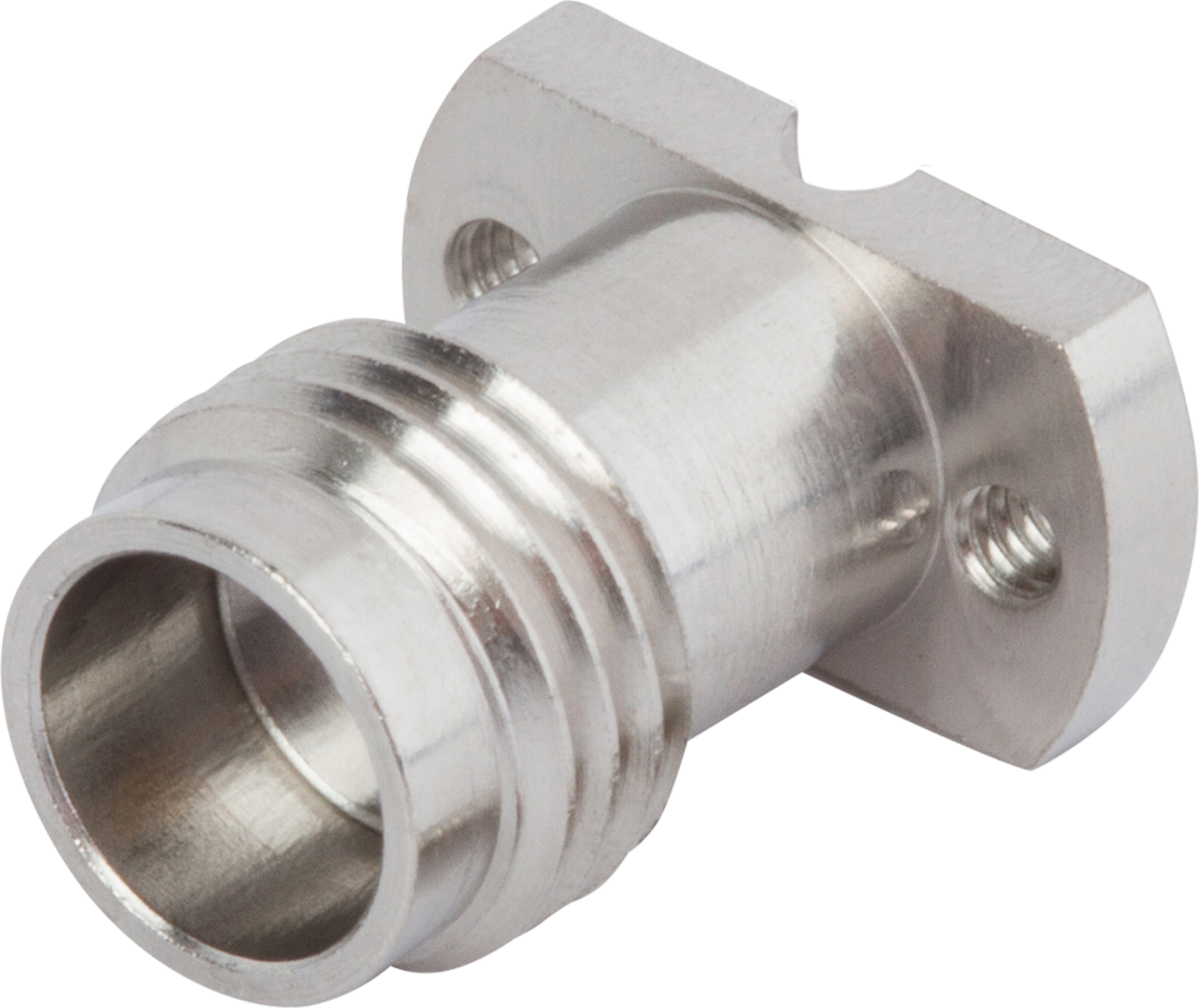

SF3321-60024
