P/N: SF3321-60024

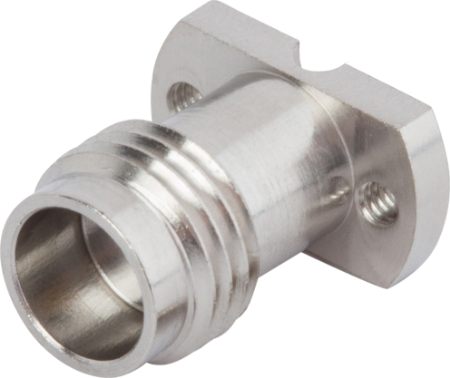

1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 80
Mouser Electronics 35
Arrow Electronics Inc 18
Farnell 11
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Frequency 65 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.4mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Frequency 65 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.4mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
SF3321-60018
1.85mm Connectors SF3321-60018
Datasheet
SF3321-60024-1S
1.85mm Connectors SF3321-60024-1S
Datasheet

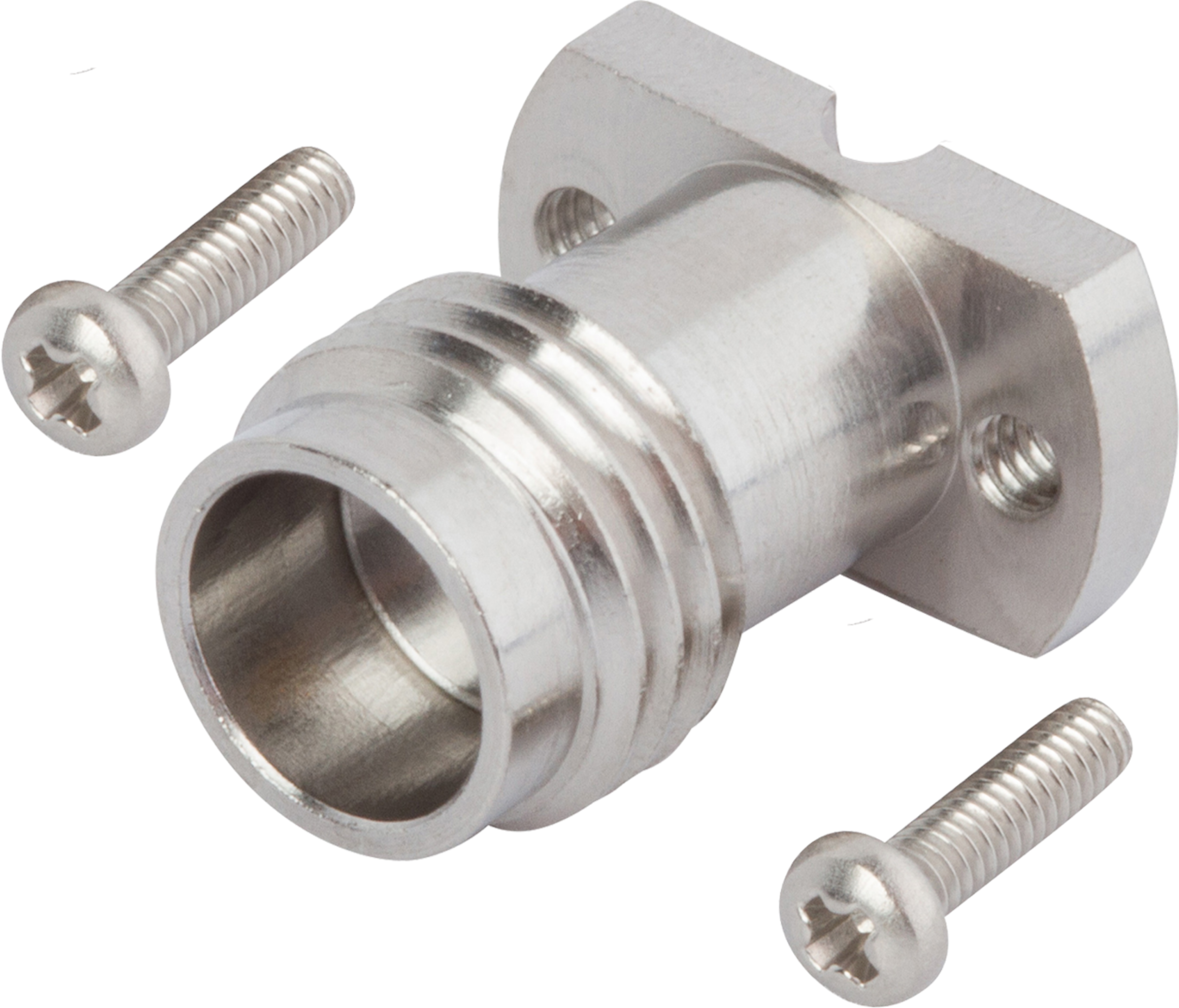

SF3321-60024-2S
