P/N: 1521-60125

2.92mm Female PCB Edge Launch Connector, .093" PCB Thickness"

In stock at Qty Order
TTI Inc Global Headquarters 3
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Electrical
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Electrical
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1521-60051

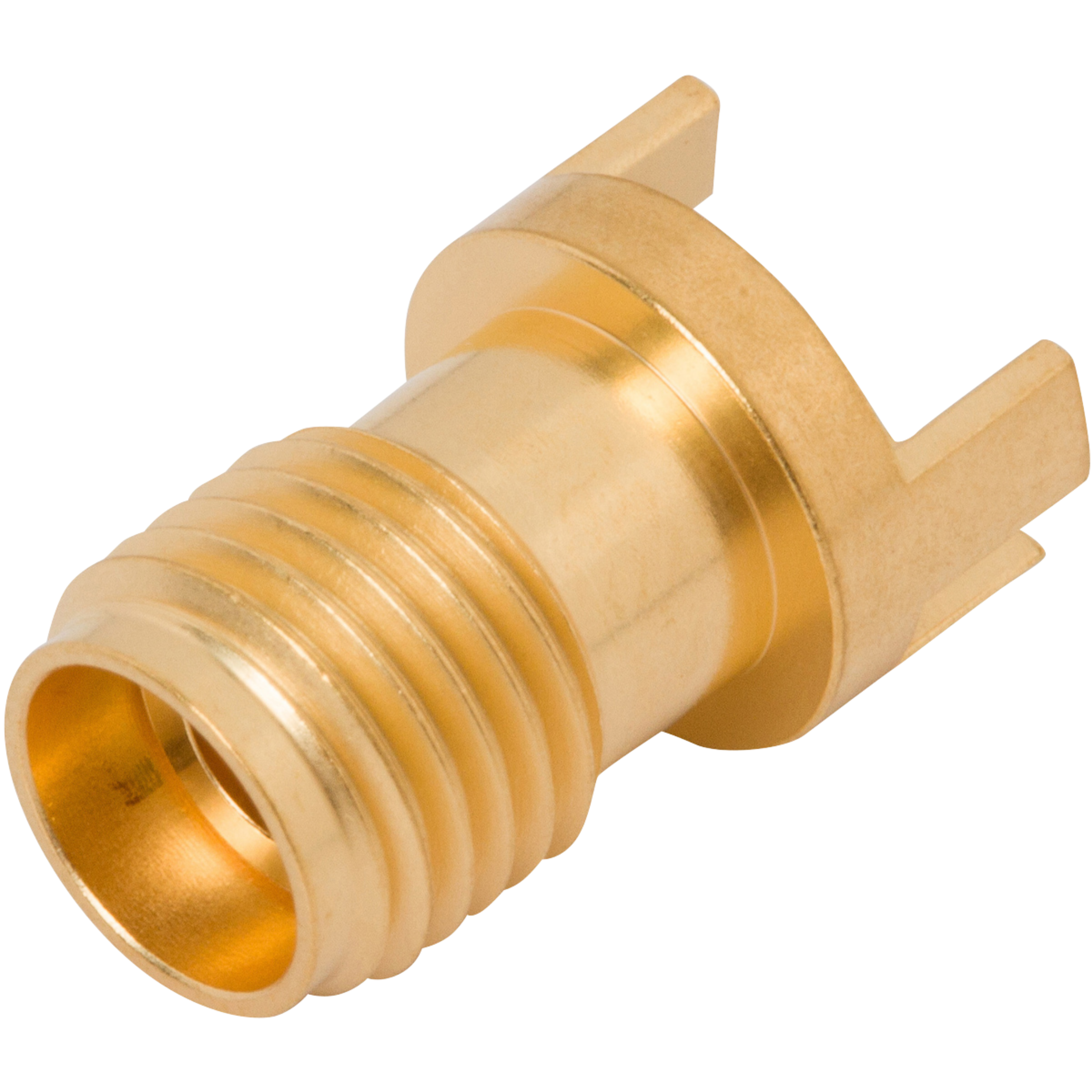

2.92mm Female PCB Edge Launch Connector, .062" PCB Thickness"

Available Inventory: 1965
1521-60051
2.92mm Connectors 1521-60051
Datasheet
Part #   1521-00002

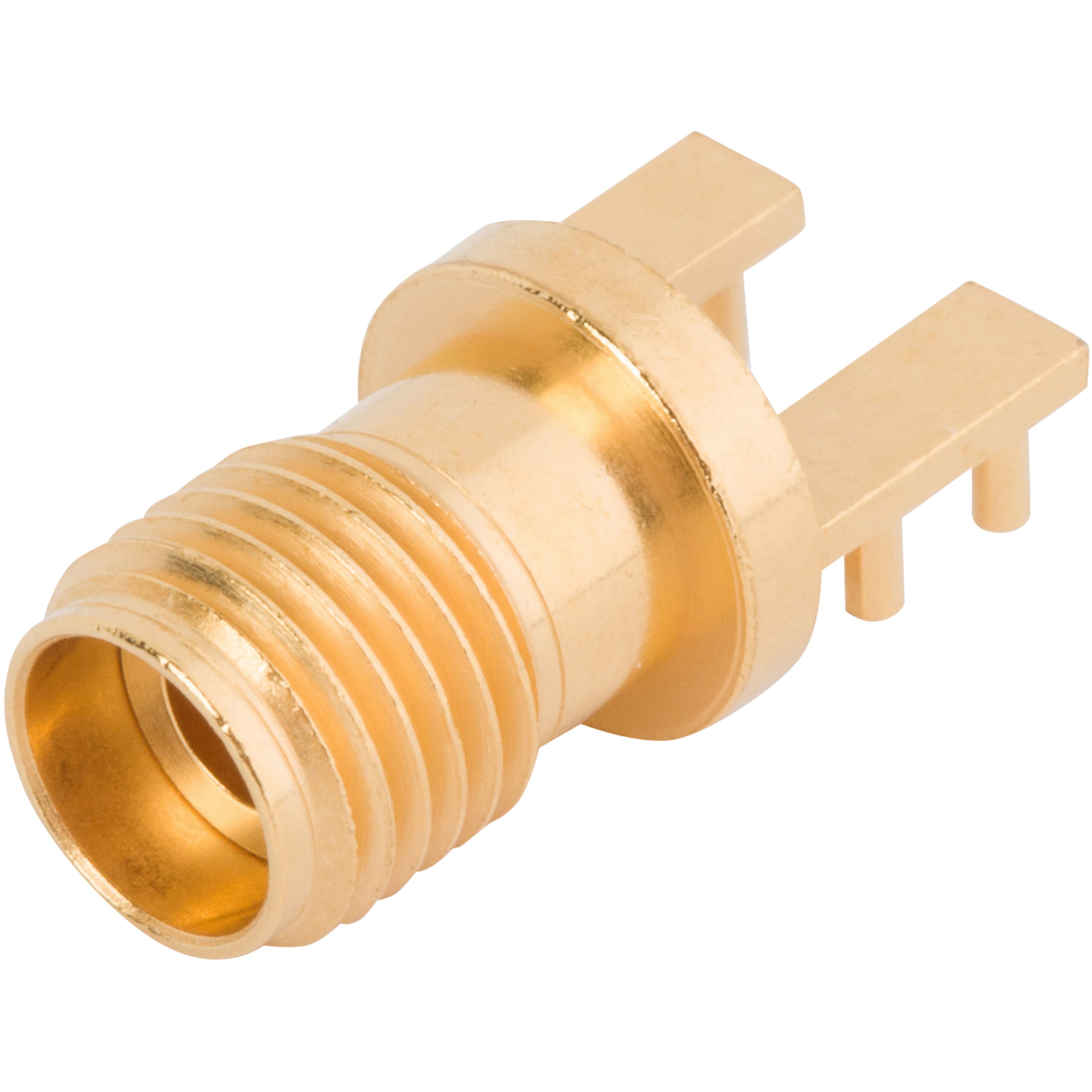

2.92mm Female PCB Edge Launch Connector, 4 Leg

Available Inventory: 1078
1521-00002
2.92mm Connectors 1521-00002
Datasheet
Part #   1621-60051

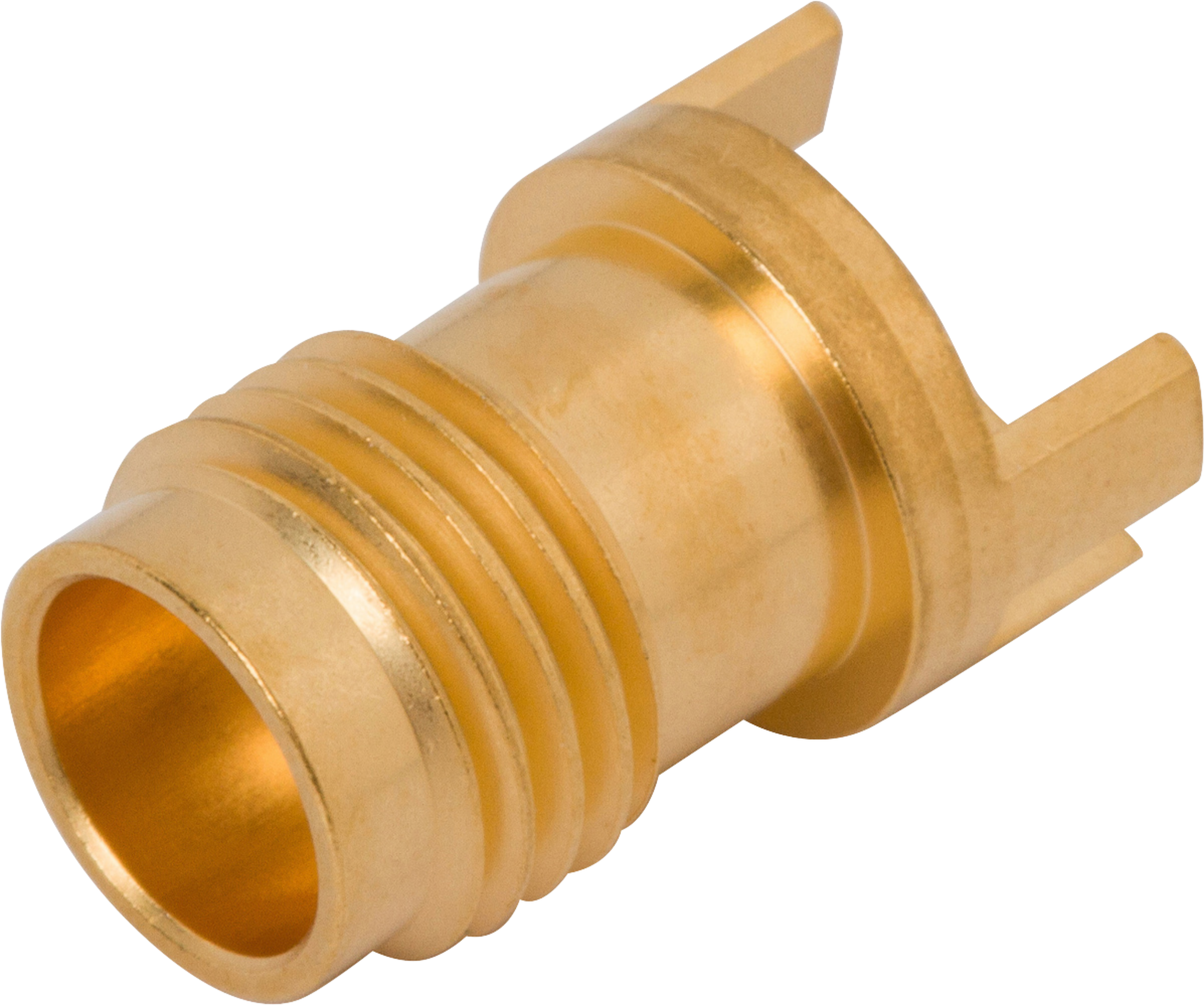

2.4mm Female PCB Edge Launch Connector, .093" PCB Thickness"
