P/N: 1621-00002

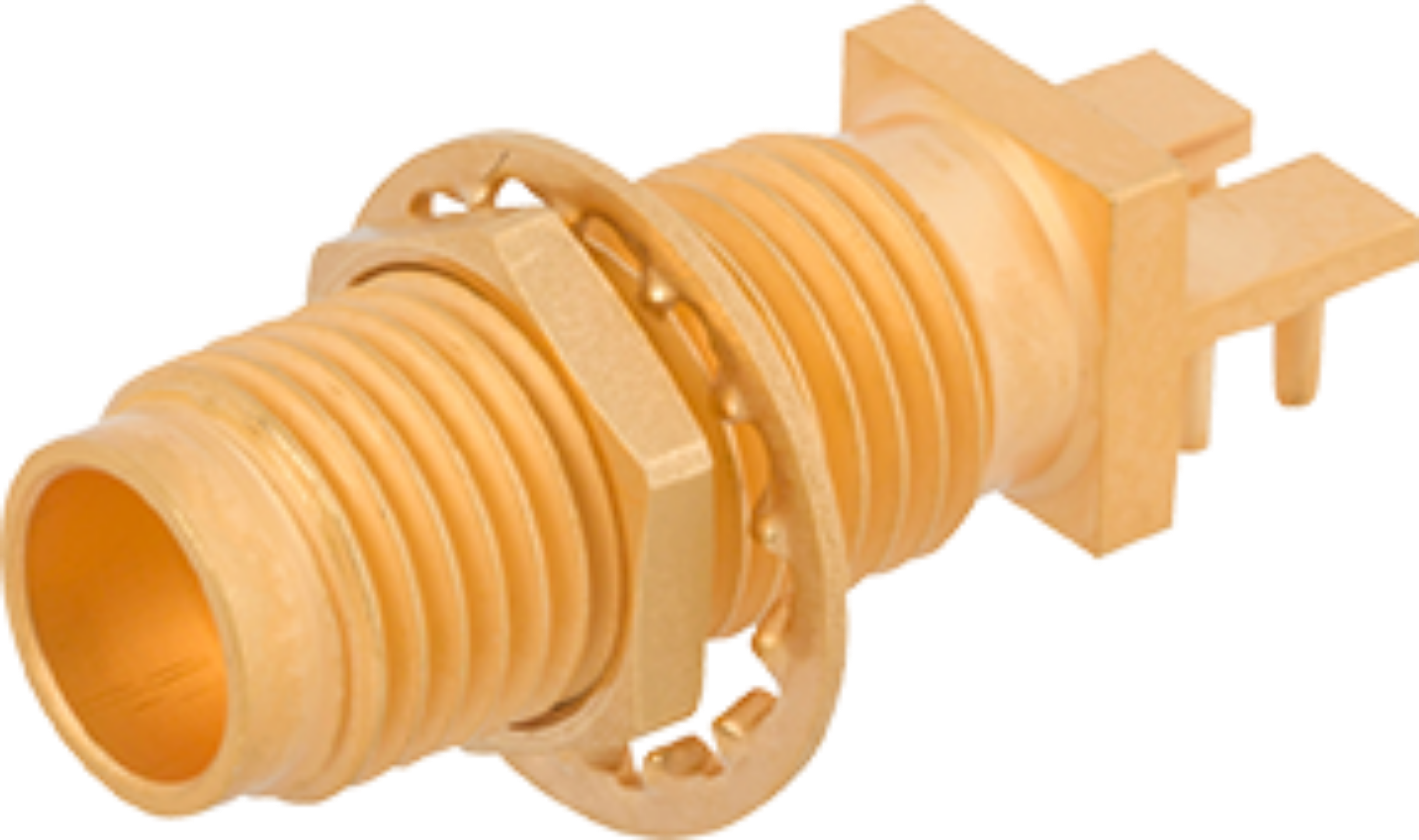

2.4mm Female Bulkhead PCB Edge Launch Connector, 4 Leg

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Mounting Type PCB Edge Launch
Gender Jack (Female)
Termination Style Solder
Coupling Threaded
Orientation (Body) Straight
Impedance 50 ohms
Frequency 50 GHz
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
