P/N: SF1611-60018

2.4mm Male Solderless PCB Edge Launch Connector, 2 Hole

In stock at Qty Order
TTI Inc Global Headquarters 25
Digi-Key Electronics 25
Mouser Electronics 21
Farnell 15
Products specifications
Attribute name Attribute value
Family Solderless
Gender Plug (Male)
RF Series 2.4 mm
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Impedance 50 ohms
Frequency 50 GHz
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
Gender Plug (Male)
RF Series 2.4 mm
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Impedance 50 ohms
Frequency 50 GHz
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1621-60036

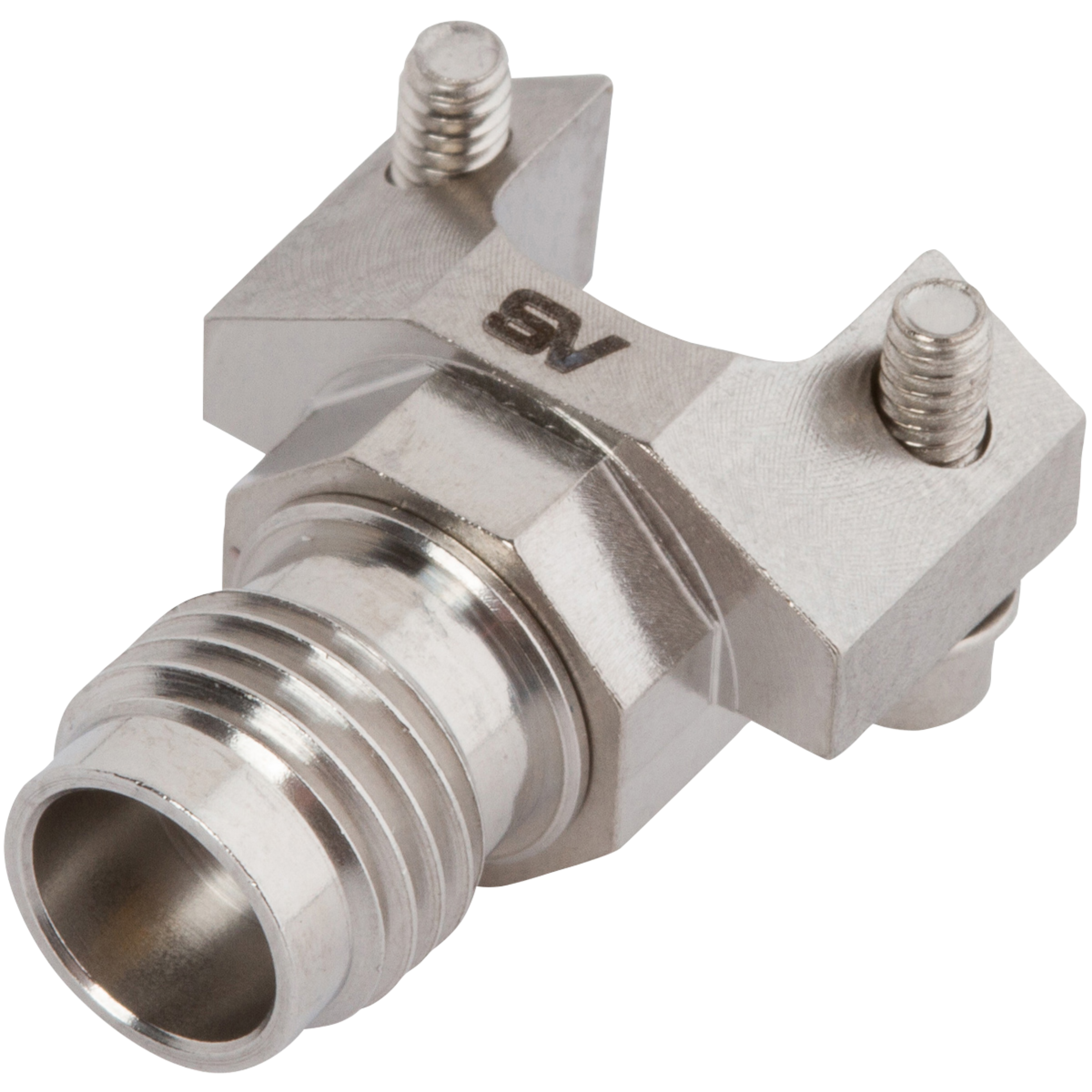

2.4mm Female Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 195
SF1621-60036
2.4mm Connectors SF1621-60036
Datasheet
Part #   SF1511-60111

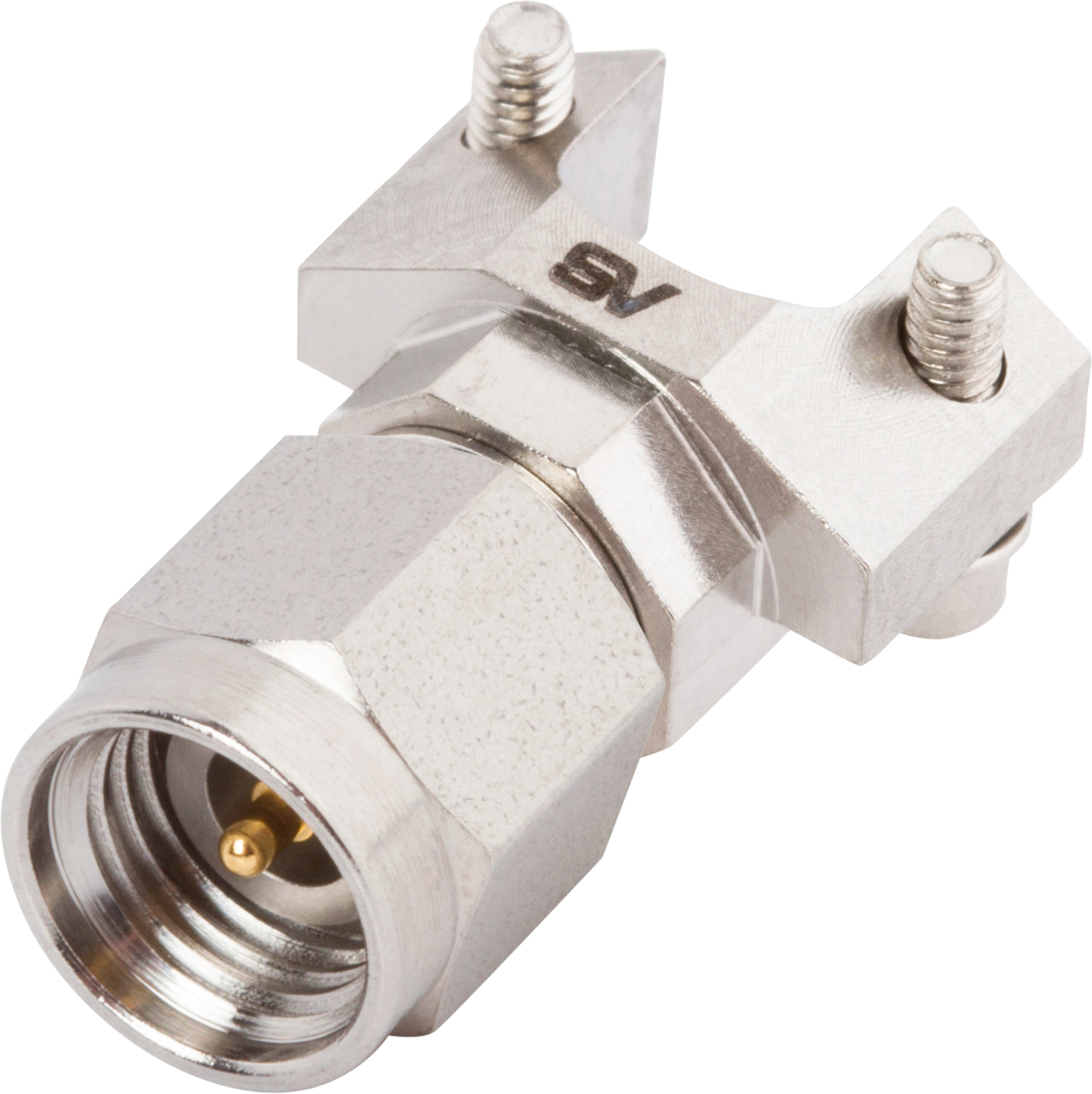

2.92mm Male Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 83
SF1511-60111
2.92mm Connectors SF1511-60111
Datasheet
Part #   SF3311-60012

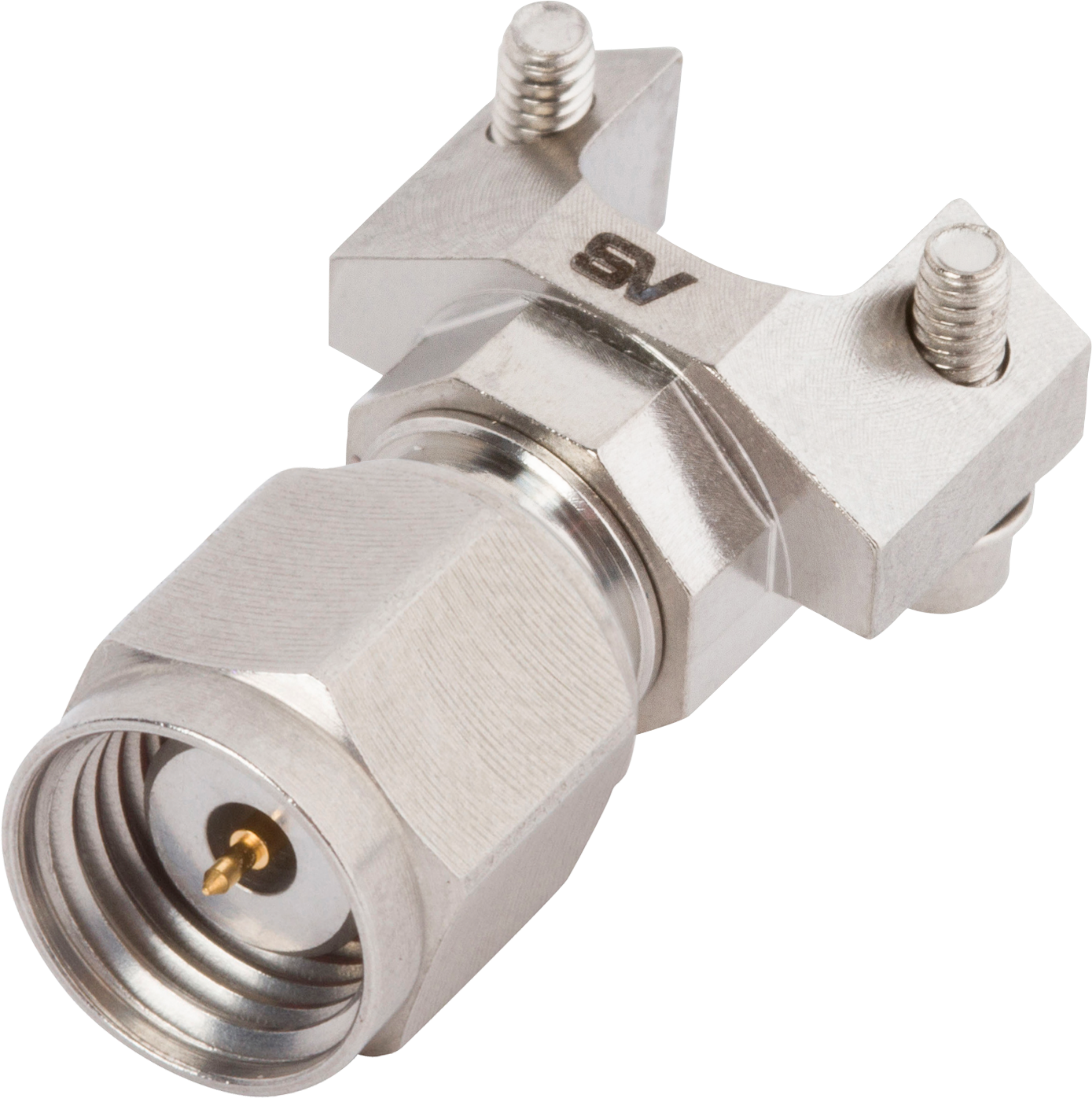

1.85mm Male Solderless PCB Edge Launch Connector, 2 Hole
