P/N: SF1611-60021-2S

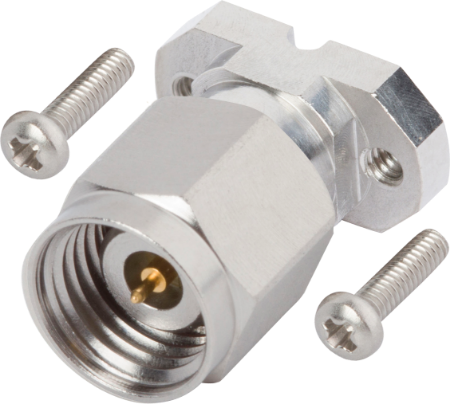

2.4mm Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 100
Farnell 100
Mouser Electronics 98
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 50 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
