P/N: 1521-00005

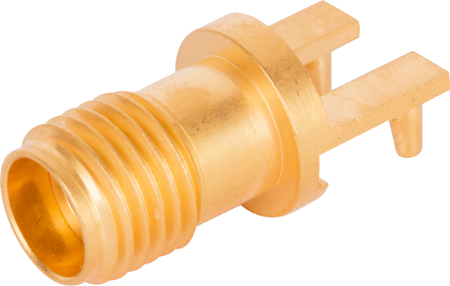

2.92mm Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness"

In stock at Qty Order
Digi-Key Electronics 45
Farnell 25
Mouser Electronics 7
Products specifications
Attribute name Attribute value
Family Edge Lock
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Mounting Type PCB Edge Launch
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Edge Lock
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Mounting Type PCB Edge Launch
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   1521-00002

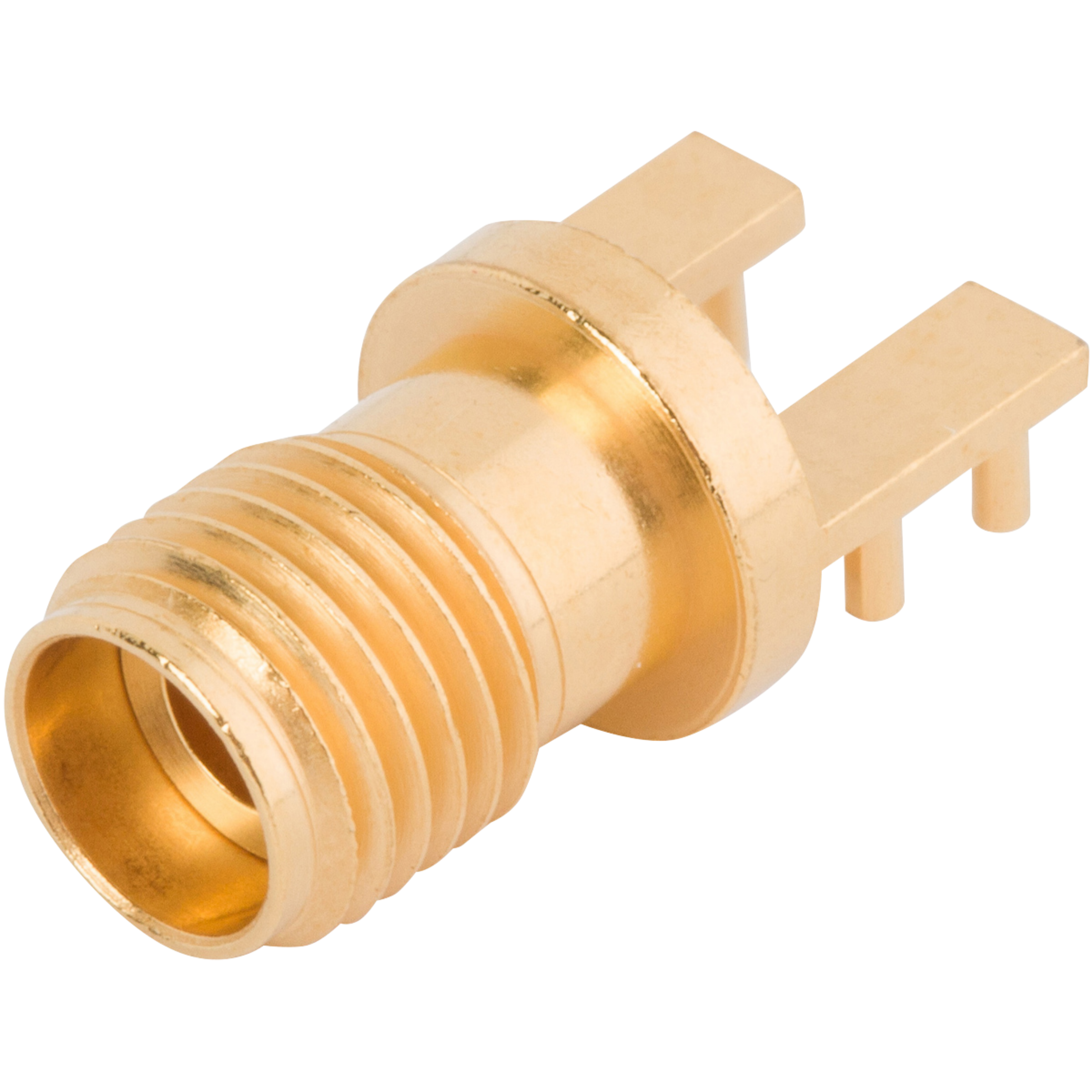

2.92mm Female PCB Edge Launch Connector, 4 Leg

Available Inventory: 1078
1521-00002
2.92mm Connectors 1521-00002
Datasheet
Part #   1521-60125

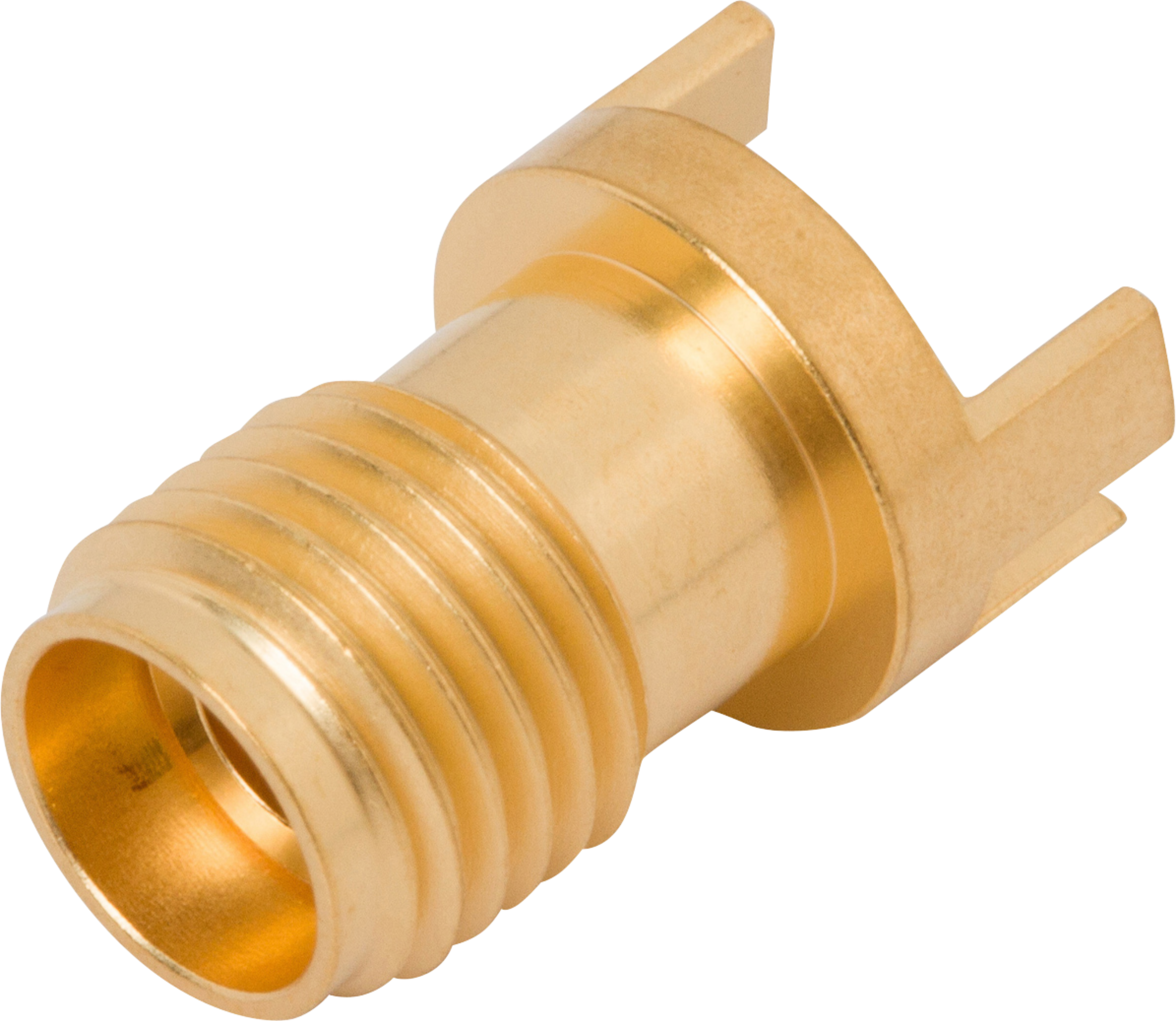

2.92mm Female PCB Edge Launch Connector, .093" PCB Thickness"

Available Inventory: 3
1521-60125
2.92mm Connectors 1521-60125
Datasheet
Part #   2921-00037

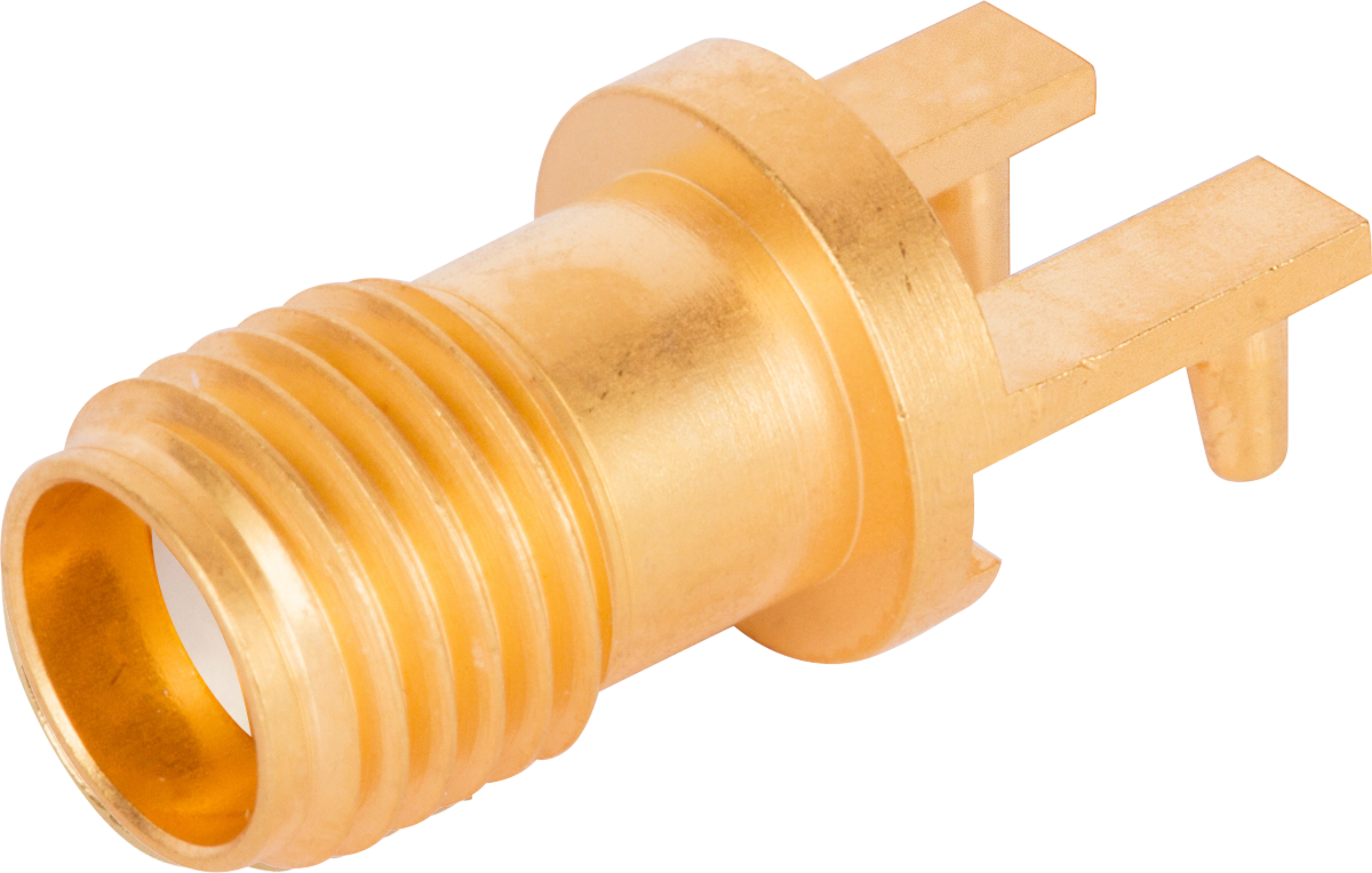

SMA Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness"
