2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)
P/N: SF1521-60124

In stock at Qty Order
Newark 50
Farnell 50
Mouser Electronics 47
Digi-Key Electronics 22
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Family LiteTouch
Body Style 2 Hole
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 1/31/2023 1:08:30 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Family LiteTouch
Body Style 2 Hole
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF2921-61507

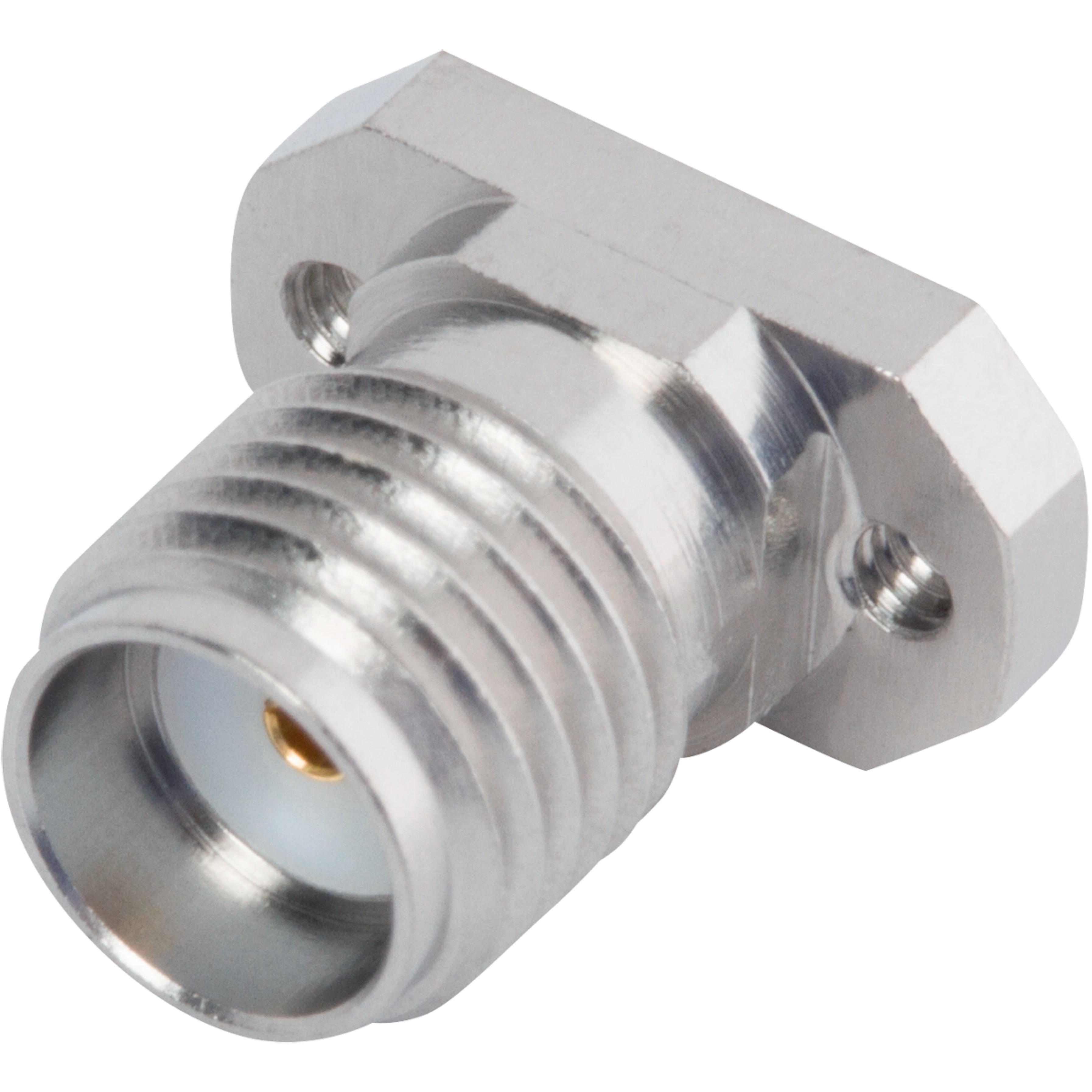

SMA Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 492
SF2921-61507
SMA Connectors SF2921-61507
Datasheet
Part #   SF1521-60115

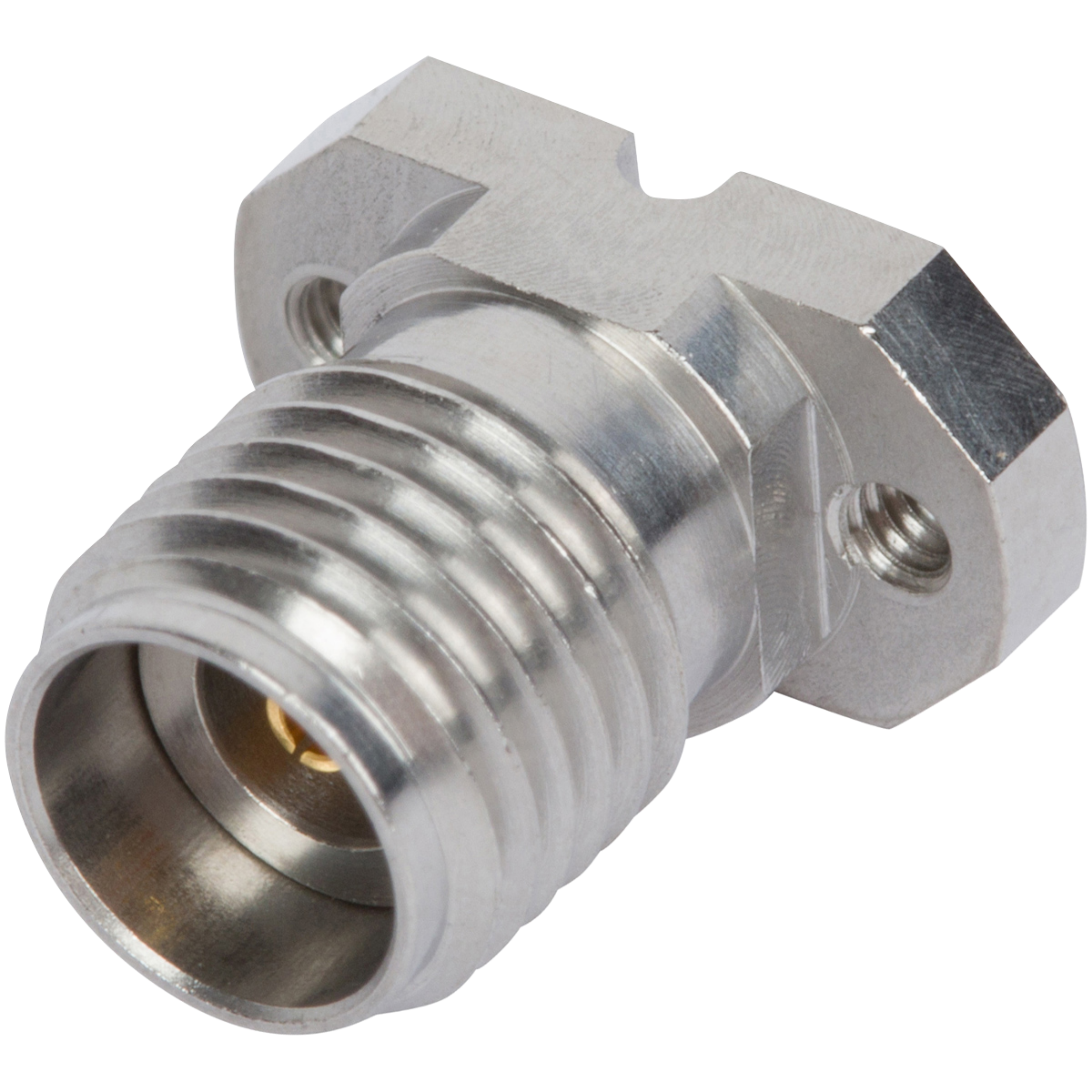

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 575
SF1521-60115
2.92mm Connectors SF1521-60115
Datasheet

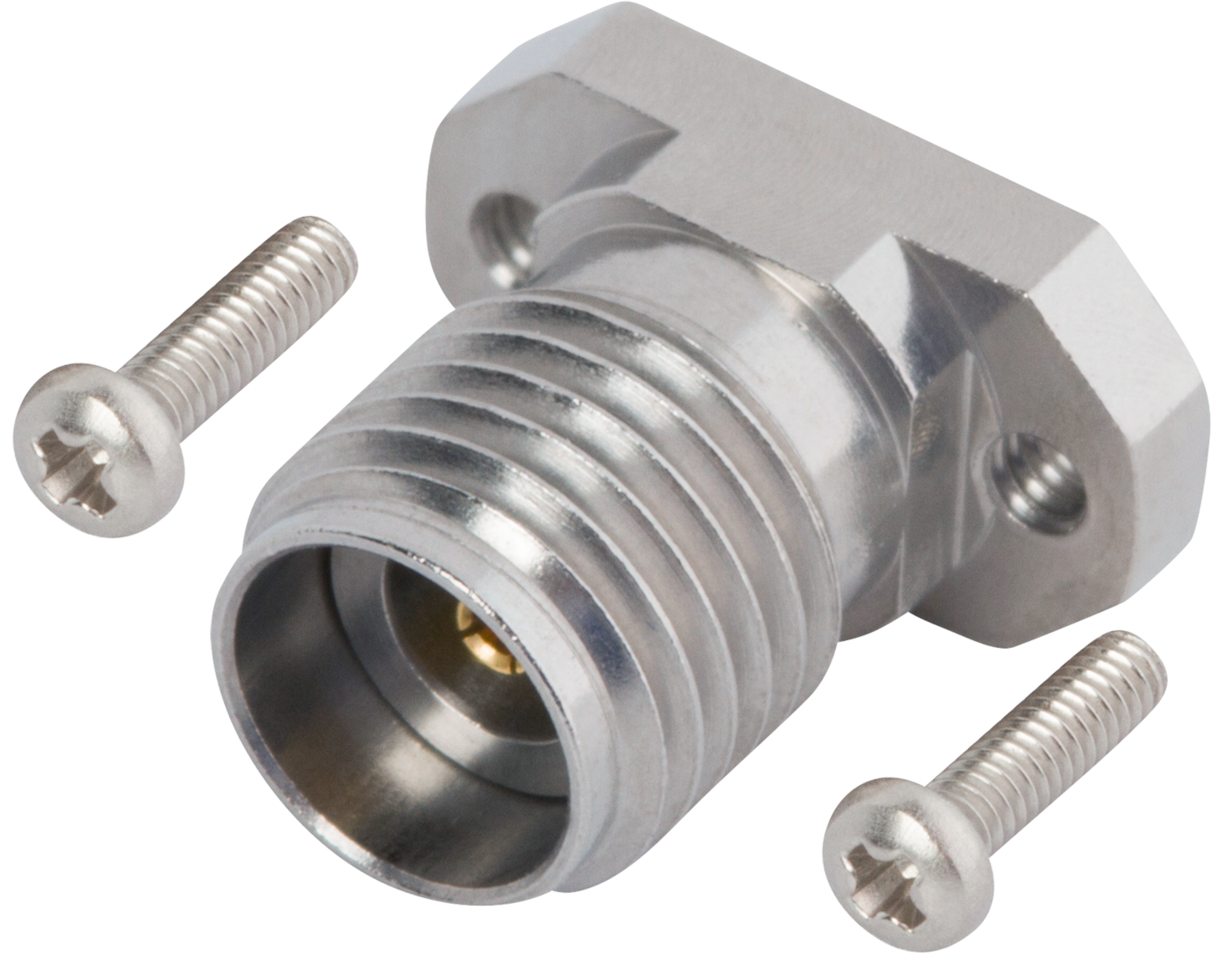

SF1521-60124-1S
